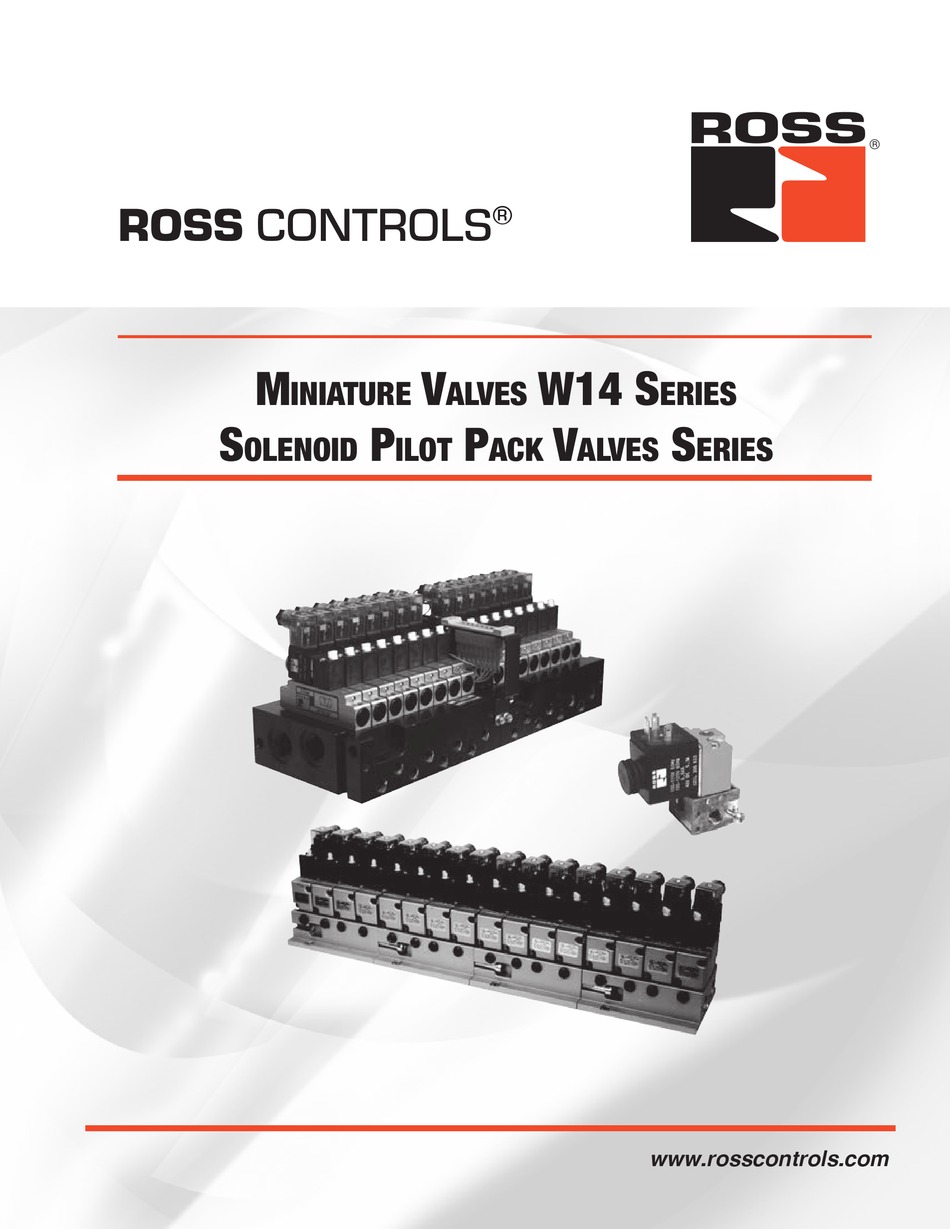

- Page 1 ROSS CONTROLS ® W14 s iniature alVes eries olenoid ilot alVes eries www.rosscontrols.com...
- Page 2 SOLENOID PILOT CONTROLLED PACK VALVES – KEY FEATURES • Individual Valve Shut-off (automatic): increases uptime for continuous processing • Sure-Shifting and Self-Cleaning: reliable performance in extreme conditions (dirt tolerant, high humidity, cold, heat, dust, debris returned from the field actuator, etc...) •...
- Page 3 Solenoid Pilot Controlled Miniature Valves W14 Series 3-Way 2-Position Valves, Single Direct Solenoid, Spring Return Override Type Valve Model Number* Locking W1413A1408** 3/2 Normally Closed Non-Locking W1413A1409** Sub-bases and sub-base manifold ordered separately. Insert voltage code: “W” = 24 volts DC; “Z” = 110-120 volts AC, 50/60 Hz; e.g., W1413A1408W. For other voltages, consult ROSS.
- Page 4 Inlet Pressure: 30 to 150 psig (2 to 10 bar). IMPORTANT NOTE: CAUTIONS, WARNINGS Please read carefully and thoroughly all of the on the inside back cover. Online Version A7.4 © 2016, ROSS CONTROLS . All Rights Reserved. ® Rev. 11/14/16...
- Page 5 Pack Series 3-Way Solenoid Pilot Controlled Pack Valves 3-Way 2-Position Valves - Extended-Duty, Single Solenoid Pilot Controlled Model Number Valve/Manifold Assembly Flying Leads Central Wiring 8 Station 3900A0713-1** 3900A1055-1** 16 Station 3900A0713-2** 3900A1055-2** 24 Station and over consult ROSS consult ROSS Insert voltage code: “W”...
- Page 6 Order Placement For order placement, consult ROSS or your local ROSS distributor. For a current list of countries and local distributors, visit ROSS’ website at www.rosscontrols.com. Online Version © 2016, ROSS CONTROLS ® . Content subject to change. Rev. 11/14/16...
- Page 7 When bowl gets dirty, replace it or wipe it with a clean dry cloth. All products sold by ROSS CONTROLS are warranted for a one-year period [with the exception of all Filters, Regulators and Lubricators (“FRLs”) which are...
