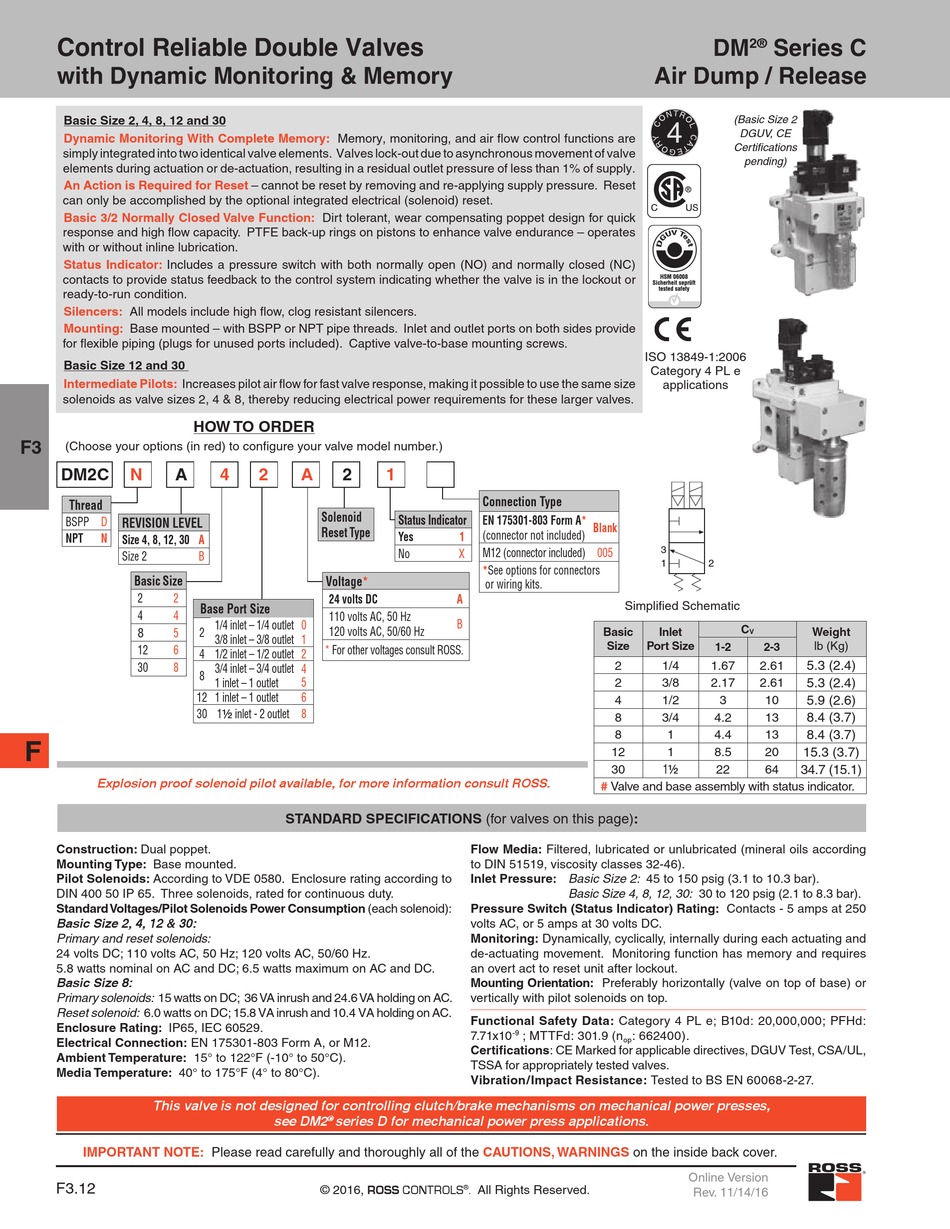

Ross Controls DM2C Series Manual

Control Reliable Double Valves
with Dynamic Monitoring & Memory
Basic Size 2, 4, 8, 12 and 30

Dynamic Monitoring With Complete Memory:

simply integrated into two identical valve elements. Valves lock-out due to asynchronous movement of valve
elements during actuation or de-actuation, resulting in a residual outlet pressure of less than 1% of supply.
An Action is Required for Reset
can only be accomplished by the optional integrated electrical (solenoid) reset.

Basic 3/2 Normally Closed Valve Function:

response and high flow capacity. PTFE back-up rings on pistons to enhance valve endurance – operates
with or without inline lubrication.
Status Indicator: Includes a pressure switch with both normally open (NO) and normally closed (NC)
contacts to provide status feedback to the control system indicating whether the valve is in the lockout or
ready-to-run condition.

Silencers:

All models include high flow, clog resistant silencers.

Mounting:

Base mounted – with BSPP or NPT pipe threads. Inlet and outlet ports on both sides provide
for flexible piping (plugs for unused ports included). Captive valve-to-base mounting screws.
Basic Size 12 and 30

Intermediate Pilots:

Increases pilot air flow for fast valve response, making it possible to use the same size
solenoids as valve sizes 2, 4 & 8, thereby reducing electrical power requirements for these larger valves.

HOW TO ORDER

F3
(Choose your options (in red) to configure your valve model number.)
DM2C N A
Thread
BSPP D REVISION LEVEL
NPT N
Size 4, 8, 12, 30 A
Size 2 B
Basic Size
2 2
4 4
2
8 5
12 6
4 1/2 inlet – 1/2 outlet
30 8
8
12 1 inlet – 1 outlet
30 11/2 inlet - 2 outlet
F
Explosion proof solenoid pilot available, for more information consult ROSS.
Construction: Dual poppet.
Mounting Type: Base mounted.
Pilot Solenoids: According to VDE 0580. Enclosure rating according to
DIN 400 50 IP 65. Three solenoids, rated for continuous duty.
Standard Voltages/Pilot Solenoids Power Consumption (each solenoid):
Basic Size 2, 4, 12 & 30:
Primary and reset solenoids:
24 volts DC; 110 volts AC, 50 Hz; 120 volts AC, 50/60 Hz.
5.8 watts nominal on AC and DC; 6.5 watts maximum on AC and DC.
Basic Size 8:
Primary solenoids: 15 watts on DC; 36 VA inrush and 24.6 VA holding on AC.
Reset solenoid: 6.0 watts on DC; 15.8 VA inrush and 10.4 VA holding on AC.
Enclosure Rating: IP65, IEC 60529.
Electrical Connection: EN 175301-803 Form A, or M12.
Ambient Temperature: 15° to 122°F (-10° to 50°C).
Media Temperature: 40° to 175°F (4° to 80°C).
This valve is not designed for controlling clutch/brake mechanisms on mechanical power presses,
IMPORTANT NOTE:
F3.12
Memory, monitoring, and air flow control functions are
– cannot be reset by removing and re-applying supply pressure. Reset
Dirt tolerant, wear compensating poppet design for quick
4 2 A 2
Solenoid
Reset Type
Voltage*
24 volts DC
Base Port Size
110 volts AC, 50 Hz
1/4 inlet – 1/4 outlet 0
120 volts AC, 50/60 Hz
3/8 inlet – 3/8 outlet 1
* For other voltages consult ROSS.
2
3/4 inlet – 3/4 outlet
4
5
1 inlet – 1 outlet
6
8
STANDARD SPECIFICATIONS (for valves on this page):
see DM2 series D for mechanical power press applications.
®
Please read carefully and thoroughly all of the
© 2016, ROSS CONTROLS
1
Connection Type
Status Indicator
EN 175301-803 Form
(connector not included)
Yes 1
M12 (connector included)
No X
*See options for connectors
or wiring kits.
A
B
Flow Media: Filtered, lubricated or unlubricated (mineral oils according
to DIN 51519, viscosity classes 32-46).
Inlet Pressure: Basic Size 2: 45 to 150 psig (3.1 to 10.3 bar).
Pressure Switch (Status Indicator) Rating: Contacts - 5 amps at 250
volts AC, or 5 amps at 30 volts DC.
Monitoring: Dynamically, cyclically, internally during each actuating and
de-actuating movement. Monitoring function has memory and requires
an overt act to reset unit after lockout.
Mounting Orientation: Preferably horizontally (valve on top of base) or
vertically with pilot solenoids on top.
Functional Safety Data: Category 4 PL e; B10d: 20,000,000; PFHd:
7.71x10 ; MTTFd: 301.9 (n
-9
Certifications: CE Marked for applicable directives, DGUV Test, CSA/UL,
TSSA for appropriately tested valves.
Vibration/Impact Resistance: Tested to BS EN 60068-2-27.
CAUTIONS, WARNINGS
. All Rights Reserved.
®
DM
Air Dump / Release
(Basic Size 2
4
DGUV, CE
Certifications
pending)
HSM 06008
Sicherheit seprüft
tested safety
ISO 13849-1:2006
Category 4 PL e
applications
A*
Blank
3
005
1 2
Simplified Schematic
C
Basic Inlet
Size Port Size
1-2
2 1/4 1.67
2 3/8 2.17
4 1/2 3
8 3/4 4.2
8 1 4.4
12 1 8.5
11/2
30 22
#

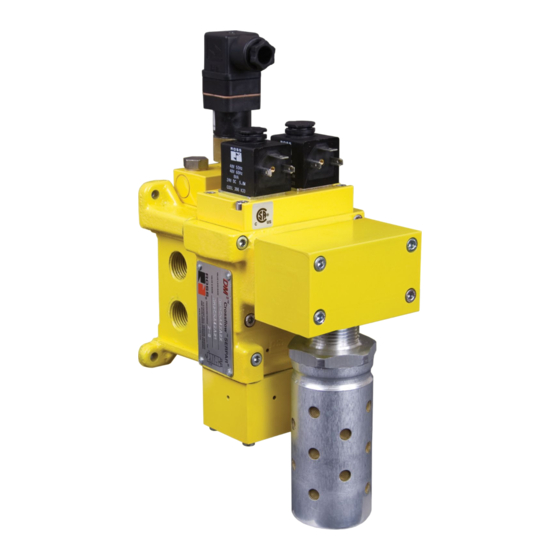

Valve and base assembly with status indicator.
Basic Size 4, 8, 12, 30: 30 to 120 psig (2.1 to 8.3 bar).
: 662400).
op
on the inside back cover.
Online Version
Rev. 11/14/16
Series C
2®
Weight
V
lb (Kg)
2-3
2.61 5.3 (2.4)
2.61 5.3 (2.4)
5.9 (2.6)
10
13 8.4 (3.7)
13 8.4 (3.7)
15.3 (3.7)
20
64 34.7 (15.1)
