Optimum
TM
Palladium and Verona Furniture, 2-Point
Installation Instructions
Application: Provides secure deadlocking for aluminium hinged
doors. Palladium Xtra furniture available with daylatch snib and
LockAlert features.

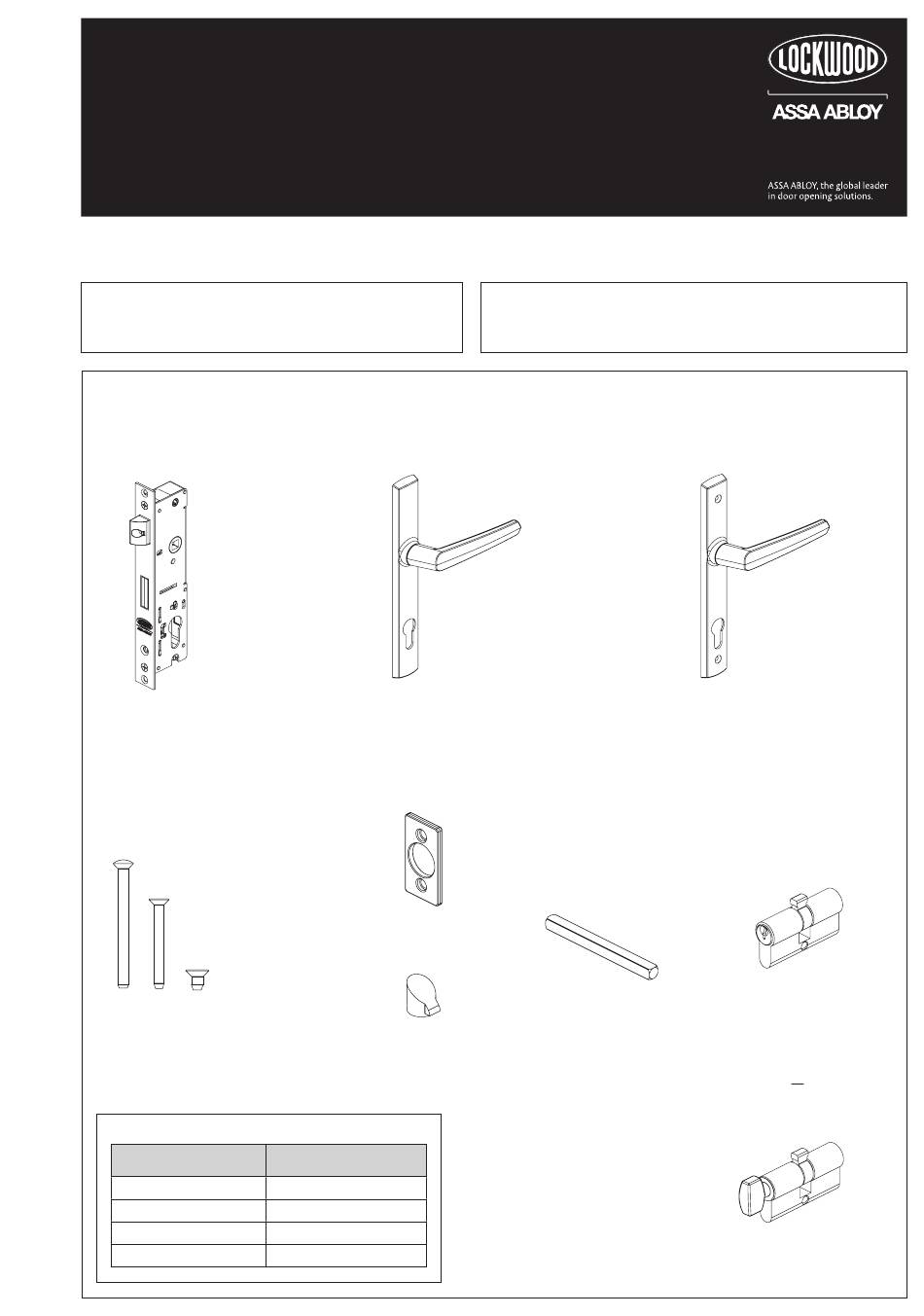

Pack Contents:
2-Point Lock
M4 Furniture fixing screws
M5 Cylinder fixing screw
8g x 7.5 Screws
Screw Selection:
Screw
M4 x 49mm
M4 x 55mm
M4 x 60mm
M4 x 65mm
Mortice Lock
Exterior Furniture
(Aria Furniture shown)
2mm Latch Packer
Latch wear pad
Stile Width
38 - 43mm
43 - 49mm
46 - 55mm
55 - 58mm
Tools Required:
• Drill
• 3.2mm Drill Bit
• 10.0mm Drill Bit
92mm Drive
Bar (Spindle)
• 20.0mm Drill Bit
• Phillips Screwdriver #2
• Square Screwdriver #1
Interior Furniture
(Aria Furniture shown)
Cylinder Double Key
or
Cylinder Key & Turn Knob
Advertisement
Related Manuals for Assa Abloy Lockwood Optimum
Summary of Contents for Assa Abloy Lockwood Optimum
- Page 1 Optimum Mortice Lock Palladium and Verona Furniture, 2-Point Installation Instructions Application: Provides secure deadlocking for aluminium hinged Tools Required: • Drill • 20.0mm Drill Bit • 3.2mm Drill Bit • Phillips Screwdriver #2 doors. Palladium Xtra furniture available with daylatch snib and •...
- Page 2 1. Door Preparation Route the door as shown in the routing diagram. Note: For Palladium Xtra Furniture, see separate instructions.
- Page 3 2. Fixing Lock • Place the lock assembly into the stile • Fix the lock onto the stile using the two 8g x 7.5 screws 3. Fixing Furniture and Cylinder • Insert the drive bar (spindle) through the square drive hole in the lock •...
- Page 4 The key function does not Ensure the motion of the latch is not operate restricted. LOCKWOOD GUARANTEE ASSA ABLOY New Zealand Limited ASSA ABLOY Australia Pty Limited 6 Armstrong Road, Albany, Auckland 0632 235 Huntingdale Road, Oakleigh, Vic 3166 info.nz@assaabloy.com info.au@assaabloy.com...
