SERVICE INSTRUCTIONS
Description

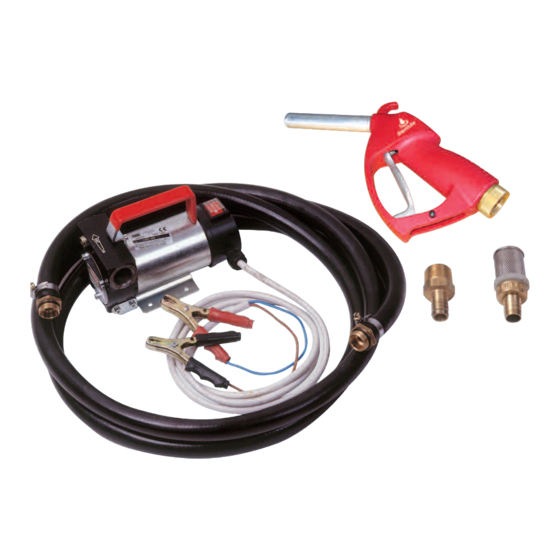

The 51000 12 volt and 51001 24 volt electric drum pump kits made by Piusi in Italy, are designed for the transfer of
diesel fuel. Their compact size & carry handle make them the ideal portable kit for your every day diesel transfer jobs.
The self priming rotary vane pump, complete with cast iron casing & built in bypass, are powered by a 12 or 24 volt DC
motor. With a 30 minute duty cycle, the pumps can deliver diesel fuel at up to 38 litres per minute. Both kits come
complete with 4 metres of ¾" antistatic delivery hose, 2 metre power cables & leads, an inlet strainer/hose tail, outlet
hose tail & a 52007 manual nozzle. (The kit does not include a downtube or inlet hose. This can be purchased
separately if required).
Specifications
Uses
Voltage
Current Drain
Delivery Rate
Duty Cycle
Fuse Capacity
Suction Lift
Weight
Assembly Procedure Instructions
1 Connect the outlet fuel hose to the pump body outlet
with thread tape ensuring no leakage.
2 Connect the outlet fuel hose to the manual on/off
nozzle with thread tape ensuring no leakage.
3 Connect your inlet hose or downtube to the inlet side
of the pump with thread tape utilizing the hose tail
and filter/strainer as appropriate.
4 Connect the battery cables with the aid of the
heavy- duty alligator clamps to a 12 volt (51000) or
24v (51001) battery.
5 Turn on the intended power source.
6 The pump motor will start to drive the vane pump
head and when you open the nozzle, diesel fuel
should start to flow from the fuel nozzle.
7 When not in use, please store away in a clean
environment to ensure no contaminants can enter
the fuel nozzle.
Important to note
The 51000 and 51001 diesel refueling pump kits have a duty cycle of 30 minutes. If you run the pumps for longer than 30 minutes, the
motor will burn out. Please note that running the pump for 30 minutes or more (which enables the maximum transfer of 1140 litres of
diesel fuel) WILL AUTOMATICALLY VOID THE MANUFACTURER'S WARRANTY.
DO NOT use this pump for unleaded or leaded petrol, kerosene, aviation fuel or any other fuel other than diesel as this pump is not
flame proof and using such fuels could cause an explosion.
The pumps have a warranty of 12 months on materials and workmanship.
Head Office NSW VIC
TEL: (02) 9939 0711 TEL: (03) 8787 8288
FAX: (02) 9939 0411 FAX: (03) 8787 8266
Visit our website at
12V / 24V lectric Pump Kit
Diesel Fuel transfer
51000 - 12V DC; 51001 – 24V DC
Approx 22 Amps at 12V DC; Approx 11 Amps at 24V DC
Up to 38 Litres per minute for both models
30 minutes on, 30 minutes off for both models
25 @ 12V DC; 15 @ 24V DC
Up to 2 metres
Approx 7.5kg
