Model F1 56 Sprinkler
Standard Pendent
Model F1 56 Recessed Sprinkler Types
Recessed Pendent/F1 and F2
Recessed Pendent/FP
Corrosion Resistant (UL, ULC) Polyester Coated
Listings & Approvals
1. Listed by Underwriters Laboratories, Inc. (UL)
2. Listed by Underwriters' Laboratories of Canada (ULC)
3. Certified by FM Approvals
UL Listing Category
Sprinklers, Automatic & Open
UL Guide Number
VNIV
Product Description
The F1 56 Glass Bulb Sprinkler combines the durability of
a standard sprinkler with the attractive low profile of a
decorative sprinkler. Whether installed on exposed piping
or in an office ceiling, it is functional and attractive.
Beautifully versatile is the description for the Reliable
Model F1 56 Recessed glass bulb sprinkler. Recessing the
F1 56 enhances its already low profile decorative
appearance, and facilitates a rapid and perfect installation.
Model F1 56 Recessed escutcheon is highly adjustable.
The two piece construction makes field installation a very
easy and rapid task. This also allows ceiling panels to later
be removed without shutting down the fire protection
system, thus facilitating maintenance of above ceiling
services.
The F1 56 Automatic Sprinkler utilizes a frangible glass
bulb. The glass bulb consists of an accurately controlled
amount of special fluid hermetically sealed inside of a
precisely manufactured glass capsule. This glass bulb is
specially constructed to provide fast thermal response.
At normal temperatures, the glass bulb contains the fluid
in both the liquid phase and in the vapor phase. The vapor
phase can be seen as a small bubble. As heat is applied,
the liquid expands forcing the bubble smaller and smaller
as the liquid pressure increases. Continued heating forces
the liquid to push out against the bulb, causing the glass to
shatter, opening the waterway and allowing the deflector to
distribute the discharging water.
The F1 56 Sprinkler temperature rating is identified by the
color of the glass bulb capsule as well as frame color where
applicable.
The Reliable Automatic Sprinkler Co., Inc. 103 Fairview Park Drive, Elmsford, New York 10523

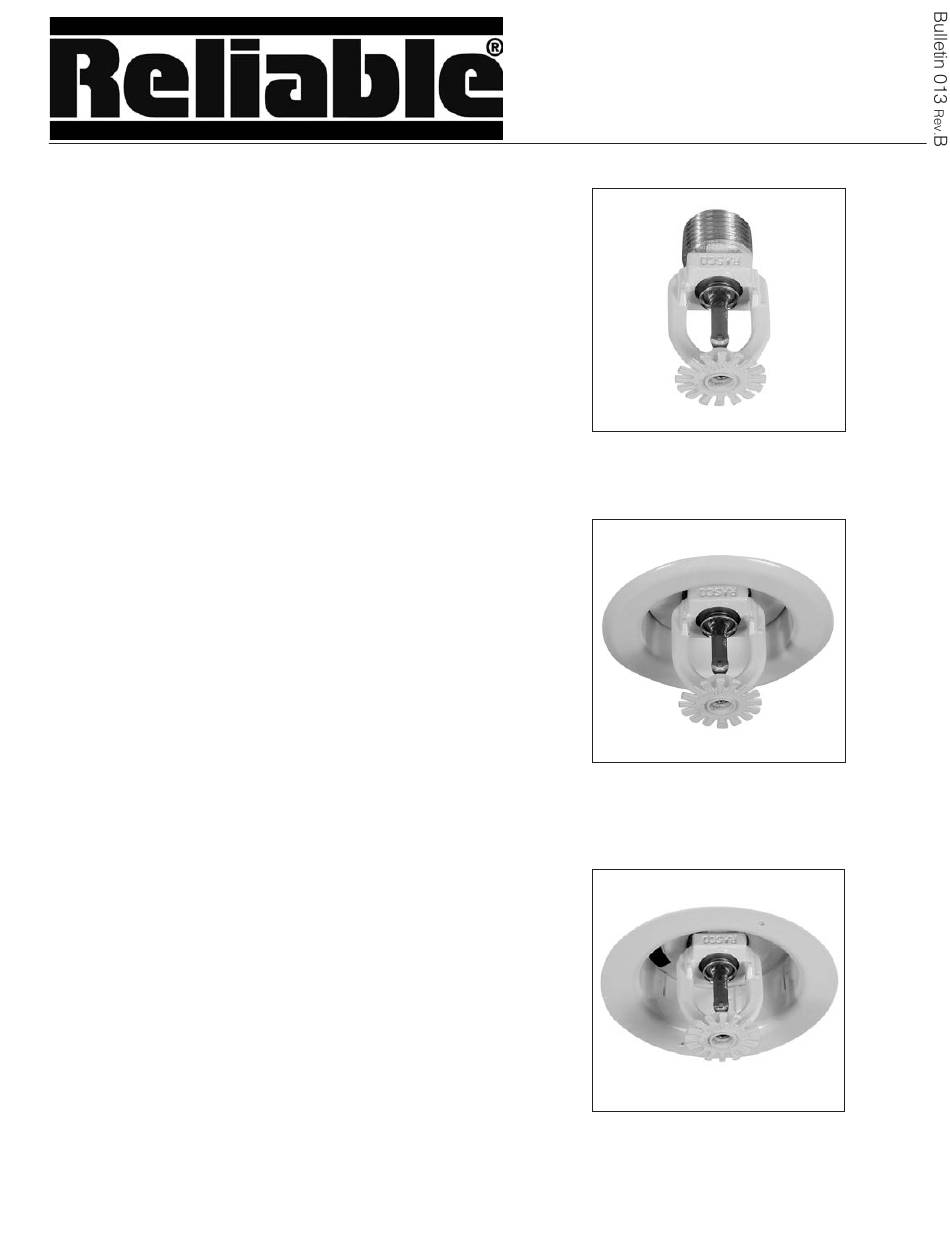

Model F1 56
Model F1 56 Recessed
Standard Response
Sprinklers
Pendent
Recessed Pendent/F1
Recessed Pendent/FP
Bulletin 013
B
Rev.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Reliable F1 56
Summary of Contents for Reliable F1 56
- Page 1 The F1 56 Sprinkler temperature rating is identified by the color of the glass bulb capsule as well as frame color where Recessed Pendent/FP applicable. The Reliable Automatic Sprinkler Co., Inc. 103 Fairview Park Drive, Elmsford, New York 10523...
- Page 2 Height Organizations Metric " (15mm) Standard Orifice with " NPT (R1/2) Thread 2.25" (57mm) 1,2,3 RA1314 Pendent Model F1 56 Recessed Pendent Sprinkler Installation Wrench: Model GFR2 Sprinkler Wrench Installation Data: K Factor Nominal Thread Sprinkler Approval Sprinkler Identification Orifice...
- Page 3 The Model F1 56 Recessed Sprinklers are to be installed The Models F1 56 and F1 56 Recessed Sprinklers with a maximum recess of ¾ inch (19mm). The Model F1 56 should be inspected quarterly and the sprinkler system Escutcheon illustrated is the only recessed escutcheon to be maintained in accordance with NFPA 25.
- Page 4 Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable. Products manufactured and distributed by Reliable have been protecting life and property for over 80 years, and are installed and serviced by the most highly qualified and reputable sprinkler contractors located throughout the United States, Canada and foreign countries.
