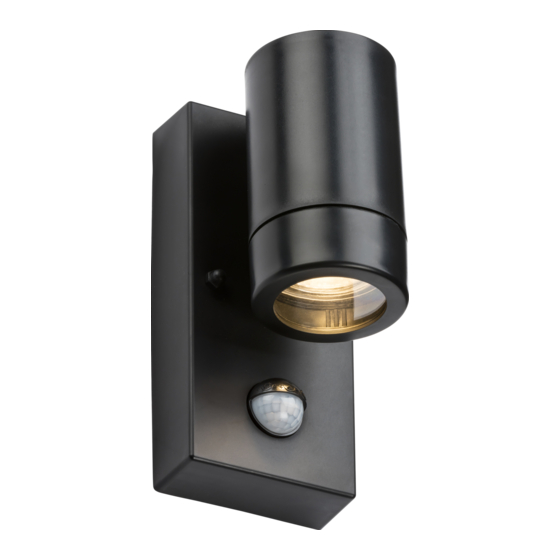

- Page 1 INSTALLATION & MAINTENANCE MANUAL EAPIR1BK / EAPIR2BK...
- Page 2 GENERAL INSTRUCTIONS These instructions should be read carefully and retained after installation by the end user for future reference and maintenance. These instructions should be used to aid installation of the following products: EAPIR1xx / EAPIR2xx SAFETY • This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671) and current Building Regulations.
- Page 3 Using the baseplate as a template, mark the location for, and drill the fixing holes ensuring not to • with any gas/water pipes or electrical cables (see Fig. 1) Fig. 1 Feed the mains cable through the rubber grommet to retain IP rating, and secure the baseplate t •...
- Page 4 the detection area is set, adjust the time and lux settings as required Fig. 2 k for correct operation • Once the detection area is set, adjust the time and lux settings as required • Check for correct operation ust be disconnected from the circuit if subjected to any high voltage or insulation resistance testing. mage will occur if this instruction is not followed.
- Page 5 If this product should fail within its warranty period, it should be returned to the place of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve...
- Page 6 Supplied By: (UK) Manufacturer ML Accessories Ltd, Unit E Chiltern Park, Boscombe Road, Dunstable LU5 4LT, www.mlaccessories.co.uk (EU) Authorised Representative nnuks Holding GmbH, Niederkasseler Lohweg 18, 40547 Düsseldorf, Germany, Email: eprel@nnuks.com DCMAR22_V1...
