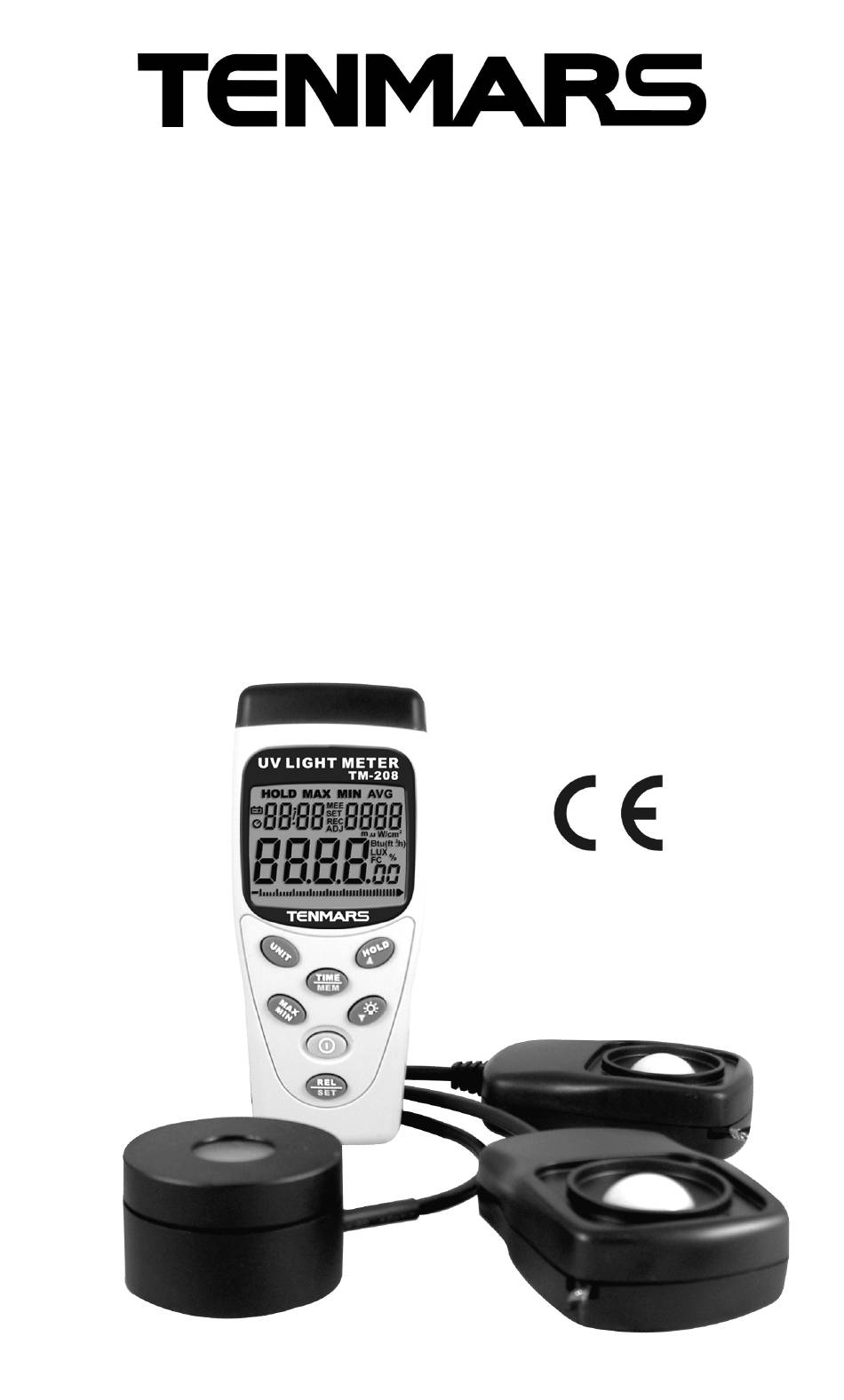

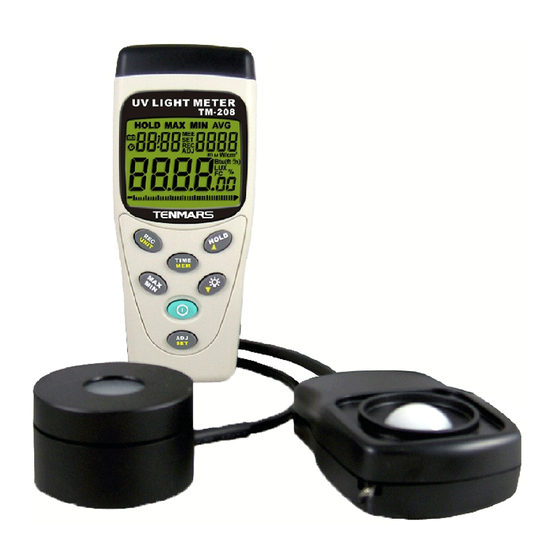

- Page 1 Precision Illumination -Solar -UVA 3 in 1-Meters TM-208 User’s Manual HB2TM2080003...
-
Page 2: Table Of Contents
Content : Preface ............1 Characteristics........... 1 Specifications ..........2 Illumination Instruction ......6 Instrument description ....... 9 LCD description........11 Measurement Procedures....... 12 Zero Adjustment ........13 MAX/MIN/AVG Record: ......14 Single Data Record ......... 15 Auto Power Off ........16 Relative Deduction Value(%).... -
Page 3: Preface
TM-208 Preface Thank you for purchasing our product. Please, read the operating instructions in details before you use this optics meter, so you will operate the meter correctly. This meter can be used in industry and home. Characteristics It gives the selection of Illumination –Solar. -
Page 4: Specifications
Standard Accessories: User’s manual, 9V battery，Carrying case, MINI USB 4P(MALE) to USB A Type cable, Install CD disk of TM-208 AC to DC 9V(300mA) If you want to change sensor，you must turn the meter off first. Sensor length:1.0M. - Page 5 TM-208 This tester was designed in accordance with EMC Standards in force and its compatibility has been tested in accordance with EN61326-1 (2006). 3.2 UVA Electric Electrical Specification Range : 400.0μw/cm , 400μw/cm 4000μw/cm , 20mW/cm Resolution : 0.1μw/cm2,1μ/cm...
- Page 6 TM-208 3.3 Solar Power Electric Specification Range : 40.00w/m m2,400.0w/ m ,4000w/ ,2000W/m /13 Btu(ft2．h),127Btu(ft2． h),634 Btu(ft2．h). Resolution : 0.01 w/ m , 0.1 w/ m , 1W/ m 0.01 Btu(ft2．h),0.1 Btu(ft2．h),1 Btu(ft2．h). Accuracy：Typically within ± 10W/m2 [ ±3 BTU / (ft2*h) ] or ±5% , whichever is greater...
- Page 7 TM-208 3.4 Illumination Electric Specification Sensor Silicon photodiode and filter Measuring 40.00,400.0,400,4000, Range 40000,400000 Lux 40,400,4000,40000 Footcandles Accuracy ±3% (Calibrated to standard incandescent lamp 2856 K) 6% other visible light source ° Angle deviation ±2% ° from cosine ±6% characteristics °...
-
Page 8: Illumination Instruction
TM-208 Illumination Instruction The flux of light received in a unit area of a certain side being shone is popularly known as illumination. In both United Kingdom and United States, the unit is known as foot-candle light, but in Europe it is known as meter candlelight. - Page 9 TM-208 1 lux=0.09290 foot-candles (sq, foot or sq. meter) Relative Spectral (SENSITIVITY) The deviation from the comparative standards for luminosity is determined by JIS standard C 1609-1993. Typ. Ta=23°C NOTE 1.：When the light sensor cap is not attached on the sensor, the word “CAP” will...
- Page 10 TM-208 attached on the sensor. If the zero adjustment has not been made correctly, some digits will still appear on the LCD instead of 0.00. In this case, please make the zero adjustment again. NOTE 2.：Light Source Luminous Intensity (cd)
-
Page 11: Instrument Description
TM-208 Instrument description... - Page 12 TM-208 Sensor Input connector. Power Button Backlight/Down Button Hold/Up Button ADJ/SET Button MAX/AVG/Min Button Time/MEM button Recode/ UNIT switch Button External power DC 9V USB interface Sensor Probe input(+) UVA Sensor Illumination sensor SOLAR Sensor...
-
Page 13: Lcd Description
TM-208 LCD description Numeral reading Time unit (hour: value minute: month: second) Memory reading AVG. symbol symbol /mw/cm Btu (ft *h) unit. uw/cm unit. Lux unit. % unit. Fc unit. 10. Adj symbol. 11. Low battery symbol. 12. Auto power off symbol. -
Page 14: Measurement Procedures
TM-208 Measurement Procedures Push “ ” button turn on the meter, push “ ”button again to turn off the meter. Hold “ ” button and push “ ”button to change the unit.(Transform measuring unit w/m2) display data. >> Btu (ft *h)>>... -
Page 15: Zero Adjustment
TM-208 Zero Adjustment Push“ ” button and attach Cap on the sensor. 0.00 will appear on the LCD. Make sure that the cap is attached on the sensor. If the zero adjustment has not been made correctly, some digits will appear on the LCD instead of 0.00, and the word “Cap”... -
Page 16: Max/Min/Avg Record
TM-208 MAX/MIN/AVG Record: Press “ ” key to show the current MAX, MIN, and AVG values. Press “ ” key to switch to the next display. The display switches from MAX to MIN, MIN to AVG, and AVG to MIN. Follow the figure circles. -
Page 17: Single Data Record
TM-208 10 Single Data Record Push“ ”button, the meter will save the current measured result, and REC will also appear on the LCD. -
Page 18: Auto Power Off
TM-208 11 Auto Power Off If you want disable auto power off, please hold “ ” button and push “ ” button, the auto power off symbol will not display on the LCD. If you want enable auto power off please hold “... -
Page 19: Relative Deduction Value(%)
TM-208 12 Relative Deduction Value(%) Hold “ ” button and push “ ” button into the setup mode to save the current measured result (=100% transmission), and then the current measured result will be divisor by the next measured result, and the diff erence from the divisor will appear RATE on the LCD. -
Page 20: Setup Mode
TM-208 13 Clock LCD Display Press button for more than seconds to select the display method of the Year, Month, Date, hour and Second. This meter’s clock uses 24 hour time setting. Default time mode setting is “2010/01/07 00: 02”... -
Page 21: Auto Recording Time Setup
TM-208 15 Auto Recording Time Setup Hold “ ” button and push “ ” button into the setup mode to change setup function. Push “ ” button again into Auto Recording Time Setup. Min: button to change digit Push “... - Page 22 TM-208 Hour: Sec: Push “ ” button to store the setting. If you do not want to use auto power off, you can set auto power off time to be 00:00 00. Maximum auto recording time: 23 hours 59 minutes 59 seconds.
-
Page 23: Time Clock Setup
TM-208 16 Time Setup clock Hold “ ” button and Push “ ” button to change time setup mode. This meter clock is 24 hour time setting. Push “ ” or “ ” button to change digit ... -
Page 24: Viewing Records
TM-208 17 Viewing Records Hold “ ” button and Push “ ” button to view records. Push“ ” or “ ” button to scroll through the records. *h) → (BTU (ft Push“ ” to change →BTU (ft *h)) / (FC→LUX→ FC)unit. - Page 25 TM-208 year Hold“ ”button and push“ ”button again to exit viewing records mode.
-
Page 26: Battery Replacement
TM-208 18 Battery Replacement WARNING If the LCD display “ ” symbol, please replace the battery immediately. Turn off the instrument. Open the battery covers and remove the battery. Replace with four-9V NEDA 1604, IEC 6F22 or JIS 006P size battery. -
Page 27: External Dc Power
TM-208 19 External DC Power External AC to DC adapter: Voltage (8~14V Max). Socket：pin Positive, Ground Casing External. Diameter 5.5mm internal Diameter 2.1 mm. 20 Computer Grade CPU：Pentium Ⅲ 1000MHZ. RAM：SDRAM 256MB. Hard Disk：200MB. -
Page 28: Software Installation
TM-208 21 Software installation Please insert the CD into PC to install the software. Please select the USB driver that will be installed, such as E:\ Light Meter Driver Setup.exe, click twice on the left key of the... - Page 29 TM-208 Select the SETUP.EXE i.e., E:\Light Metre\SETUP.EXE and installs the desktop icon ck out the CD from PC after completed the installation of the desktop icon.
- Page 30 TM-208 Use the USB cable to connect the meter and computer according to the drawing. Select the desktop icon (Light Metre) and click twice on left key of the mouse to run the procedure.
-
Page 31: Safety And Maintenance Standards
TM-208 22 Safety and maintenance standards Operating altitude: below 2,000m. Operating environment: for indoor use, expose to pollution level II. This is a precision device. During use or storage, do not go beyond its spec. to prevent any possible damage or danger. -
Page 32: Service
TM-208 cloths, liquid and water are prohibited. 23 Service Warranty Conditions This instrument is guaranteed for one year against material or production defects, in accordance with our general sales conditions. During the warranty period the manufacturer reserves the right to decide either to repair or replace the product. - Page 33 TM-208 Repairs made necessary by improper shipping material causing damages in transit. Repairs made necessary by previous attempts for repair carried out by non-skilled or unauthorized personnel. Instruments for whatever reason modified by the customer himself without explicit authorization of our Technical Dept.
-
Page 34: End Of Life
TM-208 occurred in transit due to non original packaging will be charged anyhow to the customer. The manufacturer will not be responsible for any damage to persons or things. 24 End of life Caution this symbol indicates that equipment and its accessories... - Page 36 Solar power meter, Radiation meter, Clamp meter, Multimeter, Phase Rotation test, Digital Insulation teste Our products of high quality are selling well all over the world TENMARS ELECTRONICS CO., LTD 6F, 586, RUI GUANG ROAD, NEIHU, TAIPEI 114, TAIWAN. E-mail: service@tenmars.com http://www.tenmars.com...
