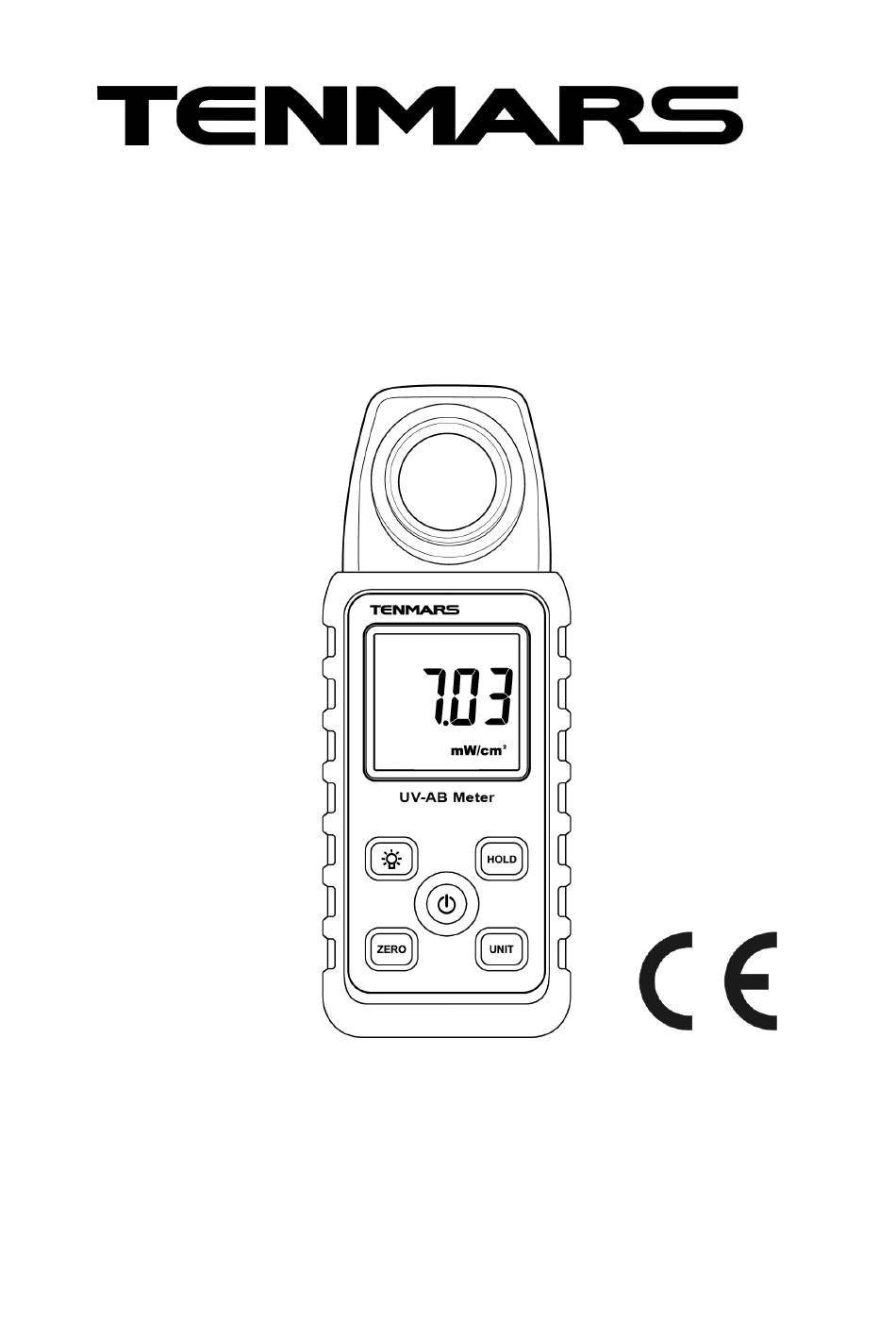

- Page 1 UV-AB Meter TM-223 User’s Manual HB2TM2230000...
-
Page 2: Table Of Contents
CONTENTS FOREWORD ............1 FEATURES............... 1 APPLICATIONS Industrial ........1 LABORATORY ............2 NAME AND FUNCTION OF EACH PART ....2 5.1. The lcd display shows.......... 2 5.2. Buttons:..............2 ELECTRIC SPECIFICATION SPECIFICATIONS ..3 TEST PROCEDURE..........4 7.1. Power button............4 7.2. -
Page 3: Foreword
1. FOREWORD Thank you for purchasing our product. Please, read the operating instructions in details before you use this UVAB optics meter, so you will operate the meter correctly. This meter can be used in industry and home. 2. FEATURES ˙... -
Page 4: Laboratory
4. LABORATORY ˙ Weathering "degradation studies". ˙ UV sterilization. ˙ Virology. ˙ Microbial genetics. ˙ DNA research. ˙ Biologic hoods. ˙ General laboratory use 5. NAME AND FUNCTION OF EACH PART 5.1. THE LCD DISPLAY SHOWS 1. Main display 2. Reading lock. 3. -
Page 5: Electric Specification Specifications
ELECTRIC SPECIFICATION SPECIFICATIONS ˙ DISPLAY：3-3/4 digits LCD with maximum reading 4000. ˙ Range：uW/cm 、mW/cm ˙ Ranges and range: 3999 uW/cm ~39.99mW/cm (1000 uW/ cm =1 mW/cm ˙ UV sensor spectrums Band pass: 290 nm to 390 nm. ˙ Accuracy：(±4%FS +2dgt ) FS: full scale 15%:sunlight ultraviolet. -
Page 6: Test Procedure
7. TEST PROCEDURE 7.1. POWER BUTTON ˙ ress the “ ” button to turn ON the power. The display comes alive. ˙ Press the “ ” button once again to turn OFF the power and put the device go into sleep mode. The display changes from light to dark. -
Page 7: Unit Button
button to power off. ˙ Backlight light turns off automatically after 30 seconds. 7.4. UNIT BUTTON: ˙ Press the “ ” button to turn ON the power and put the device to operating mode. The screen displays 0000uW/cm . Press the “ ”... -
Page 8: Safety And Maintenance
8. SAFETY AND MAINTENANCE ˙ Operating altitude: below 2,000m. ˙ Operating environment: for indoor and outdoor use, expose to pollution level II. ˙ This is a precision device. During use or storage, do not go beyond its spec. to prevent any possible damage or danger. -
Page 9: Service
and reposition the protective holster. 10. SERVICE ˙ Warranty Conditions. ˙ This instrument is guaranteed for one year against material or production defects, in accordance with our general sales conditions. During the warranty period the manufacturer reserves the right to decide either to repair or replace the product. - Page 10 causing damages in transit. ˙ Repairs made necessary by previous attempts for repair carried out by non skilled or unauthorized personnel. ˙ Instruments for whatever reason modified by the customer himself without explicit authorization of our Technical Dept. The contents of this manual may not be reproduced in any form whatsoever without the manufacturer’s authorization.
-
Page 11: End Of Life
forget to enclose a report describing the reasons for returning (detected fault). Use only original packaging. Any damage occurred in transit due to non original packaging will be charged anyhow to the customer. The manufacturer will not be responsible for any damage to persons or things. - Page 12 TENMARS ELECTRONICS CO., LTD 6F, 586, RUI GUANG ROAD, NEIHU, TAIPEI 114, TAIWAN. E-mail: service@tenmars.com http://www.tenmars.com...
