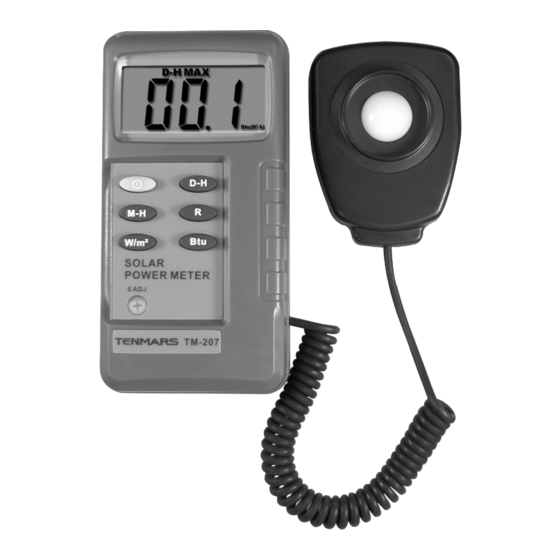

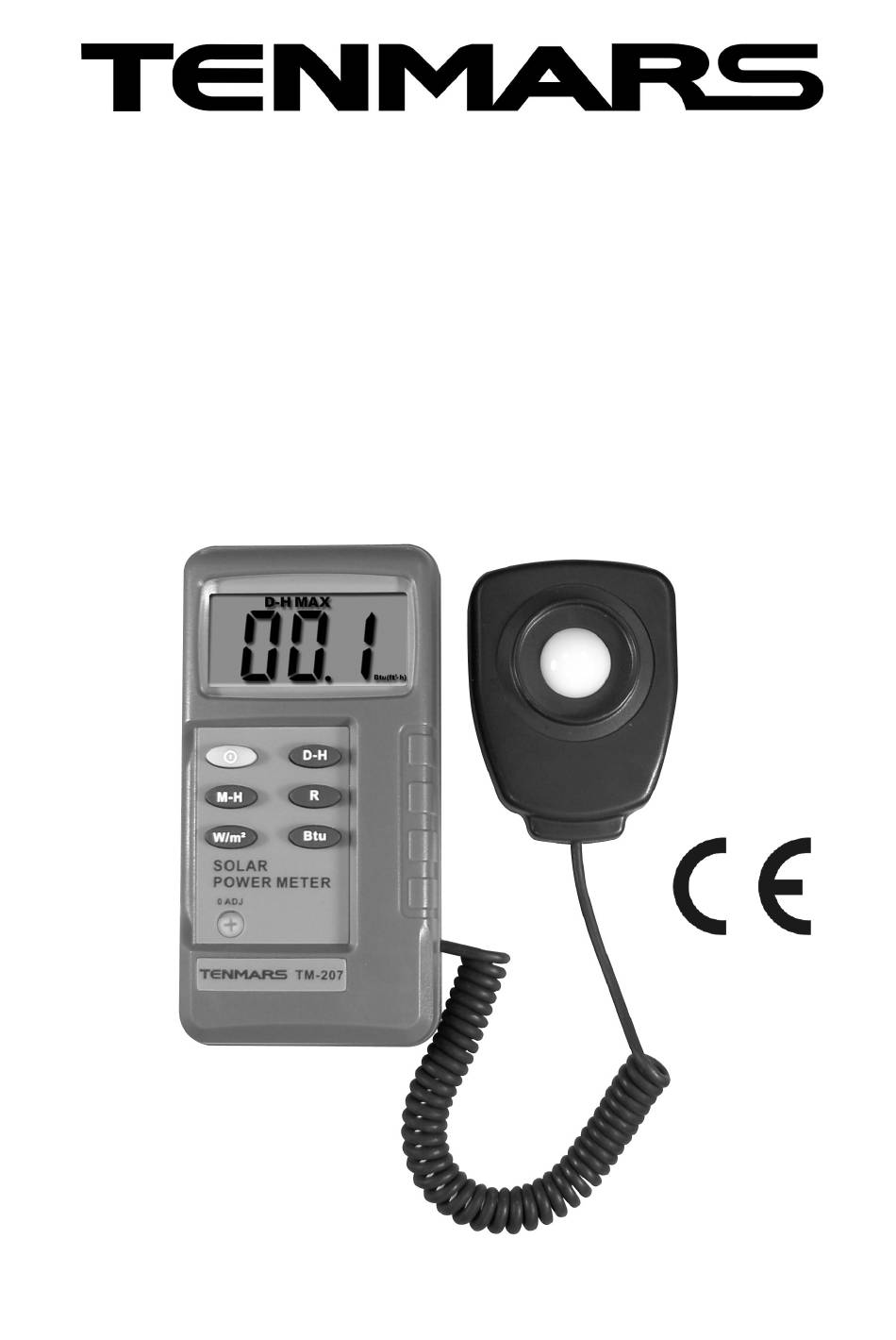

- Page 1 SOLAR POWER METER TM-207 User’s Manual HB2TM2070001 TENMARS ELECTRONICS CO., LTD...
-
Page 3: Table Of Contents
CONTENTS 1. FOREWORD..............2 2. SAFETY PRECAUTIONS AND PROCEDURES ..2 3. THE FOLLOWING SYMBOLS ARE USED: ....3 4. APPLICATIONS ..............4 5. FEATURES................. 4 6. NAME AND FUNCTION OF EACH PART ....5 7. ELECTRIC SPECIFICATION........11 8. Safety and maintenance standards ......12 9. -
Page 4: Foreword
From the moment you buy such a product, your future is not uncertain any more. When the sun shines recklessly, just take the TM-207 and aim its opening at the sun, and you will see how powerful the sun is. If... -
Page 5: The Following Symbols Are Used
TM-207 When taking measurements: Be particularly careful when measuring voltages exceeding 20V to avoid risks of electrical shocks. Avoid doing that in humid or wet places. Avoid doing that in rooms where explosive gas, combustible gas, steam or excessive dust is present. -
Page 6: Applications
TM-207 4. APPLICATIONS Transmission measurement is most suitable for measuring the effectiveness of the solar film. Solar radiation measurement. Car windows light intensity measurement. Optimal incident angle for the solar panel. Measurement of the sun’s transmission through transparent and film glass ... -
Page 7: Name And Function Of Each Part
TM-207 6. NAME AND FUNCTION OF EACH PART 6.1. THE LCD DISPLAY SHOWS: Data hold . Max. value. Min. value. Decimal point. 5. numeral screen. BTU (ft 8. Low battery indicator 6.2. BUTTONS: 1. Power button. 2. Lock up Max. and Min button. - Page 8 TM-207 6.2.1. Power button Press the “ ” button to turn ON the power. The display comes alive. Press the “ ” button once again to turn OFF the power and put the device go into sleep mode.
- Page 9 TM-207 6.2.3. BTU (ft *h) : Press the “ ” button to go into Btu (ft *h) mode, The screen displays Btu (ft *h). if screen displays , To select a different unit, Press the “ ” button to switch from W/m to Btu (ft *h) .
- Page 10 In this case, perform the zero adjustment again. Measure your car’s headlights: Turn ON your car’s headlights. Then turn ON the TM-207 solar meter, and “00.0” appears on the screen. Put the device down close to the headlights. EN-8...
- Page 11 Measure the effect of solar insulation of your vehicle’s windows: Press the “ ” button to turn ON the TM-207 solar meter, “00.0” appears on the screen. Aim the device at the sun and close to a window, and the intensity appears on the screen.
- Page 12 TM-207 NOTE：When the light sensor cover is not attached “CAP” is indicated. Make sure that it is attached. If performing the zero adjustment after powering on, several digits may not disappear. In this case, perform the zero adjustment again.
-
Page 13: Electric Specification
Close the window. Press the “ ” button on your TM-207 solar meter, and “00.0” comes up on the screen. Put the device close to the window and aim it at the sun. Compare the value against that... -
Page 14: Safety And Maintenance Standards
TM-207 Dimensions & weight: 143(L) x74(W) x 34 (H)mm, approx. 250g. EMC: this instrument is EMC-compliant and has undergone compatibility tests according to EN61326 (1997) + A1 (1998) + A2 (2001). ACCESSORIES User manual. 9V battery(NEDA 1604 IEC 6F 22 JIS 006P)*1 ... -
Page 15: Battery Replacement
TM-207 9. BATTERY REPLACEMENT When the symbol " " is displayed, batteries need replacement. CAUTION Before replacing batteries disconnect the test leads from any energized circuits to avoid electrical shocks. Turn OFF the meter and disconnect the test leads from the input terminals. - Page 16 TM-207 due to non original packaging will be charged anyhow to the customer. The warranty doesn’t apply to: Accessories and batteries (not covered by arrantly). Repairs made necessary by improper use (including adaptation to particular applications not foreseen in the instructions manual) or improper combination with incompatible accessories or equipment.
- Page 17 TM-207 Service Shouldn’t the instrument work properly, before contacting your distributor make sure that batteries are correctly installed and working, check the test leads and replace them if necessary. Should you need for any reason to return back the...
-
Page 18: End Of Life
TM-207 11. END OF LIFE Caution: this symbol indicates that equipment and its accessories shall be subject to a separate collection and correct disposal EN-16... - Page 20 Solar power meter, Radiation meter, Clamp meter, Multimeter Phase Rotation tester, Digital Insulation tester Our products of high quality are selling well all over the world TENMARS ELECTRONICS CO., LTD 6F, 586, RUI GUANG ROAD, NEIHU, TAIPEI 114, TAIWAN. E-mail: service@tenmars.com http://www.tenmars.com...
