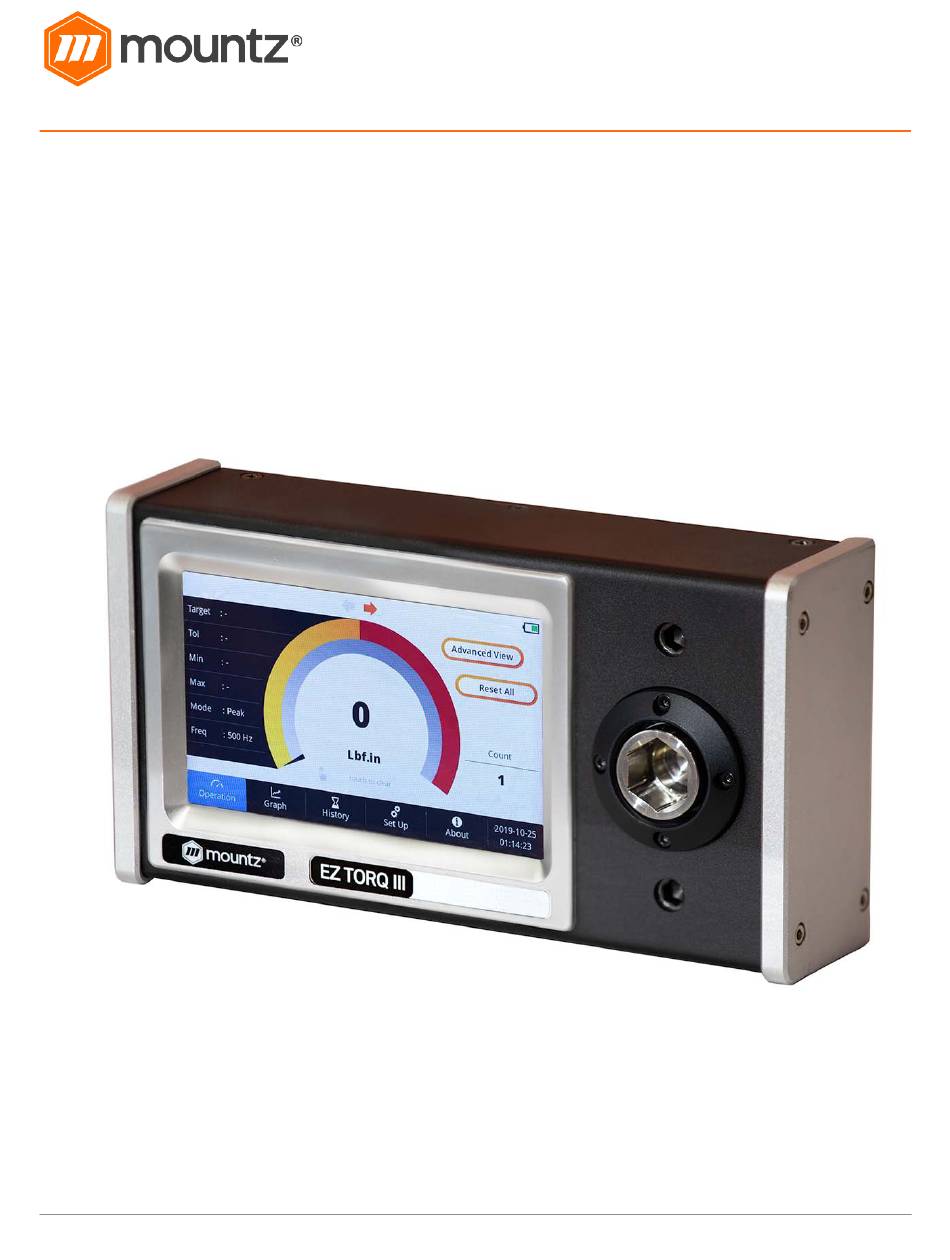

EZ-TORQ III TORQUE ANALYZER
OPERATING INSTRUCTIONS
Rev 1.0 (12/20/2019)
SILICON VALLEY HEADQUARTERS
1080 North 11th Street, San Jose, CA 95112 | Phone: (408) 292-2214 | Fax: (408) 292-2733 | mountztorque.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ-TORQ III and is the answer not in the manual?

Questions and answers

Related Manuals for Mountz EZ-TORQ III

Summary of Contents for Mountz EZ-TORQ III

  • Page 1 EZ-TORQ III TORQUE ANALYZER OPERATING INSTRUCTIONS Rev 1.0 (12/20/2019) SILICON VALLEY HEADQUARTERS 1080 North 11th Street, San Jose, CA 95112 | Phone: (408) 292-2214 | Fax: (408) 292-2733 | mountztorque.com...

  • Page 2: Table Of Contents

    EZtorQ-III User Manual EZtorQ-III User Manual Version 1.1 (12/20/2019) Table of Contents PRODUCT (產 品 ) ..................................1 1.1. (型 號 ) ..................................1 ODELS 1.2. (規 格 ) ................................1 PECIFICATIONS 1.3. (注 意 ) .................................... 2 1.4. (設 計 ) ..................................2 AYOUT 1.5.

  • Page 3: Product (產 品 )

    EZtorQ-III User Manual 1. Product ( 產 品) Models ( 型 1.1. 號) Model Item Torque Capacity Lbf.In. EZTorQIII-10i 070810 1 - 10 EZTorQIII-50i 070811 5 - 50 EZTorQIII-100i 070812 10 - 100 EZTorQIII-150i 070813 15 - 150 EZTorQIII-300i 070814 30 - 300 1.2.

  • Page 4: Care (注 意 )

    EZtorQ-III User Manual Operation Modes Track, Peak, First Peak ( Torque units (扭力單位) ozf.in. / lbf.in / lbf.ft / cN.m / N.m / Kgf.m / Kgf.cm Memory SD Card, up to 32GB (SD 記憶卡 32GB) Data memory(數據記憶) English, Spanish, French, German, Chinese &...

  • Page 5: Dimensions (尺 寸 )

    EZtorQ-III User Manual 1.5. Dimensions ( 尺 寸) 1.6. Rundown Adapter mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214...

  • Page 6: Case Content (產品內容)

    EZtorQ-III User Manual 1.7. Case Content (產品內容) mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214...

  • Page 7: Quick Menu Structure (目錄結 構)

    EZtorQ-III User Manual 2. Quick Menu Structure (目錄結 構) mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214...

  • Page 8: Operation (操 作)

    EZtorQ-III User Manual Operation (操 作) Make sure Tester is fully charged before use PLEASE UNPLUG TESTER FROM CHARGER WHILE USING IT ! 3.1. Basic View (基本視 圖) Item Description Parameters (參數) Quick view of test parameters (閱覽參數) Counterclockwise (ß) Clockwise (à) Both Directions (ß à) (逆時針) (ß) Rotation Direction(方向)

  • Page 9: Advanced View

    EZtorQ-III User Manual 3.2. Advanced View Item Description Parameters(參數) Quick view of test parameters. (參數視圖) Counterclockwise (ß) Clockwise (à) Both Directions (ß à)(逆時針) (ß) Rotation Direction(方向) (順時針) (à) (雙向) (ß à) Final peak (only First- Final torque value while in the First-Peak mode. (最終扭力值)( 第一峰值模式) Peak)( 最後峰值)( Peak torque, Track torque or First-peak torque while in each mode Torque Reading(扭力數據)

  • Page 10: Graph (圖表)

    EZtorQ-III User Manual 燈) 4. Graph (圖表) Item Description 峰值, 跟蹤值, 第一峰值) 扭力) Torque( Peak torque, Track torque or First-peak torque at each mode( Final peak (only Final torque value on the First-Peak mode. First-Peak) 參數) Parameters on the advanced view operation. Parameters( OK zone can be created by the ON/OFF switch when there is a target torque set.

  • Page 11: History (儲存記錄)

    EZtorQ-III User Manual 5. History (儲存記錄) Description The last 10 data points are saved and refreshed. (保存最後十個數據) Test result are displayed in Green for OK and Red for NG. (結果, 綠色通過, 紅色不通過) If there is not a target torque set OK/NG, Target, and Tolerance data columns are not used. (如果沒有設置目標值, 公差線 無效) mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214...

  • Page 12: Set Up (設置)

    EZtorQ-III User Manual 6. Set Up (設置) 6.1. Setting (設定) Item Description Up/Down & Numeric key pad( Target torque can be selected by the UP and DOWN arrow. Touch the center of target 上, 下, 數字鍵) torque to open the numeric key pad. (目標扭力值可以用上或下按鍵調整.) Target Torque &...

  • Page 13: System(系統)

    EZtorQ-III User Manual 6.2. System(系統) Item Description Brightness(亮度) LCD brightness adjustment (LCD亮度調整) Timer turns off LCD display when not being used. When the LCD screen is touched unit will wake Sleep mode(睡眠模式) (1,3 and 5 mins)( 如不使用, 計時器將會關閉 LCD 銀幕. 觸摸液晶屏時，將喚醒。...

  • Page 14: About(關於)

    SD card information (total, used and available memory). SD card usage(SD 卡狀態和使 和可用的存儲量) 用率) Tap 5 times on the EZ-TORQ III area to enter into the calibration mode. Calibration Calibration password is “5809”. (在 EZ-TORQ III 上按 5 次進扭力校準模式, mode(扭力校準模式) 密碼: “5809”) mountztorque.com - 1080 N 11...

  • Page 15: Calibration Mode( 扭 力校準模式)

    EZtorQ-III User Manual 8. Calibration mode( 扭 力校準模式) Item Description Max torque of the range(最大扭力值) torque(最大扭力值) Serial no. YY,MM,0000 (2 digits for year, 2 digits for month, 4 digits for sequence) 流水號 (年, Serial 月份, 4位序號) number(流水號) Unit(單位) Unit of measure for calibration mode. (校準模式單位) Select the amount calibration data points (3 points or 5 points).

  • Page 16: Data Download: Real Time - Hyperterminal

    EZtorQ-III User Manual 9. Data Download: Real Time – HyperTerminal ( 即時下載) A. Connect the PC and EZtorQ-III with a USB cable. ( 使用USB cable連結電腦和 EZTORQ III) B. Make sure “USB Serial Port” is recognized in windows device manager. (確 定...
  • Page 17 EZtorQ-III User Manual D. In menu, select [File] → [New connection]. When the following screen appears, select Serial and COM port. E. The test result is displayed as shown below right after torque testing. mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214...

  • Page 18: Data Download: Using Excel Data Streamer( 數據下載) Excel

    EZtorQ-III User Manual 10. Data Download: using Excel data streamer( 數據下載) Excel !! Note) Data Streamer add-in is available only for Microsoft Office 365 users. A. Click on “File” menu and select Options. B. Select the “Add-ins”, than Select the “COM Add-ins”, than Press the “Go” button. mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214...
  • Page 19 EZtorQ-III User Manual C. Check “Microsoft Data Streamer for Excel” item and click OK. D. On your Excel application, a new column called “Data Streamer” will show up. Click on “Data Streamer” Menu E. On the left side of the screen, click on “connect to device”. Than click on “Start Data” Go down on the screen and click on “settings”...
  • Page 20 EZtorQ-III User Manual G. Go down on the screen and click on “data in” tab to see torque data readings been loaded on the page. It should look like this: mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214...

  • Page 21: Sd Memory Card Usage ( Sd Card 存 儲 空 間 )

    EZtorQ-III User Manual 11. SD Memory Card Usage ( SD card 存 儲 空 間) SD Memory Card can be formatted two ways: From PC or from EZtorQ-III Tester. 電腦 可以兩種方式格式化 SD 卡, 從 或從 EZTORQE III 11.1. Formatting SD card on your PC (格式化 SD card 電 腦上) A.
  • Page 22 EZtorQ-III User Manual E. In the Format window, file system should be set to FAT32.( 文件系統應設置為FAT32) Check “Quick Format”. (選快速格式化) G. Click Start. ( 選擇開始) H. When the warning appears, select OK. ( 在警告出現時, 請選擇 ok) Once the formatting is complete, you can close the window. (格式化完成後，可以關閉窗口) Now you can use the SD card in EZtorQ-III.

  • Page 23: Formatting Sd Card On Eztorq-Iii (格式化 Sd Card Eztorq-Iii 上)

    EZtorQ-III User Manual 11.2. Formatting SD card on EZtorQ-III (格式化 SD card EZtorq-III 上) A. Insert the SD Card into EZtorQ-III.( EZTORQ III) 將SD卡插入 B. Go to [Set Up] → [System.2] screen. (選擇設置) C. Select the “Format” button.( 選擇 鍵) 格式化...
  • Page 24 EZtorQ-III User Manual D. When the warning appears, select OK. ( 在警告出現時, 請選擇 ok) E. Please wait for the format to complete. (請等待格式化完成) Now you can use the SD card in EZtorQ-III. mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214...

  • Page 25: Reading Sd Memory Card Data (讀取Sd Card 中的數 據)

    EZtorQ-III User Manual (讀取SD card 中的數 據) 11.3. Reading SD Memory Card Data A. Insert the SD Card into Your Computer. (將SD卡插入電腦) B. Open Windows Explorer.(打開Windows資源管理器) C. Enter the SD card drive.( 進 入SD卡) D. Folders are created in order of year→month.( 按年→月的順序創建文件夾) E.

  • Page 26: How To Update Eztorq-Iii Firmware

    建“更新”文件夾) E. Copy the firmware file to the update folder. (將軟件文件複製到更新文件夾) NOTE: Firmware Update will be provided by Mountz Inc Insert the SD Card into EZtorQ-III.( 將SD卡插入EZtorQ-III) G. When you turn on the power, the firmware upgrade will proceed automatically.( 打開電源時，軟件升級將自動...

  • Page 27: Calibration And Repairs (校 准和 維 修 )

    Mountz provides rapid service with quality that you can trust as we offer two state-of-the-art calibration lab and repair facilities that can calibrate up to 20,000 lbf.ft. Since 1965, Mountz Inc. has proven in- depth knowledge of torque is reflected in our tool’s craftsmanship and our ability to provide solutions to both common and uncommon torque applications.
