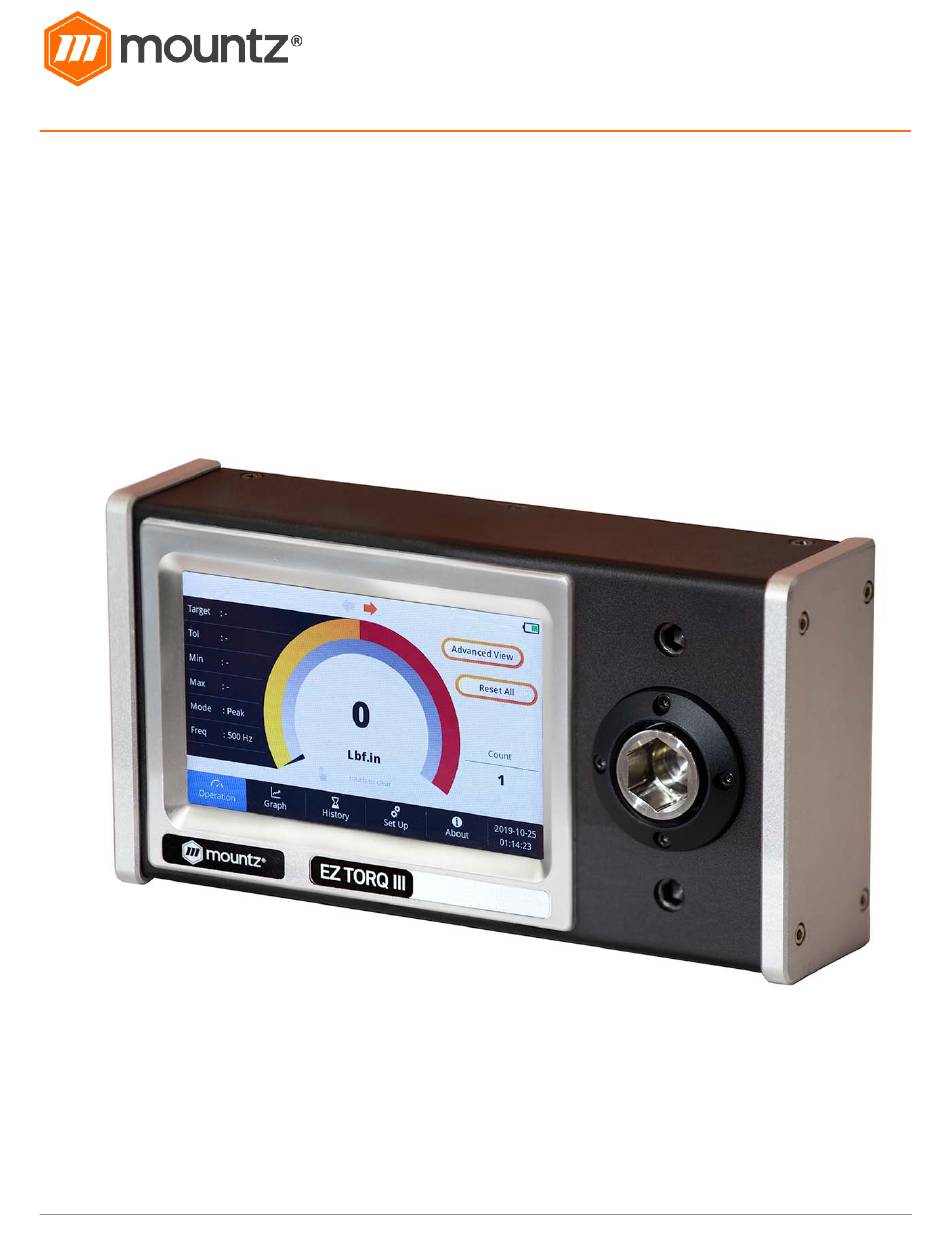

- Page 1 EZ-TORQ III TORQUE ANALYZER OPERATING INSTRUCTIONS Rev 1.0 (12/20/2019) SILICON VALLEY HEADQUARTERS 1080 North 11th Street, San Jose, CA 95112 | Phone: (408) 292-2214 | Fax: (408) 292-2733 | mountztorque.com...
-
Page 2: Table Of Contents
EZ-TorQ-III User Manual EZ-TorQ-III User Manual Version 1.1(12/20/2019) Table of Contents PRODUCT ......................................2 1.1......................................2 ODELS 1.2....................................2 PECIFICATIONS 1.3....................................... 3 1.4......................................3 AYOUT 1.5..................................... 3 IMENSIONS 1.6..................................4 UNDOWN DAPTER 1.7....................................4 ONTENT QUICK MENU STRUCTURE ................................ -
Page 3: Product
EZ-TorQ-III User Manual 1. Product 1.1. Models Model Item Torque Capacity Lbf.In. EZ-TorQ III 10i 070810 1 - 10 EZ-TorQ III 50i 070811 5 - 50 EZ-TorQ III 100i 070812 10 - 100 EZ-TorQ III 150i 070813 15 - 150... -
Page 4: Care
EZ-TorQ-III User Manual 1.3. Care Make sure you always use the original USB 2A charging cable that came with Tester. Turn OFF Tester before connecting or disconnecting USB Cable. For safety purposes, please make sure tester is mounted on surface before using it. 1.4. -
Page 5: Rundown Adapter
FOR RDA’S ! lbf.in. lbf.in. lbf.in. lbf.in. Lbf.in. Lbf.in. Torque meter comes with EZ-TorQ III 10i EZ-TorQ III 50i EZ-TorQ III 100i EZ-TorQ III 150i EZ-TorQ III-300i Indicated Rundown Screw Block Adaptor and ¼” Hex Male TEST Bit for each... -
Page 6: Quick Menu Structure
EZ-TorQ-III User Manual 2. Quick Menu Structure mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214... -
Page 7: Operation
EZ-TorQ-III User Manual 3. Operation 3.1. Basic View Item Description Parameters Quick view of test parameters Rotation Direction Counterclockwise () Clockwise () Both Directions() Final peak(only First- Final torque value while in the First-Peak mode. Peak mode) Torque Reading Peak torque, Track torque or First-peak torque while in each mode Torque unit Torque unit ( Kgf.cm, Kgf.m, Nm, cNm, Ozf.in, Lbf.in, Lbf.ft ) Manual reset... -
Page 8: Advanced View
EZ-TorQ-III User Manual 3.2. Advanced View Item Description Parameters Quick view of test parameters. Rotation Direction Counterclockwise () Clockwise () Both Directions () Final peak (only First- Final torque value while in the First-Peak mode. Peak) Torque Reading Peak torque, Track torque or First-peak torque while in each mode Torque unit Torque unit ( Kgf.cm, Kgf.m, Nm, cNm, Ozf.in, Lbf.in, Lbf.ft ) Manual reset... -
Page 9: Graph
EZ-TorQ-III User Manual 4. Graph Item Description Torque Peak torque, Track torque or First-peak torque at each mode Final peak (only Final torque value on the First-Peak mode. First-Peak) Parameters Parameters on the advanced view operation. OK zone can be created by the ON/OFF switch when there is a target torque set. OK Zone The target torque setting is the red line. -
Page 10: History
EZ-TorQ-III User Manual 5. History Description The last 10 data points are saved and refreshed. Test result are displayed in Green for OK and Red for NG. If there is not a target torque set OK/NG, Target, and Tolerance data columns are not used. mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214... -
Page 11: Set Up
EZ-TorQ-III User Manual 6. Set Up 6.1. Setting Item Description Target torque can be selected by the UP and DOWN arrow. Touch the center of Up/Down &Numeric key pad target torque to open the numeric key pad. Target Torque & Tolerance Check on/off to apply the target torque and tolerance settings. -
Page 12: System
EZ-TorQ-III User Manual 6.2. System Item Description Brightness LCD brightnessadjustment Timerturns off LCD display when not being used. When the LCD screen is touched unit will wake Sleep mode (1,3 and 5 mins) Language Language selection (English, Spanish, French, Germany, Chinese, Portuguese) Calibration notice Calibration expired/reminder notice. -
Page 13: About
SW version Software version SD status& usage SD card information (total, used and available memory). Tap 5 times on the EZ-TORQ III area to enter into the calibration mode. Calibration mode Calibration password is “5809”. mountztorque.com - 1080 N 11... -
Page 14: Calibrationmode
EZ-TorQ-III User Manual 8. Calibrationmode Item Description Max torque Max torque of the range Serial number Serial no. YY,MM,0000 (2 digits for year, 2 digits for month, 4 digits for sequence) Unit Unit of measure for calibration mode. Type Select the amount calibrationdata points (3 points or 5 points). ADC Value In order to save the AD/calibration value, press and hold the test pointfield for 2 seconds. -
Page 15: Data Download: Real Time - Hyperterminal
EZ-TorQ-III User Manual 9. Data Download: Real Time - HyperTerminal A. Connect the PC and EZtorQ-III with a USB cable. B. Make sure “USB Serial Port” is recognized in windows device manager. *The COM port number may differ depending on the user environment. C. - Page 16 EZ-TorQ-III User Manual D. In menu, select [File] → [New connection]. When the following screen appears, select Serial and COM port. The test result is displayed as shown below right after torque testing. mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214...
-
Page 17: Data Download: Using Excel Data Streamer
EZ-TorQ-III User Manual 10. Data Download: using Excel data streamer !! Note) Data Streamer add-in is available only for Microsoft Office 365 users. A. Click on “File” menu and select Options. B. Select the “Add-ins”, than Select the “COM Add-ins”, than Press the “Go” button. mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214... - Page 18 EZ-TorQ-III User Manual C. Check “Microsoft Data Streamer for Excel” item and click OK. D. On your Excel application, a new column called “Data Streamer” will show up. Click on “Data Streamer” Menu On the left side of the screen, click on “connect to device”. Than click on “Start Data” Go down on the screen and click on “settings”...
- Page 19 EZ-TorQ-III User Manual should look like this: mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214...
-
Page 20: Sd Memory Card Usage
EZ-TorQ-III User Manual 11. SD Memory Card Usage SD Memory Card can be formatted two ways: From PC or from EZtorQ-III Tester. 11.1. Formatting SD card on your PC A. Insert the SD card into your computer. B. Open windows explorer. C. - Page 21 EZ-TorQ-III User Manual In the Format window, file system should be set to FAT32. Check “Quick Format”. G. Click Start. H. When the warning appears, select OK. Once the formatting is complete, you can close the window. Now you can use the SD card in EZtorQ-III. mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214...
-
Page 22: Formatting Sd Card On Eztorq-Iii
EZ-TorQ-III User Manual 11.2. Formatting SD card on EZtorQ-III A. Insert the SD Card into EZtorQ-III. B. Go to [Set Up] → [System.2] screen. C. Select the “Format” button. D. When the warning appears, select OK. mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214... -
Page 23: Reading Sd Memory Card Data
EZ-TorQ-III User Manual Please wait for the format to complete. Now you can use the SD card in EZtorQ-III. 11.3. Reading SD Memory Card Data A. Insert the SD Card into Your Computer. B. Open Windows Explorer. mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214... - Page 24 EZ-TorQ-III User Manual C. Enter the SD card drive. D. Folders are created in order of year→month. The file is generated in yyyymmdd.csv format. (y: year, m: month, d: day) You can view the data using excel or a text editor. mountztorque.com - 1080 N 11 St - San Jose CA 95112 - 408.292.2214...
-
Page 25: How To Update Eztorq-Iii Firmware
D. Create an “update” folder at the top. Copy the firmware file to the update folder. NOTE: Firmware Update will be provided by Mountz Inc Insert the SD Card into EZtorQ-III. G. When you turn on the power, the firmware upgrade will proceed automatically. -
Page 26: Calibration And Repairs
Mountz Inc. features an experienced calibration and repair staff. Our trained technicians can calibrate and repair most any tool. Mountz provides rapid service with quality that you can trust as we offer two state-of-the- art calibration lab and repair facilities that can calibrate up to 20,000 lbf.ft. Since 1965, Mountz Inc. has proven in-depth knowledge of torque is reflected in our tool’s craftsmanship and our ability to provide solutions to both...
