P T T
P T T

Operating Instructions

Version 5.1
September 11, 2008
For Item # 072999 and # 072995
Corporate Headquarters: 1080 North 11th Street, San Jose, CA 95112
Phone: (408) 292-2214 Fax: (408) 292-2733
www.etorque.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTT-2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Mountz PTT-2000

Summary of Contents for Mountz PTT-2000

  • Page 1: Operating Instructions

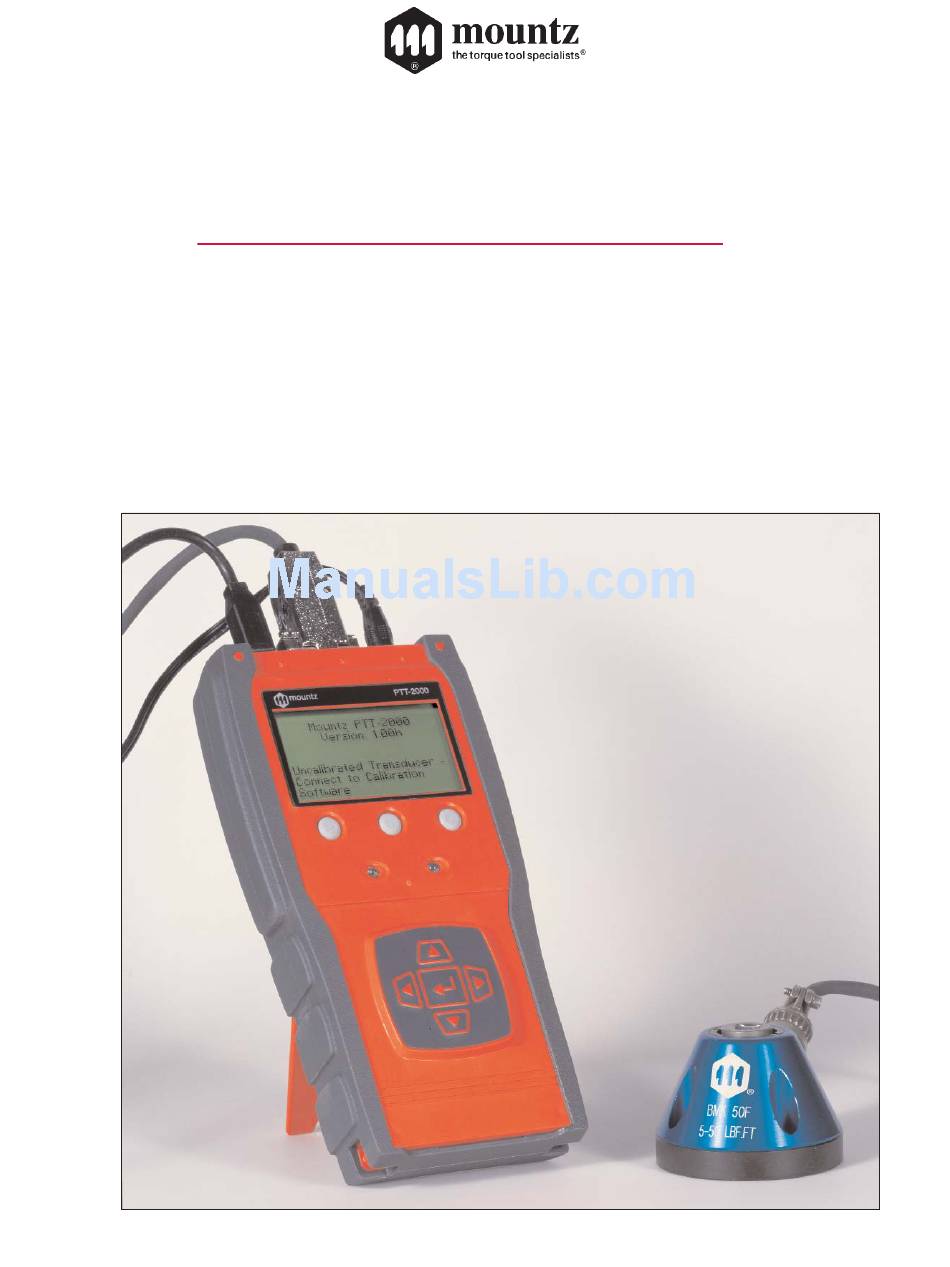

    P T T P T T Operating Instructions Version 5.1 September 11, 2008 For Item # 072999 and # 072995 Corporate Headquarters: 1080 North 11th Street, San Jose, CA 95112 Phone: (408) 292-2214 Fax: (408) 292-2733 www.etorque.com...

  • Page 2: Table Of Contents

     Recommended for all hand screwdrivers, wrenches or power tools.  Provides “EZ-Plug & Play” with Mountz Transducers. Features “ARCII” technology, an instant auto-recognition system of the transducer connected to the PTT.  Selection of seven operating modes: (Track, Peak, First Peak, Audit, Bolt Audit*, Spindle Audit and Torque + Angle).

  • Page 3: External Connections

    TTL output for angle lags Angle Lead by 90 degrees +5 Volt Angle Supply Data for “Smart” Transducer Proprietary ARCII protocol for smart transducers from Mountz U s e r I n t e r f a c e Display Screen Displays the menu structures, torque readings, operating mode, torque units.

  • Page 4: Quick Menu Structure

    Main Display Screen Q u i c k M e n u S t r u c t u r e Peak 1500 Hz 28.972 lbf.in Menu Main Menu Units Mode Setup Filter 3000 Hz ozf.in Track* Tolerance 2000 Hz lbf.in Peak* Auto Clear...

  • Page 5: Screen Display

    S c r e e n D i s p l a y When the Torque Analyzer is turned on and it is connected to a Mountz "Smart" Torque Transducer with ARCII technolo- gy it will display a Screen similar to that below for 5 seconds and then go into Reading Mode. This will also happen if a "Smart"...

  • Page 6: Menu Selections

    R e a d i n g S c r e e n Track 3000 Hz +0.0000 Lbf.in Menu Tool Tests M e n u S e l e c t i o n s Pressing the "Menu" Key will present the following Screen: 1.
  • Page 7 M e n u S e l e c t i o n s Selecting Units 1. Select Units by highlighting and pressing Enter. 2. Use the Scroll Up or Down key to toggle through the Unit options. 3. Press Enter key to select a Filter Setting. For Torque Sensors For Force Sensors Note:...

  • Page 8: Mode Selections

    M o d e S e l e c t i o n s Track With a torque sensor, this mode constantly tracks increasing or decreas- Track 1500 Hz ing torque variations. Use this mode to monitor varying torque on motors and machinery.

  • Page 9: Environmental Conditions

    M o d e S e l e c t i o n s Bolt Audit* This feature is designed for auditing the torque applied to a fastener for Bolt Audit 1500 Hz a test such as determining relaxation after a fastener has been tight- ened.

  • Page 10: Set-Up Selections

    S e t u p S e l e c t i o n s Tolerance The Tolerance parameters control the Go and No-Go signal response (see Go / No Go Signal section). The user sets a lower and upper torque thresholds to get a visual and audible warning signals when these limits are reached or breached during operation.
  • Page 11 Selecting Clear 1. Press the "Menu" Button. 2. Use the Scroll Down key and select Setup by highlighting and pressing Enter. 3. Use the Scroll Up or Down key to toggle through the Setup options. 4. Press Enter key to select a setup setting for Auto Clear. Tolerance Filter Auto Clear...
  • Page 12 1. Use the Scroll Left or Right key to toggle between Angle Threshold and Angle Setup Angle Polarity. Angle Threshold: 2 deg 2. Use the Scroll Up or Down key to toggle through the degree values (0.25-5) Angle Polarity: Normal for Angle Threshold.
  • Page 13 First Peak The display holds the first detected torque peak applied. Before any torque is applied, the display show dashes in the torque value area. Once peak is detected, the display will show the torque value. If a second peak is detected then it will be displayed in the lower right (in small reverse video).
  • Page 14 Bolt Audit* This feature is designed for auditing the torque applied to a fastener for a test such as determining relaxation after a fastener has been tightened. An angle enabled transducer is required to operate in this Mode. Note: * The Bolt Audit Mode is an additional feature that is only available with PTT Bolt Audit model (Item # 072995) Selecting Bolt Audit 1.
  • Page 15 Spindle Audit This feature is designed for auditing the operation of a Spindle Tool. An angle enabled transducer is required to oper- ate in this Mode. The unit checks the Torque and Angle setting of a Spindle. When the spindle stops, the PTT will dis- play and record the final angle, and final peak torque.
  • Page 16 Direction Allows an operator to set the direction for capturing the torque readings: (Clockwise, Counter Clockwise and Both directions). When performing a dead weight calibration, the direction should be set for both directions. Selecting Direction 1. Press the "Menu" Button . 2.
  • Page 17 Selecting Clock 1. Press the "Menu" Button. 2. Use the Scroll Down key and select Setup by highlighting and pressing Enter. 3. Use the Scroll Up or Down key to toggle through the Setup options. 4. Press Enter key to select a setup setting for Clock. Angle Setup Filter T+A Threshold...

  • Page 18: Transducer Calibration Reminder

    A R C I I ( A u t o R e c o g n i t i o n C h i p ) The PTT provides “EZ-Plug & Play” with Mountz Transducers that feature “ARCII” technology, an instant auto- recognition system of the transducer connected to the PTT.

  • Page 19: Power On & Battery Operation

    P o w e r O n & B a t t e r y O p e r a t i o n There is no switch to turn on the PTT unit. Just press a key and the unit will power on. When the unit has not been used for a designated time frame it will enter "Sleep Mode"...
  • Page 20 9. The USB drivers will begin to be installed. If a pop up window appears that the product has not passed the Windows Logo Testing, just click "Continue Anyway". Mountz has tested the product with both the Home version and Professional version of XP. You will not get this message if you are installing under Windows 2000.

  • Page 21: Tool Test Operation

    To o l Te s t O p e r a t i o n The Tool Test mode contains the follow fields. A. Test Name B. Sensor Model C. Tool Serial No. D: Sensor Type E. Mode F. Units G.
  • Page 22 Download Results - Retrieves the results of a tool test after it has been run. It will offer a change to add further notes to the test at this point. The results will save in the PC in a location of your choice. There will be an "Operator Folder" with the name of the Operator entered in the upper portion of the Tool Test Screen.
  • Page 23 The Tool Test also supports Load Cells in Peak mode. See the screen shot below as an example of a Tool Test using a Load Cell. Connectors for connecting the PTT to Load Cells are available from Mountz. These are pre-wired except for the Load Cell connections. They are:...
  • Page 24 Using the Tool Tests on the PTT Once 1 or more tool tests are sent to the PTT meter the operator can press Peak 1500 Hz the "Tool Test" soft key on the PTT and following Menu choices will appear: 33.785 lbf.in Select...

  • Page 25: Angle Test Operation

    A n g l e Te s t O p e r a t i o n All angle tests must be entered using the PC Windows based Calibration Program. Once this is done the tests can be accessed using the soft key on the PTT. Entering data for the Angle Test is done using the PC Windows based Calibration Program.
  • Page 26 The purpose of the bolt audit function is to report the degree of movement from the initial torque threshold to the final torque threshold. The torque analyzer will display the final torque threshold and the total angle displacement, which has occurred from the initial torque threshold and final torque threshold.

  • Page 27: Transducer Clibration

    A 2-point calibration should work well in all but exceptional circumstances. Once the calibration is complete the calibration data will be stored in a Mountz "Smart" transducer using the ARCII proto- col. For non-smart transducers calibration data will be stored in the PTT internal memory. A sophisticated error correction algorithm assures that the data written to and retrieved from memory is always correct.
  • Page 28 Note for Force & Load Sensors When performing a Load Cell Calibration, if choosing a 2 point calibration, load at 10% and 100%. If performing a 3 point calibration and load at load at 10%, 50% and 100%. The calibration program will guide you through the calibration by text in the information box. By selection in the Calibration Type you can select Compression Only, Tension Only or Both if the Load cell supports this.

  • Page 29: Ptt Calibration

    This procedure is used to calibration the gain of the PTT to a high degree of accuracy. This allows all PTT to exhibit the same accuracy with a Mountz "Smart" transducer as the meter that was used to perform the calibration. The PTT Calibration requires special equipment. This equipment is available from Mountz for those that require it as an optional item.
  • Page 30 The data is collected is available in: The results will be saved in the PC in C:\Program Files\Mountz\ Torque Meter Interface Program \Tool Test Results\Operator Folder where the "Operator Folder" will be the name of the Operator entered in the upper portion of the Tool Test Screen.
  • Page 31 The Real-Time button on the Data Logging screen allows a user to connect the PTT to a PC and get readings sent to the PC, in Real-Time, which can be printed to a printer or saved as an Excel Spread Sheet. The screen reading is sent from the PTT when Auto clear takes place or when Enter is pressed if the meter is in Manual Clear mode.
  • Page 32 You will see there is a button on the right side of the screen, above the graph area, labeled "Real-time...", see the Figure below. Clicking this button will open another Window used to collect the Real-Time data. See the Figure below for a screen shot of this Window.

  • Page 33: Torque Meter Bootloader

    To r q u e M e t e r B o o t l o a d e r This program is used to update the code in the PTT unit. This program does not automatically install as the Interface Program does.
  • Page 34 To update the firmware click the "Boot load HEX file to device.." button. Locate the HEX file update. It will be in the Hex Files folder. The file is named Mountz App.hex. This is the current application so there is no need to update but if the operator chooses he/she can reload it to see how this feature works.

  • Page 35: Accessory - Bar Code Reader

    PTT allows a Bar Code reader to be connected to the PTT. Mountz PTT units with serial numbers that start with digits "07" and later feature a new firmware and hardware. Only models with serial numbers 07-01-001 or later can operate with the Bar Code Reader of Multiplexer. Prior PTT versions cannot support the Bar Code Reader and Multiplexer.
  • Page 36 Once the Tool Test or Tool Tests are loaded into the analyzer, the Tool Test can be selected by scanning the bar code rather than selecting the test using the menu on the Analyzer. Press the Tool Test "Soft" key (the middle key below the display) once and then press Enter.

  • Page 37: Accessory - Multiplexer

    Note: Starting April 2007, PTT models can be used with this Multiplexer. Mountz PTT units with serial numbers that start with digits "07" and later feature a new firmware and hardware. Only models with serial numbers 07-01-001 or later can operate with the Bar Code Reader of Multiplexer. Prior PTT versions cannot support the Bar Code Reader and Multiplexer.

  • Page 38: Force & Load Sensors

    For Tool Test you can define a type of parameter criteria, including tolerance settings for a specific function. (See page 18 for setting up Tool tests). For questions related to Force use, please study the manual or you can call a Mountz representative for assistance.

  • Page 39: Mountz Service Locations

    Anaheim, Boston, Charlotte, Chicago, Cleveland, Dallas, El Paso, Los Angeles, Minneapolis, Nashville, Phoenix, Seattle, San Jose, Toronto Mountz Mexico SA de CV Main Office & Service Center Av. Cristobal Colon #15343 Col. Paseos de Chihuahua Chihuahua, Chih. Mexico CP 31125...

Table of Contents
