Mountz EC Series Calibration Procedure
Dc torque control system
Hide thumbs
Also See for EC Series:
- Operation manual (39 pages) ,
- Operating instructions manual (60 pages)
Related Manuals for Mountz EC Series
Summary of Contents for Mountz EC Series

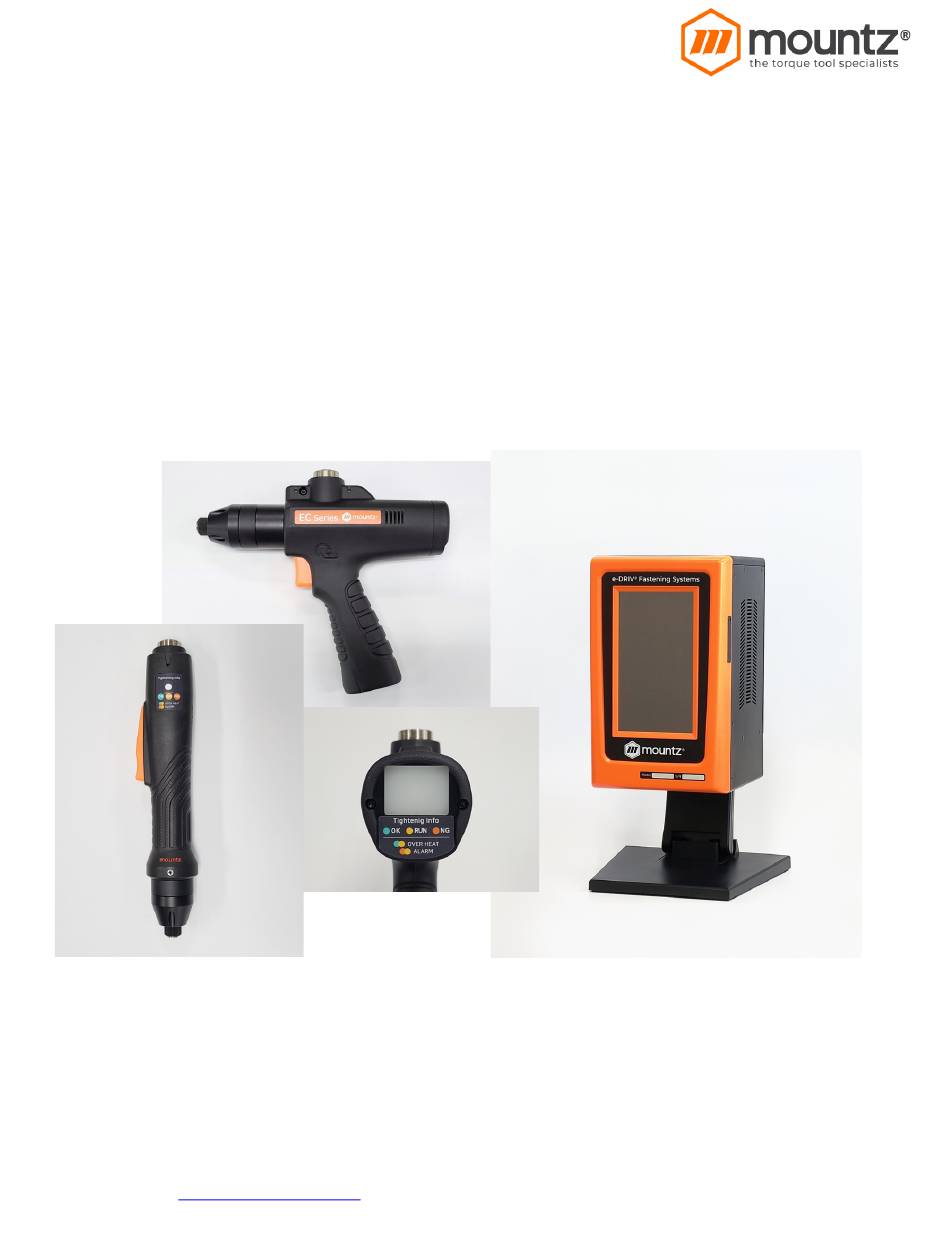

- Page 1 Revision: 1.0 Dec 3rd, 2020 EC-Series DC Torque Control System Calibration Procedure www.mountztorque.com – 1080 N 11 St - San Jose CA 95112–- 408.292.2214...
- Page 2 GENERAL SAFETY RULES WARNING! Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. SAVE THESE INSTRUCTIONS Work Area Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Page 3 tool. If damaged, have the tool serviced before using it. Many accidents are caused by poorly maintained tools. Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool. SERVICE Tool service must be performed only by qualified personnel.
- Page 4 READINGS FROM FACTORY MIGHT SHOW DIFFERENT RESULTS 2. Tool Preset @ Specific Torque Setting @ the time of purchase This option can be selected by the customer when acquiring a new system. Mountz Service Department would generate an ISO17025 traceable calibration certificate...
- Page 5 Tool Compensation is stored on the Controller Memory NOTE: It is Mountz's recommendation to a customer to periodically verify torque accuracy of EC-Series DC Control System with an ISO17025 Certified torque verification meter and ensure the quality of their process.
- Page 6 Torque calibration using Controller’s Software When the reading on the torque meter master is lower than the setting on the tool, increase the calibration value more than 100(%) which is basic on production. To increase the output torque 5% more, key in 105(%). The calibration value works through a whole range of torque.
- Page 7 Standard test conditions on factory calibration used by Mountz. Rundown screw size, joint type, and filter Tool Rundown adaptor Low Pass Filter MD2601 M3 Allen, Hard joint 200Hz MD2602, MD2604 M3 Allen, Hard joint 500Hz MD2611, MD2616 M4 Allen, Hard joint...
- Page 8 www.mountztorque.com – 1080 N 11 St - San Jose CA 95112–- 408.292.2214...
