ASSEMBLY INSTRUCTION
KORI COFFEE TABLE
ITEM CODE 60250
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
1200mm
1-10
Item Code: 60250
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture KORI 60250
Summary of Contents for Amart Furniture KORI 60250

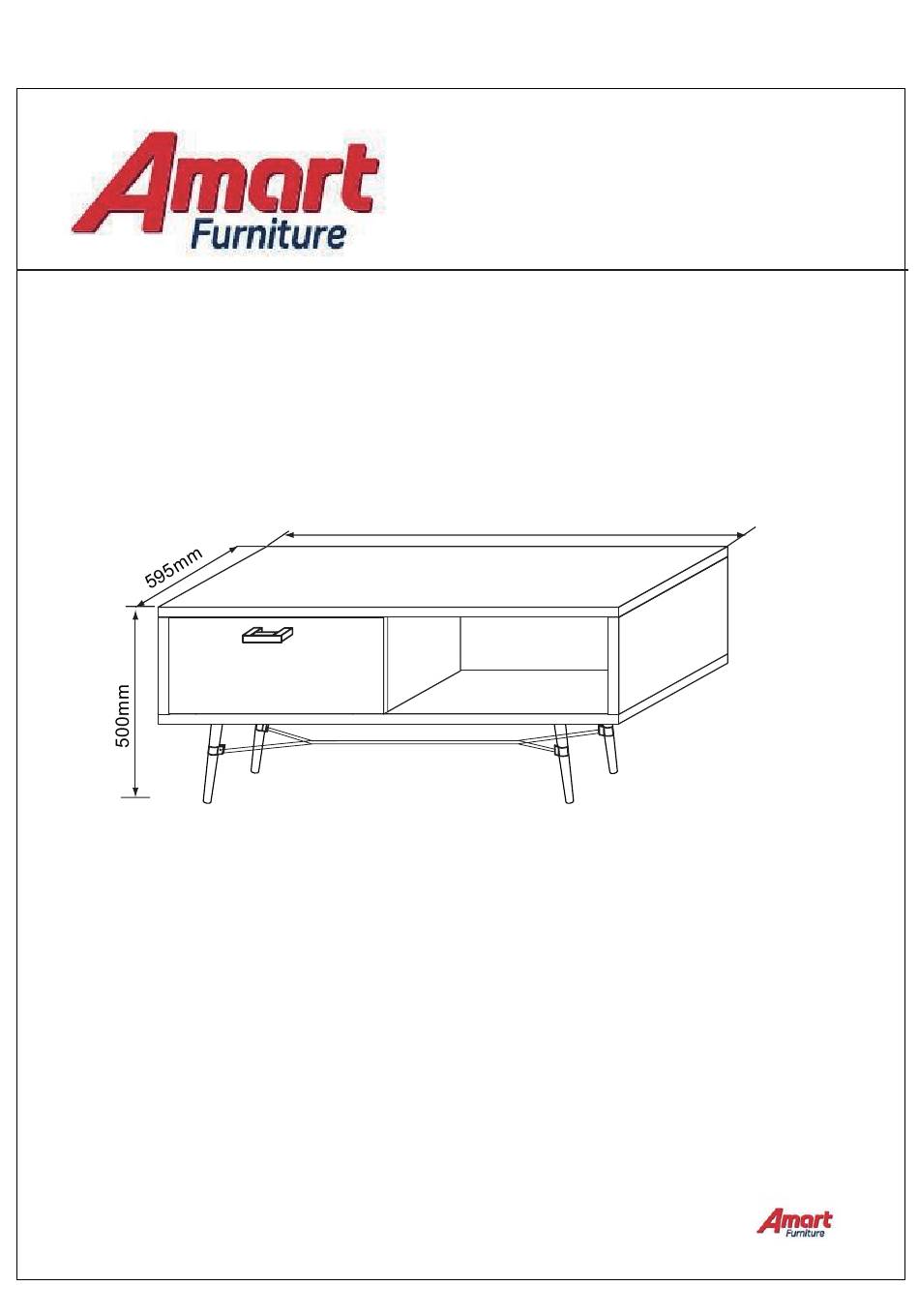

- Page 1 ASSEMBLY INSTRUCTION KORI COFFEE TABLE ITEM CODE 60250 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 1200mm Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
- Page 2 2000MM 2017-6-10 Item Code: 60250 2-10...
- Page 3 2017-6-10 Item Code: 60250 3-10...
- Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
- Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 5-10...
- Page 6 (MM) 1160x194x15 370x194x18 590x194x18 590x194x18 1200x595x18 1200x595x18 330x140x15 330x140x15 140x515x15 524x324x2.7 585x186x15 Item Code: 60250 2017-6-10 6-10...
- Page 7 1xCL 1xCR STEP 1:Install runner (CL)&(CR) to panel (2)&(3) with screws (N) . Please pay attention to screw location as shown in diagram. STEP 2:Fix panel (1) between side panel (2)(3)(4), using dowel (B). Item Code: 60250 2017-6-10 7-10...
- Page 8 11xD STEP 3:Fix bottom panel (5) to the body with screw(D). 20xF STEP 4:Fix metal leg(E) to bottom panel (5) with screw(F). Item Code: 60250 2017-6-10 8-10...
- Page 9 STEP 5: Fix metal tube(H) to leg with screw (J). 12xA 12xC STEP 6:Attach panel (6) to the body with dowel (B) and cam lock parts (A)&(C). TURN OVER Item Code: 60250 2017-6-10 9-10...
- Page 10 1xDL 1xDR STEP 7:Install drawers as shown in diagram. 1A:Fix cam lock (A) and handle(K) to 2:Join side panels (7)(8) and back drawer front (11) panel(9) with screws (L). 3A:Put bottom panel (10) into groove 4:Install runner(DL)(DR) to the bottom of drawer of panel(7)(8)and (9).
- Page 11 STEP 1: Fix bracket to back panel using screws M3.5*14MM . NOTE are used. Failure to do so may result in personal injury or cause property damage if the product topples over. Please note that the screws are only suitable for plasterboard wall materials, please contact local hardware store for corresponding screws for other wall materials.
- Page 12 STEP 2: Fix bracket onto the wall using screws M4*30MM. Furniture top Wallboard Bracket...
- Page 13 SAFETY BRACKETS INSTRUCTIONS 1.Attach a bracket to the wallboard with the long screws provided. 2.Attach a bracket to the furniture frame under the top with the short screws provided. 3.Move the furniture into its final position. Thread a strap through the bracket as shown in the illustration, tighten strap until snug.
-
Page 14: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
