ASSEMBLY INSTRUCTION
KORI DINING TABLE
ITEM CODE 60242
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture Ewing Road, Customer Service Free call 1800 351 084

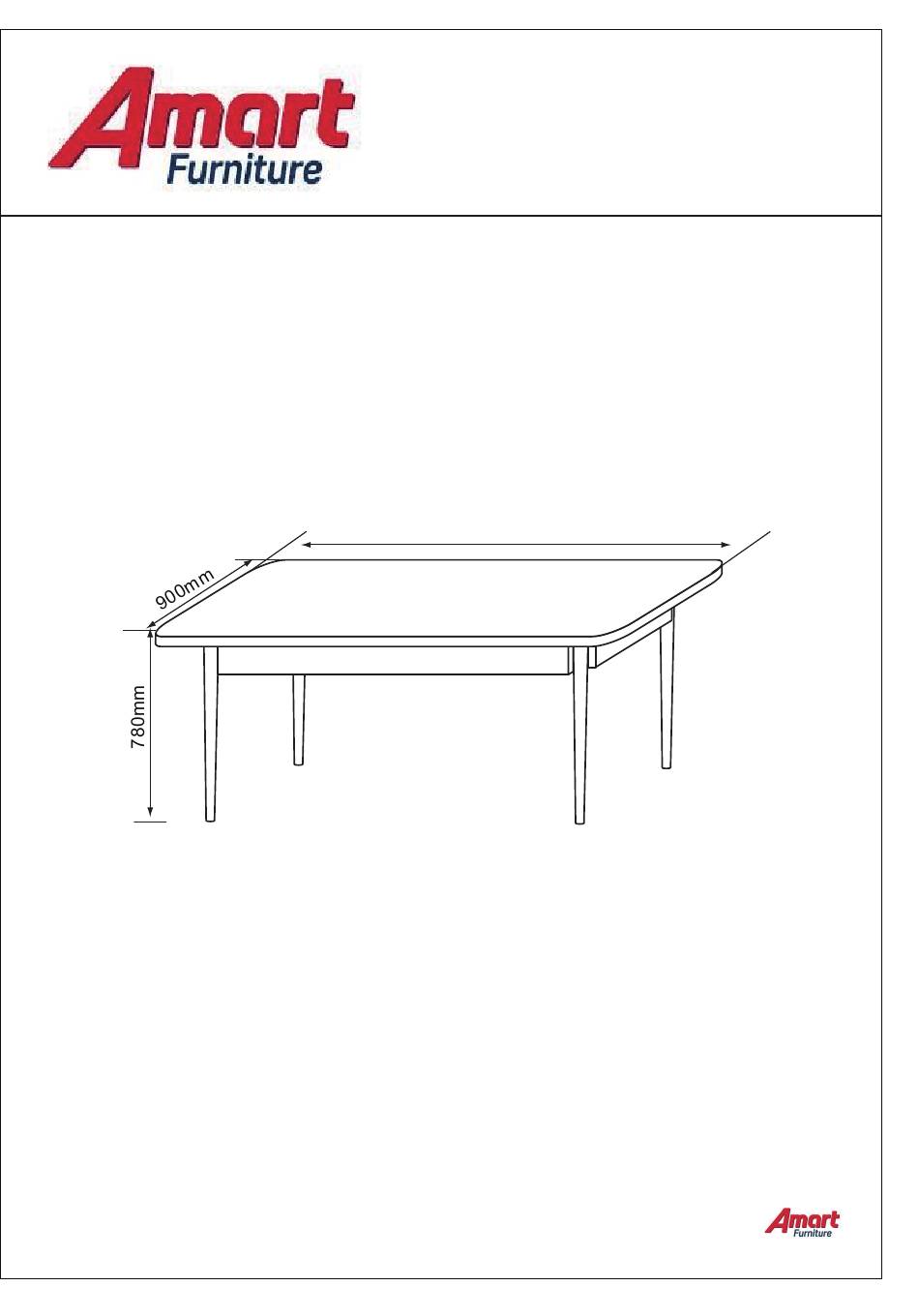

1800mm
1-10
Item Code: 60242
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture KORI 60242
Summary of Contents for Amart Furniture KORI 60242
- Page 1 ITEM CODE 60242 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture Ewing Road, Customer Service Free call 1800 351 084 1800mm Imported by Pty Ltd, Qld, Brisbane Australia.
- Page 2 2000MM 插入组装时间 插入组装时间 插入组装产品需要的人数 插入组装产品需要的人数 添加或者删除所 2-10 2017-6-10 Item Code: 60242...
- Page 3 Item Code: 60242 2017-6-10 3-10...
- Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
- Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 5-10...
- Page 6 (MM) 1800x900x25 1420x70x25 625x70x25 2014-6-10 6-10 Item Code: 60242...
- Page 7 16xD 16xA 16xB STEP 1: Fix cam pin(F) to top panel(1). Fix metal leg (C) to top panel(1) with screw(A) and washer (B)& (D) using wrench(E). 2017-6-10 7-10 Item Code: 60242...
- Page 8 STEP 2:Put panel(2)(3) onto top . 2017-6-10 Item Code: 60242 8-10...
- Page 9 16xA 16xB 16xD STEP 3:Fix metal leg to panel (2)(3) with screw(A)and washers (B)(D) using wrench(E). After locating all screws ,finally fasten screws tightly. ① Item Code: 60242 2017-6-10 9-10...
- Page 10 STEP 4:Fix panel(2)(3) to top with cam lock part(F)and(G). ② 2017-6-10 Item Code: 60242 10-10...
- Page 11 STEP 4:Fix metal supporter(4) to top with screw(A)and washers (B)(D) using wrench(E). ③ ASSEMBLY COMPLETE 2017-6-10 Item Code: 60242 10-10...
-
Page 12: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
