Amart Furniture KORI 58236 Assembly Instruction Manual

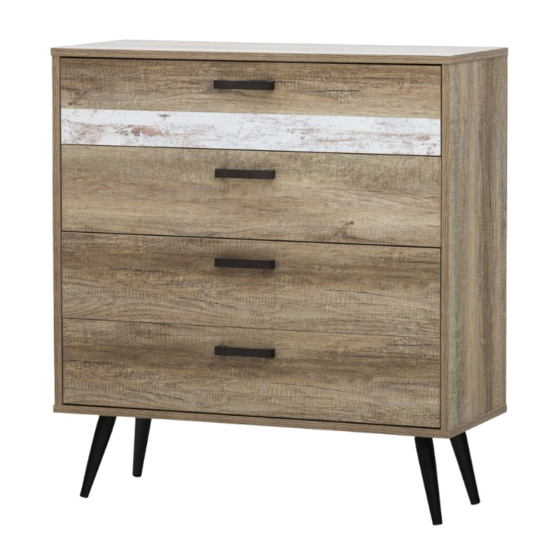

4 drawer tall chest
Hide thumbs

Advertisement

Quick Links

Download this manual
1037MM
Imported by
Amart Furniture
For any assistance with assembly or for missing parts please phone
Amart Furniture ,
950MM
Pty Ltd, Qld, Brisbane Australia.
Customer Service Free call 1800 351 084
ASSEMBLY INSTRUCTION
KORI 4 DRAWER TALL CHEST
ITEM CODE 58236
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
395MM
1
58236

Advertisement

loading
Need help?

Need help?

Do you have a question about the KORI 58236 and is the answer not in the manual?

Questions and answers

Related Manuals for Amart Furniture KORI 58236

Summary of Contents for Amart Furniture KORI 58236

  • Page 1 KORI 4 DRAWER TALL CHEST ITEM CODE 58236 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 395MM 950MM 1037MM...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.
  • Page 3 EXPLODED EXAMPLE LEFT SIDE PANEL RIGHT SIDE PANEL TOP PANEL BACK PANEL BOTTOM PANEL DRAWER LEFT PANEL DRAWER RIGHT PANEL DRAWER BACK PANEL DRAWER BOTTOM PANEL DRAWER FRONT PANEL DRAWER FRONT PANELS DRAWER SUPPORT BAR CROSSING BAR BACK CROSSING BAR cam pin cam lock screw...
  • Page 4 (MM) 795x394x18 795x394x18 950x395x18 940x41.3x2.5 950x395x18 330x140x15 330x140x15 850x1140x15 861x322x2.5 903x191x15 903x191x15 334x60x15 910x750x15 795x140x15 58236...
  • Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 58236...
  • Page 6 STEP 1: Fix runners to left side panel with screws .Fix runners to right side panel with screws .Insert dowel to left side panel and right side panel . Bottom edge Front veneer edge Front veneer edge STEP 2: Fix cam pin to left side panel and right side panel .
  • Page 7 STEP 3: Insert dowel to crossing bar .Attach crossing bar left side panel and right side panel using cam locks . Back veneer edge Left edge Bottom edge Bottom edge STEP 4: Fix cam pin to top panel Front veneer edge Left veneer edge 58236...
  • Page 8 STEP 5: Insert dowel to back crossing bar .Attach top panel to existing unit with cam locks Back veneer edge Left veneer edge Bottom edge Left veneer edge Bottom edge Bottom edge STEP 6: Attach bottom panel to existing unit using screws Back veneer edge Left veneer edge 58236...
  • Page 9 STEP 7: Fix metal plates to bottom panel with screws Left veneer edge STEP 8: Fix legs to the metal plates Left veneer edge 58236...
  • Page 10 STEP 9: Attach drawer left panel ,drawer support bar drawer right panel to drawer back panel with screw . Insert panel to the body of drawer. Bottom edge Bottom edge Bottom edge Bottom edge Bottom edge Front edge Front edge STEP 10: Fix cam pin to drawer front panel .Fix handles...
  • Page 11 STEP 11: Install runner to bottom of drawer with screws . DR DL 10 11 STEP 12: Assemble drawers into the body 58236...
  • Page 12 STEP 13: Attach back panels to the exisiting unit using some of screws .Fix filler to join back panels Left veneer edge STEP 14: Attach back panels to existing unit using all rest screws DO NOT PUSH OR DRAG THIS FURNITURE – IT WILL CAUSE DAMAGE TO THE LEGS Left veneer edge 58236...
  • Page 13 ASSEMBLY COMPLETE DO NOT PUSH OR DRAG THIS FURNITURE – IT WILL CAUSE DAMAGE TO THE LEGS 58236...
  • Page 14 STEP 1: Fix bracket to back panel using screws M3.5*14MM . Put plastic string into bracket. NOTE - This product must be fixed to a wall. Please ensure the correct wall fixings are used. Failure to do so may result in personal injury or cause property damage if the product topples over.
  • Page 15 STEP 2: Fix bracket onto the wall using screws M4*30MM. Join wallboard and the furniture with plastic sting. Furniture top Wallboard Bracket 58236...

  • Page 16: Product Care

    PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
