Imported by
Amart Furniture
For any assistance with assembly or for missing parts please phone
Amart Furniture,
580MM
565MM
Pty Ltd, Qld, Brisbane Australia.
Customer Service Free call 1800 351 084
ASSEMBLY INSTRUCTION

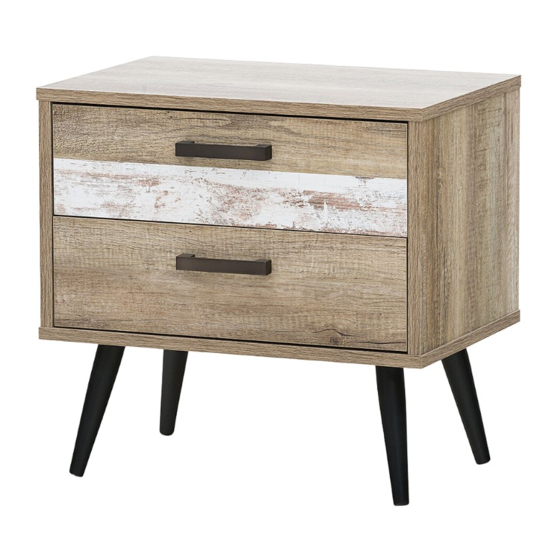

KORI 2 DRAWER BEDSIDE
ITEM CODE 58235
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
395MM
1
58235
Advertisement
Related Manuals for Amart Furniture KORI 58235
Summary of Contents for Amart Furniture KORI 58235
- Page 1 KORI 2 DRAWER BEDSIDE ITEM CODE 58235 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 395MM 580MM 565MM Imported by Pty Ltd, Qld, Brisbane Australia.
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. - Page 3 EXPLODED EXAMPLE LEFT SIDE PANEL RIGHT SIDE PANEL cam pin cam lock dowel TOP PANEL BACK PANEL M7x39mm M15x12mm M8x30mm BOTTOM PANEL Ax12 Bx12 DRAWER LEFT PANEL DRAWER RIGHT PANEL screw metal plate for leg DRAWER BACK PANEL DRAWER BOTTOM PANEL M34x200mm M5x40mm M72x75mm...
- Page 4 (MM) 394x324x18 394x324x18 580x395x18 570x356x2.5 580x395x18 330x110x15 330x110x15 483x110x15 491x322x2.5 533x154x15 533x154x15 58235...
- Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 58235...
- Page 6 STEP 1: Fix runners to left side panel and right side panel CL CR with screws .Insert dowel to left side panel and right side panel . Bottom edge Front veneer edge Front veneer edge STEP 2: Fix cam pin to top panel .
- Page 7 STEP 3: Attach top panel to left side panel and right side panel with the cam locks Back veneer edge Left veneer edge Bottom edge Bottom edge STEP 4: Attach bottom panel onto existing unit with screws Back veneer edge Left veneer edge 58235...
- Page 8 STEP 5: Fix metal plates to bottom panel with screws Left veneer edge STEP 6: Fix legs to the metal plates Left veneer edge 58235...
- Page 9 STEP 7: Attach drawer left panel and drawer right panel drawer back panel with screw . Insert panel the body of drawer. Bottom edge Bottom edge Bottom edge Bottom edge Bottom edge Front edge Front edge Front edge STEP 8: Fix cam pin to drawer front panel top and drawer front panel bottom .Fix handles...
- Page 10 STEP 9: Install runner to bottom of drawer with screws . DR DL 10 11 STEP 10: Slide drawers into the unit. 58235...
- Page 11 STEP 11: Attach back panel onto existing unit with screws Right veneer edge ASSEMBLY COMPLETE DO NOT PUSH OR DRAG THIS FURNITURE – IT WILL CAUSE DAMAGE TO THE LEGS 58235...
- Page 12 STEP 1: Fix bracket to back panel using screws M3.5*14MM . Put plastic string into bracket. NOTE - This product must be fixed to a wall. Please ensure the correct wall fixings are used. Failure to do so may result in personal injury or cause property damage if the product topples over.
- Page 13 STEP 2: Fix bracket onto the wall using screws M4*30MM. Join wallboard and the furniture with plastic sting. Furniture top Wallboard Bracket 58235...
-
Page 14: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
