ASSEMBLY INSTRUCTION

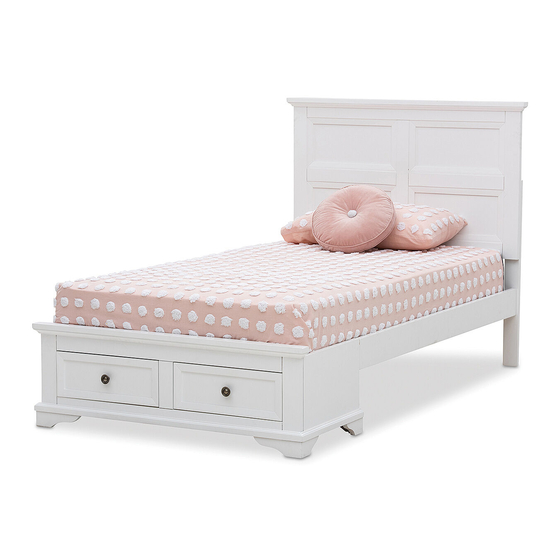

CHANEL LE KING SINGLE BED
ITEM CODE : 64406
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
1
64406

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHANELLE KING 64406 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amart Furniture CHANELLE KING 64406

Summary of Contents for Amart Furniture CHANELLE KING 64406

  • Page 1 ASSEMBLY INSTRUCTION CHANEL LE KING SINGLE BED ITEM CODE : 64406 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.

  • Page 3: Part List

    PART LIST HEADBOARD PANEL (X1) 1190x705x50mm 850x70x25mm HEADBOARD LEG RIGHT (X1) 850x70x25mm HEADBOARD LEG LEFT (X1) 1155x507x400mm FOOTBOARD (X1) 1588x120x50mm (X2) SIDE RAILS MIDDLE RAIL 1384x60x20mm (X1) 278x40x40mm SUPPORT LEGS (X3) SLATS 1066x60x18mm (X3) MIDDLE SLATS 1066x60x18mm (X10) HARDWARE LIST A.
  • Page 4 With two people carefully lay the Footboard on to a sheet or piece of cardboard. Attach adhesive felt pad onto the legs. With two people carefully stand the Footboard upright. 64406...
  • Page 5 STEP 1 Attach the handle Attach handle in front of drawers, Take out handle from drawer, use on the drilling hole position by using screwdriver removing the bolts. screwdriver to tighten bolts up. STEP 2 Tighten the headboard leg 2a, 2b to headboard panel 1 with bolts A, spring washer F and flat washer E. 64406...
  • Page 6 STEP 3 Attach side rails 4 to headboard legs 2a, 2b and footboard 3 by interlocking the brackets on the side rail with the bolts C on the headboard/footboard and then push down to lock in place STEP 4 Tighten the slats 7 and middle rail 5 to all support legs 6 with bolts B. Assembly these components out of bed frame.
  • Page 7 STEP 5 Use two people to place H frame onto 4. Attach H frame onto 4 using the bolt (A), tighten it up by using an allen key ( G). H frame STEP 6 Attach 8 onto 4 using the screws (D), tighten it up by using an screwdriver. 64406...

  • Page 8: Important Note

    ASSEMBLY IS COMPLETE IMPORTANT NOTE: Once the bed is positioned and the support legs are adjusted to touch floor, the slats can then be laid down and secured before putting on the mattress. DO NOT push or pull the bed if there is a need for re-positioning as this may result in broken support legs for the centre rail.
  • Page 9 IMPORTANT: CARE GUIDE FOR YOUR TIMBER FURNITURE Congratulations! You have just purchased a quality product from Amart furniture. Please read on for important information regarding your purchase… A multi-step finish is applied to all our furniture, but all wood comes from nature.
