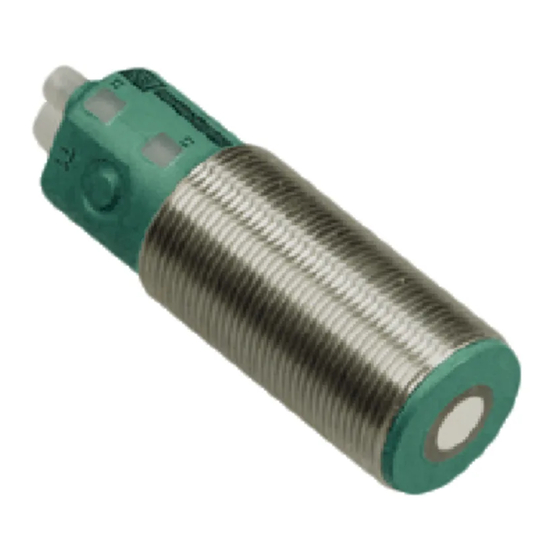

Pepperl+Fuchs UC500-30GM-IUEP-IO-V15 Manual

Ultrasonic sensor
Model Number
UC500-30GM-IUEP-IO-V15
Single head system
Features
• IO-link interface for service and
process data
• Programmable via DTM with
PACTWARE
• Switch output and analog output
• Selectable sound lobe width
• Latching mode selectable
• Window function can be selected
• Synchronization options
• Temperature compensation
Diagrams
Characteristic response curve
Distance Y [mm]
200
flat surface
100 mm x 100 mm
150
100
50
0
-50
-100
-150
round bar, Ø 25 mm
-200
0 100 200 300 400 500 600 700 800
Y
wide sound lobe
X
narrow sound lobe
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group USA: +1 330 486 0001
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com
Technical data
General specifications
Sensing range
Adjustment range
Unusable area
Standard target plate
Transducer frequency
Response delay
Memory
Non-volatile memory
Write cycles
Indicators/operating means
LED green
LED yellow 1
LED yellow 2
LED red
Electrical specifications
Operating voltage U
No-load supply current I
Power consumption P
Time delay before availability t
Interface
Interface type
Protocol
Transfer rate
Cycle time
Mode
Process data witdh
SIO mode support
Input/Output
Input/output type
0 Level
1 Level
Input impedance
Output rated operating current
Pulse length
Pulse interval
Synchronization frequency
Common mode operation
Multiplex operation
Output
Output type
Rated operating current I
Voltage drop U
d
Resolution
Deviation of the characteristic curve
Repeat accuracy
Switching frequency f
Range hysteresis H
Load impedance
Temperature influence
900 1000 1100
Distance X [mm]
Ambient conditions
Ambient temperature
Storage temperature
Mechanical specifications
Connection type
Protection degree
Material
Housing
Transducer
Mass
Factory settings
Output 1
Germany: +49 621 776 4411
fa-info@de.pepperl-fuchs.com
30 ... 500 mm
50 ... 500 mm
0 ... 30 mm
100 mm x 100 mm
approx. 380 kHz
Ex works settings: ≤ 45 ms
configurable
EEPROM
100000
solid: Power on
flashing: Standby mode or IO link communication
solid: Object in evaluation range
flashing: Learning function, object detected
solid: Object in evaluation range
flashing: Learning function, object detected
solid red: Error
red, flashing: program function, object not detected
10 ... 30 V DC , ripple 10 %
B
15 ... 30 V voltage output
≤ 60 mA
0
≤ 1 W
0
≤ 100 ms
v
IO-Link
IO-Link V1.0
Acyclical: typical 240 Bit/s
min. 13.2 ms
COM 2 (38.4 kBaud)
16 bit
yes
1 synchronization connection, bidirectional
0 ... 1 V
4 V ... U
B
> 12 kΩ
< 12 mA
0.5 ... 300 ms (level 1)
≥ 14 ms (level 0)
≤ 70 Hz
≤ 90 Hz / n , n = number of sensors , n ≤ 10
(factory setting: n = 5 )
1 push-pull (4 in 1) output, short-circuit protected, reverse
polarity protected
Current output 4 mA ... 20 mA or
voltage output 0 V ... 10 V configurable
200 mA , short-circuit/overload protected
e
≤ 2.5 V
current output: evaluation range [mm]/3200 but ≥0.05 mm
voltage output: evaluation range [mm]/4000 but ≥0.05 mm
≤ 0.2 % of full-scale value
≤ 0.1 % of full-scale value
≤ 11 Hz
1 % of the adjusted operating range (default settings),
programmable
current output: ≤ 300 Ohm
Voltage output: ≥ 1000 Ohm
≤ 1.5 % from full-scale value (with temperature
compensation)
≤ 0.2 %/K (without temperature compensation)
-25 ... 70 °C (-13 ... 158 °F)
-40 ... 85 °C (-40 ... 185 °F)
Connector M12 x 1 , 5-pin
IP67
Stainless steel 1.4305 / AISI 303
TPU
Polyamides
epoxy resin/hollow glass sphere mixture; polyurethane foam
66 g
near switch point: 50 mm
far switch point: 500 mm
output function: Window operation mode
output behavior: NO contact
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
UC500-30GM-IUEP-IO-V15
SS
1
