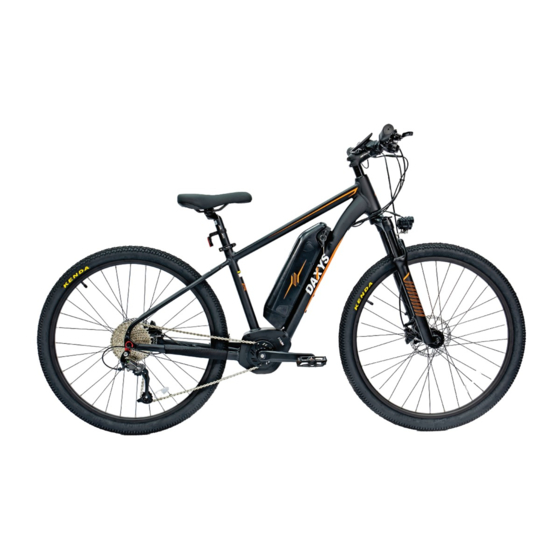

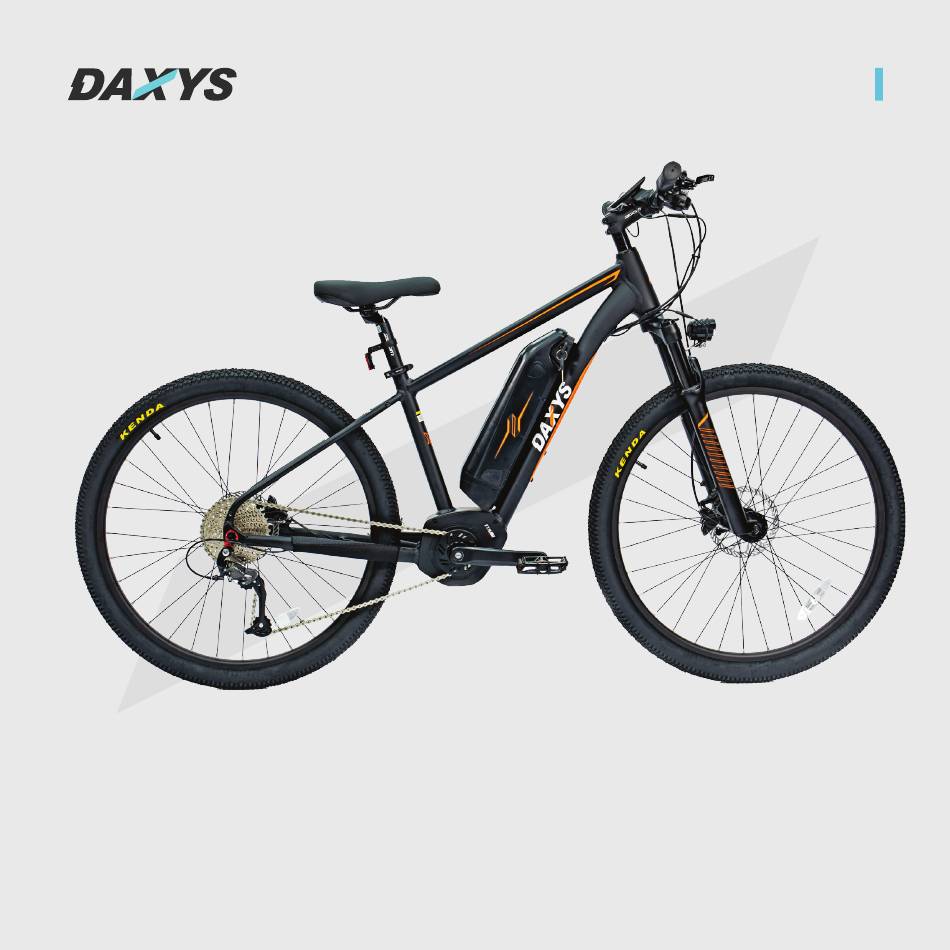

- Page 1 Electric XC Bike USER MANUAL v1.0...
- Page 2 FOX USER MANUAL Please read this manual very carefully before using the product. The manual contains important instructions for the safe use and longevity of your bike.
-
Page 3: Table Of Contents
Guide to Electric Pedal Assistance Modes ..................... 20 Your eBike Keys............................. 20 Maintenance Tyres ................................21 Cleaning Your e bike ........................... 21 Troubleshooting ............................22 F.A.Q’s ................................23 Warranty ................................ 24 Technical Support Contact information ......................25 DAXYS FOX - USER MANUAL... -
Page 4: Riding Introduction
RIDING INTRODUCTION Do not use the product before carefully reading the instructions and understanding the performance of the product; Before cycling, check whether the brakes work. When braking, please brake rear first and then front. Pay attention to the brake tightness. If the brake is too loose, use an Allen wrench to tighten it. Pay attention to increase the braking distance when riding in rain and snow. -
Page 5: Statement Of Responsibility
Please read this manual carefully before using the product and operate in accordance with it. Otherwise, the company will not be responsible for product damage or personal and property losses caused by improper and wrong use. DAXYS FOX - USER MANUAL... -
Page 6: Before You Ride
BEFORE YOU RIDE Perform Regular checks and maintenance as outlined below COMPONENT OR INSPECT BEFORE INSPECT CLEAND AND/OR ADJUST / REPAIR / CONDITION EVERY RIDE PERIODICALLY LUBRICATE TIGHTEN REPLACE (IF NECESSARY) Tyre presure Tyre wear/damage Brake pad adjustment Wheel quick release adjustment Head and tail lights Controls and... -
Page 7: Battery Disposal
• Batteries must be disposed of in accordance with the relevant national environmental protection regulations. • Return batteries to a recycling facility, or an authorised Daxys dealer. • In case of uncertainty contact Daxys customer service department. DAXYS FOX - USER MANUAL... -
Page 8: Meet Your Bike
MEET YOUR BIKE: 1. Stem 2. Controller 3. LCD display 14. Battery 4. Rear brake lever 15. Motor 5. Rear speed shifter 16. Crankset 6. Front brake lever 17. Pedal 7. Headlight 18. Derailleur 8. Shock-absorbing front fork 19. Rear wheel reflector 9. -
Page 9: Display Guide
4. KM/H MP/H 5.Walk mode (ON if visible) 6. Trip / Cadence / Total 7. KM / Miles / RPM 8. Trip time / Total riding time since last reset 9. PAS (pedal assist system) indicator DAXYS FOX - USER MANUAL... -
Page 10: Handlebar Guide
HANDLEBAR GUIDE: 1. Handlebar 2. Other Shifter (Lower Gear) 9. On/Off button 3. Main Shifter (Upper Gear) 10. Down / Decrease button 4. Grip 11. Up / Increase button 5. Front brake lever 12. Set button 6. Stem bolts 13. Rear brake lever 7. -
Page 11: Product Specifications
AC 180-240V, 50/60 Hz, 2A MAX Output DC 42V 3A 126W MAX Battery parameters Battery type 18650 Lithium ion power battery Battery capacity 13Ah Battery rated voltage Under-voltage protection value Over-current protection value 15±1 A Charging time 4-5h DAXYS FOX - USER MANUAL... - Page 12 Parameter Value Electrical Specifications Motor mode Moped Motor type 27.5”/36V/High speed gear / pedal sprocket motor Motor rated power 350W (Standard) Product Features Instrument display Multi-functional color LCD screen Front lighting Brakes Front and Rear hydraulic disc brakes Tyre style Pneumatic tyre Tyre size specification 27.5x1.95”...
-
Page 13: Assembly Instructions
ASSEMBLY INSTRUCTIONS: 1. UNBOXING & TOOLS 1. Unpack your new Daxys Fox eBike. 2. Have the tools and parts ready. 3.Remove packing materials. 4. Remove front wheel. * Be careful not to scratch the paint *Be careful not to cut the tyre... - Page 14 2. HANDLEBAR INSTALLATION 1. Turn the fork in the correct position 2. Remove the 4 front stem bolts, then the stem cover. * Rear brake is on the left, front brake is on the right side of the bike. 3. Place handlebar in stem, put the cap and screw 2 bolts to 90% to help 4.
- Page 15 3. Remove the brake pads protector. 4. Remove the protective plastic cap then put the wheel on and insert the front wheel pin. 5.Tighten using the front wheel screw. 6. Secure with the quick release. DAXYS FOX - USER MANUAL...
- Page 16 4. BRAKE ADJUSTMENT 1. Spin the wheel and listen for rubbing sounds. 2. Loosen A, B with the hex key and adjust brake pads. 3. Spin the wheel to check. 4. Tighten A, B. 5. REFLECTORS 1. Place the back reflector on the seat tube and tighten. 2.
- Page 17 1. Flip the bike in the normal position. 2. Identify Left & Right pedals. 3. Screw in “L” and “R” pedals 4. Tighten the pedals using an Allen key. 5. Insert and adjust saddle height. 6. Secure with the quick release. DAXYS FOX - USER MANUAL...
- Page 18 7. CONTROLLER AND DISPLAY 1. Install the mount on the display 2. Loosen the mount bolts 3. Loosen the controller bolt 4. Place the display on the handlebar and tighten the bolts 5. Place the controller on the handlebar and tighten the bolt 6.
-
Page 19: Charging The Battery
4. A full charge will require 4-5 hours, depending on current battery level. 5. Disconnect the charger when the LED turns green, it indicates Full Charge. 6. Pressing and holding the power button on the battery, will indicate it’s charging level (GREEN means charged). DAXYS FOX - USER MANUAL... -
Page 20: Battery And Charger Information
BATTERY AND CHARGER INFORMATION: Storage and Warnings If the battery will not be used for an extended period of time store in a cool, dry place, and charge it every month. Please ONLY use the original special charger for charging the battery. If you notice unusual sounds, smells or temperature variations coming from the charger or the battery, unplug charger immediately and contact customer service. -
Page 21: Operating Your Bike
Consult with the manufacturer or an authorised service provider before making any changes. Walk Mode To turn Walk mode ON, press and hold until the symbol appears on the display (under Current speed). To activate it, press and hold the duration of the Walk mode operation. DAXYS FOX - USER MANUAL... - Page 22 KEY OPERATIONS: The key operations are short, long and key combination long presses. Short press is used for fast and frequent operations, for example: 1. When riding, press the button to modify the power/speed gear 2. Navigate the System menu 3.
-
Page 23: Guide To Electric Pedal Assistance Modes
Note: Using the brakes will interrupt the motor assistance, and will resume at the PAS value displayed after pedaling again. YOUR EBIKE KEYS: The keys are used on the battery body to: ON - allows battery to be removed from the bike OFF - locks the battery onto the bike DAXYS FOX - USER MANUAL... -
Page 24: Tyres
TYRES: Basic information and maintenance guide Start by doing a visual check, looking for abnormal wear or cracks. If you think your tyre needs replacement based on this check up, you should follow your instincts. You may bring your tyres to your local bike shop for a competent opinion. While doing your visual inspection, check for proper tyre pressure by using a tyre gauge suited for testing bicycle tyres. -
Page 25: Troubleshooting
Verify if the back wheel speed sensor aligns with the magnet, and corresponds to the proper rotation. Turn off and allow heat to dissipate. Motor comunication fault Check wiring for damage then restart the system. DAXYS FOX - USER MANUAL... -
Page 26: F.a.q's
In AU, an eBike must have a motor with a maximum power of 250W, assisting the eBike to a maximum speed of 25 km/h to be road-legal. If the pedal support still functions above these limitations, then the bike becomes a so-called speed pedelec. The Fox has a top speed of 45km/h, and cannot be used on public roads. -
Page 27: Warranty
Damage caused by operating the product outside the permitted or intended uses described by the manufacturer’s instructions or with improper voltage or power supply; h) Damage caused by servicing of the product (including upgrades and expansions) performed by any unauthorised personnel i) Damage caused by natural wear and tear. DAXYS FOX - USER MANUAL... - Page 28 TECHNICAL SUPPORT: Please contact your seller for details on authorised service centers. For further support email us at support@panmi.com.au...
