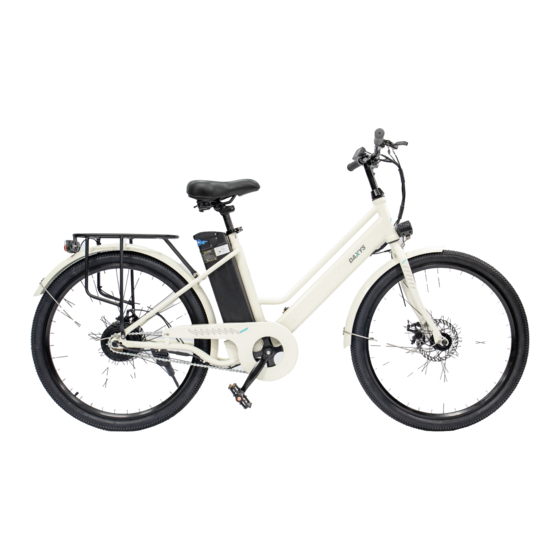

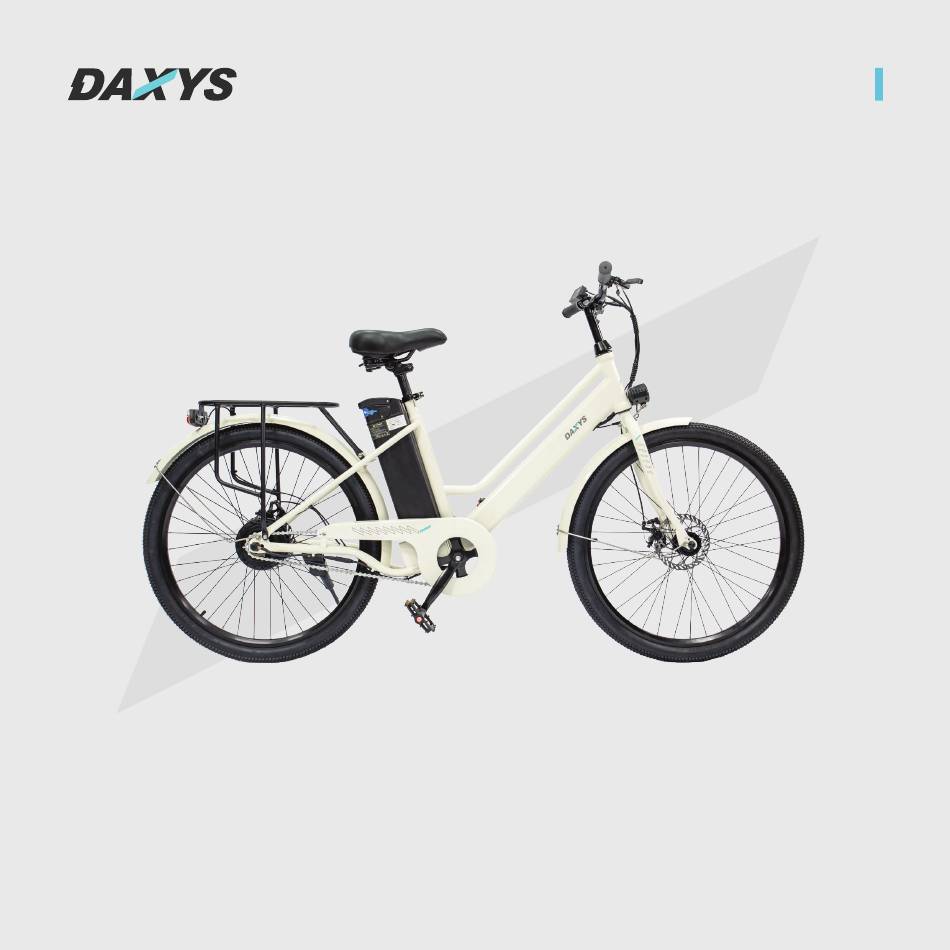

- Page 1 LYNX Electric City Bike USER MANUAL v1.0...
- Page 2 LYNX USER MANUAL Please read this manual very carefully before using the product. The manual contains important instructions for the safe use and longevity of your bike.
-
Page 3: Table Of Contents
Guide to Electric Pedal Assistance Modes ..................... 19 Your eBike Keys............................. 20 Maintenance Tyres ................................21 Cleaning Your e bike ........................... 21 Troubleshooting ............................22 F.A.Q’s ................................23 Warranty ................................ 24 Technical Support Contact information ......................25 DAXYS LYNX - USER MANUAL... -
Page 4: Riding Introduction
RIDING INTRODUCTION Do not use the product before carefully reading the instructions and understanding the performance of the product; Before cycling, check whether the brakes work. When braking, please brake rear first and then front. Pay attention to the brake tightness. If the brake is too loose, use an Allen wrench to tighten it. Pay attention to increase the braking distance when riding in rain and snow. -
Page 5: Statement Of Responsibility
Please read this manual carefully before using the product and operate in accordance with it. Otherwise, the company will not be responsible for product damage or personal and property losses caused by improper and wrong use. DAXYS LYNX - USER MANUAL... -
Page 6: Before You Ride
BEFORE YOU RIDE Perform Regular checks and maintenance as outlined below... -
Page 7: Battery Disposal
• Batteries must be disposed of in accordance with the relevant national environmental protection regulations. • Return batteries to a recycling facility, or an authorized Daxys dealer. • In case of uncertainty contact Daxys customer service department. DAXYS LYNX - USER MANUAL... -
Page 8: Meet Your Bike
MEET YOUR BIKE: 1. Stem 13. Wheel Rim 2. Controller 14. Pedal 3. Brake lever 15. Sprocket 4. Handle 16. Battery 5. Handlebar 17. Seat adjustment quick release 6. Controller and breaks cables 18. Chain 7. Headlights 19. Gear cassette 8. -
Page 9: Display Guide
DISPLAY GUIDE: 1. Power button 2. Battery 3. Battery indicator 4. Front-light on indicator 5. Front-light switch 6. Mode / Gear change 7. Gear indicator 8. Walk mode switch DAXYS LYNX - USER MANUAL... -
Page 10: Handlebar Guide
HANDLEBAR GUIDE: 7. Controller 1. Handlebar 8. Mode / 6KM/H button 2. Front brake lever 9. Back brake lever 3. Handlebar grip 10. Menu / On off button 4. Stem bolt 11. Headlight button 5. Stem 12. Back brake lever 6. -
Page 11: Product Specifications
AC 100-240V, 50/60 Hz, 2 A MAX Output DC 5.0-60V 0.001-4.5A 84W MAX Battery parameters Battery type 18650 Lithium ion power battery Battery volume Battery rated voltage Under-voltage protection value Over-current protection value 15±1 A Charging time 2-3h DAXYS LYNX - USER MANUAL... - Page 12 Parameter Value Electrical Specifications Motor mode moped Motor type 26”/36V/High speed gear / spoke wheel motor Motor rated power 250W (Standard) Product Features Instrument display Multi-functional LED controller Front lighting Brakes front and rear disc brakes Tyre style Pneumatic tyre Tyre size specification 26x2.125 Air nozzle:...
-
Page 13: Assembly Instructions
ASSEMBLY INSTRUCTIONS: 1. UNBOXING & TOOLS 1. Unpack your new Daxys Lynx eBike. 2. Have the tools and parts ready. 3.Remove packing materials. 4. Remove the front wheel and saddle. * Be careful not to scratch the paint *Be careful not to cut the tyre... - Page 14 2. HANDLEBAR INSTALLATION 1. Loosen the stem screw before trying to insert it in the tube. 2. Put the skirt (A) on the handlebar stem and insert it in the fork *To confirm that the fork is in the right position, check if the brake pads tube (B).
- Page 15 3. Remove the protective plastic cap then put the wheel on and insert the 4.Tighten using the front wheel screw. front wheel pin. 5. Secure with the quick release. 6. Flip the bike in the normal position. DAXYS LYNX - USER MANUAL...
- Page 16 4. BRAKE ADJUSTMENT 1. Spin the wheel and listen for rubbing sounds. 2. Loosen A, B with the hex key and adjust brake pads. 3. Spin the wheel to check. 4. Tighten A, B. 5. BATTERY REMOVAL 1. Unlock the battery using the keys (see page 20) 2.
- Page 17 3. Screw in “R” and “L” pedals in the motion shown on the 4. Attach the rear mudguard to the hub sockets. plastic caps, then tighten with the provided multi-tool. 5. Insert and adjust saddle height. 6. Secure with the quick release. DAXYS LYNX - USER MANUAL...
-
Page 18: Charging The Battery
CHARGING THE BATTERY: Using the charger and Battery guide, charging indicators, level indicators etc. 1. Connect the charger to the battery charging port first. 2. Plug in a power source 3. Check if the LED is RED. If the LED is GREEN, unplug from power source and repeat steps 1. and 2. 4. -
Page 19: Battery And Charger Information
Plug your eBike charger directly into a wall outlet instead for best results. If required to use an extension cord, use the shortest length possible, and always check the specs so ensure it can handle your charger’s requirements. DAXYS LYNX - USER MANUAL... -
Page 20: Operating Your Bike
OPERATING YOUR BIKE: Display, Buttons, Power on, gears, brakes etc. Turn ON the battery Insert the key and turn it to the ON position to use the electric features of your Lynx eBike. Power ON/OFF Press to turn the electric functions of the bike ON/OFF. - Page 21 Press mode to change the motor gear (PAS 0-3 see pages 18,20) Press 6KM/H once to turn walk mode on, press again to turn off. While the battery is OFF (see page 20) you can check the battery levels by pressing and holding the power button DAXYS LYNX - USER MANUAL...
-
Page 22: Guide To Electric Pedal Assistance Modes
GUIDE TO ELECTRIC PEDAL ASSISTANCE MODES: Walk mode - motor powered, no pedaling required, max speed 6 km/h PAS 0 - no motor assistance PAS 1 - motor assisted, max speed 15 km/h (motor only). Recommended gear for going uphill. PAS 2 - motor assisted, max speed 20 km/h (motor only) PAS 3 - motor assisted, max speed 25km/h (motor only) Note: Using the brakes will interrupt the motor assistance, will resume at the PAS value displayed... -
Page 23: Tyres
Next take chain lube and apply a slow but steady stream to the inside of the chain as you rotate the cranks until the whole chain got lubed. DAXYS LYNX - USER MANUAL... -
Page 24: Troubleshooting
TROUBLESHOOTING: Quick troubleshooting steps: 1. Make a note of the event description; 2. Switch off the system; 3. Visually check for any obvious cause; 4. Solve any easy and obvious cause, if safely possible (e.g. re-connect the wire connectors of various parts). Switch the system back on. -
Page 25: F.a.q's
First please check that the battery is charged, and it functions (for example turn on headlight) ; if the battery is in working conditions, then check if the battery and other wires are properly connected. If it’s still not working, then consult the dealer and after-sale for support. DAXYS LYNX - USER MANUAL... -
Page 26: Warranty
WARRANTY: DOA: Complete replacement 12 Month Warranty*: All returns accepted excluding items that have received physical damage by the owner/end-user Warranty does not apply to any: a) Damage caused by nature or acts of God, for example, lightning strikes, tornadoes and the like; b) Negligent or incorrect use of the product;... -
Page 27: Technical Support Contact Information
TECHNICAL SUPPORT: Please contact your seller for details on authorized service centers. DAXYS LYNX - USER MANUAL...
