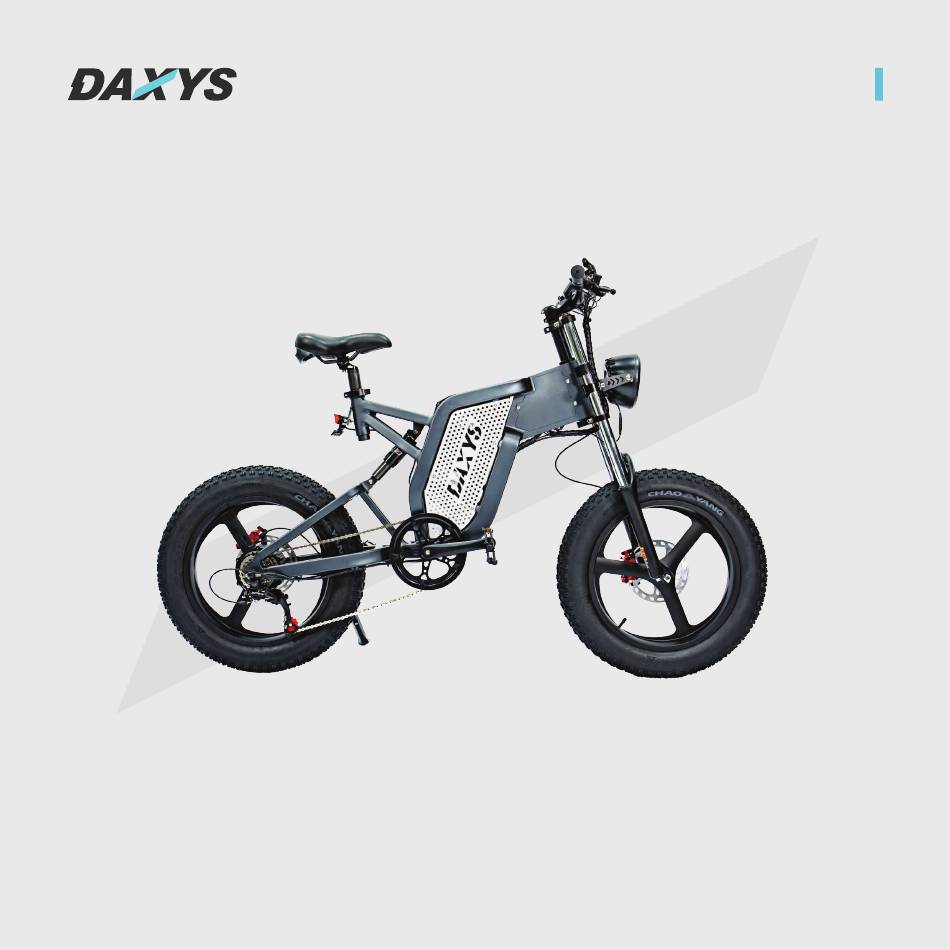

- Page 1 GRIZZLY Electric Motorbike USER MANUAL v1.0...
- Page 2 GRIZZLY USER MANUAL Please read this manual very carefully before using the product. The manual contains important instructions for the safe use and longevity of your bike.
-
Page 3: Table Of Contents
Guide to Electric Pedal Assistance Modes ..................... 22 Your eBike Keys............................. 22 Maintenance Tyres ................................23 Cleaning Your e bike ........................... 23 Troubleshooting ............................24 F.A.Q’s ................................25 Warranty ................................ 26 Technical Support Contact information ......................27 DAXYS GRIZZLY - USER MANUAL... -
Page 4: Riding Introduction
RIDING INTRODUCTION Do not use the product before carefully reading the instructions and understanding the performance of the product; Before cycling, check whether the brakes work. When braking, please brake rear first and then front. Pay attention to the brake tightness. If the brake is too loose, use an Allen wrench to tighten it. Pay attention to increase the braking distance when riding in rain and snow. -
Page 5: Statement Of Responsibility
Please read this manual carefully before using the product and operate in accordance with it. Otherwise, the company will not be responsible for product damage or personal and property losses caused by improper and wrong use. DAXYS GRIZZLY - USER MANUAL... -
Page 6: Before You Ride
BEFORE YOU RIDE Perform Regular checks and maintenance as outlined below COMPONENT OR INSPECT BEFORE INSPECT CLEAND AND/OR ADJUST / REPAIR / CONDITION EVERY RIDE PERIODICALLY LUBRICATE TIGHTEN REPLACE (IF NECESSARY) Tyre presure Tyre wear/damage Brake pad adjustment Wheel quick release adjustment Head and tail lights Controls and... -
Page 7: Battery Disposal
• Batteries must be disposed of in accordance with the relevant national environmental protection regulations. • Return batteries to a recycling facility, or an authorised Daxys dealer. • In case of uncertainty contact Daxys customer service department. DAXYS GRIZZLY - USER MANUAL... -
Page 8: Meet Your Bike
MEET YOUR BIKE: 1. Stem 14. Wheel rim 2. Controller 15. Tube storage battery 3. LCD display 16. Crankset 4. Rear gear switch 17. Pedal 5. Brake lever 18. Seat adjustment quick release 6. Throttle and handle 19. Chain 7. Headlight supports 20. -
Page 9: Display Guide
7. Walk mode indicator ( ),Total mileage (ODO), Trip distance (TRIP), Max speed (MAXS), Average speed (AVG) 8. Numerical value for selected indicator at no. 7 9. WhAhV (Watt/hour; Amper/hour; Voltage) /Mile / Km indicator DAXYS GRIZZLY - USER MANUAL... -
Page 10: Handlebar Guide
HANDLEBAR GUIDE: 1. Handlebar 2. Other Shifter (Lower Gear) 10. Horn 3. Main Shifter (Upper Gear) 11. Back brake lever 4. Throttle 12. On Off button 5. Handlebar grip 13. Turn signal 6. Front brake lever 14. Controller 7. Stem cap 15. -
Page 11: Product Specifications
AC 100-240V, 50-60 Hz, 2 A MAX Output DC 54.6V 2A 110W MAX Battery parameters Battery type 18650 Lithium ion power battery Battery capacity 20Ah Battery rated voltage Under-voltage protection value Over-current protection value 15±1 A Charging time 9-10h DAXYS GRIZZLY - USER MANUAL... - Page 12 Parameter Value Electrical Specifications Motor mode Moped Motor type 20”/48V/High speed gear / spoke wheel motor Motor rated power 1000W (Standard) Product Features Instrument display Multi-functional color LCD screen Front lighting Brakes Front and rear hydraulic disc brakes Tyre style Pneumatic tyre Tyre size specification 20x4”...
-
Page 13: Assembly Instructions
ASSEMBLY INSTRUCTIONS: 1. UNBOXING & TOOLS 1. Unpack your new Daxys Grizzly eBike. 2. Have the tools and parts ready. 3.Remove packing materials. 4. Remove front wheel. * Be careful not to scratch the paint *Be careful not to cut the tyre... - Page 14 2. FRONT BRAKE INSTALLATION 2. Remove the screw socket protectors from the front wheel fork. 1. Turn the bike upside-down. 3. Unscrew bolt A completely. This will give you access to bolt B, 4. Tighten bolt B (see image 2) as much as possible. which is the first one to tighten in slot 2, then bolt A in slot 1.
- Page 15 3. FRONT WHEEL INSTALLATION 1. Remove the plastic brake pads protection spacer. 2. Flip your Grizzly upside down. 3. Remove the fork protector. 4. Loosen the wheel bolts. 5.Place it in its socket, making sure the washer is on the outside.
- Page 16 4. BRAKE ADJUSTMENT 1. Spin the wheel and listen for rubbing sounds. 2. Loosen A, B with the allen key and adjust brake pads. 3. Spin the wheel to check. 4. Tighten A, B. 5. BATTERY REMOVAL 1. Unlock the battery using the keys (see page 20) 2.
- Page 17 Philips head screwdriver. * Make sure to place the cables between the frontlight and fork tube 5. Connect the headlight cable to the the battery cable, paying attention to match the arrows on each end. DAXYS GRIZZLY - USER MANUAL...
- Page 18 7. HANDLEBAR INSTALLATION 1. Loosen the bolts 1-4 and remove stem cover. 2. Loosen the display screws, and rotate it, for easier access. 3. Place handlebar in stem and screw the bolts in, to about 90%. 4. Adjust handlebar to the desired position and tighten the 4 bolts. * It is recommended to angle the brake handles at aprox.
- Page 19 3. Screw in “R” pedal in a clockwise motion then tighten with 4. Screw in “L” pedal in a clockwise motion then tighten with the the provided multi-tool. provided multi-tool. 5. Rotate the seat and secure with the quick release. DAXYS GRIZZLY - USER MANUAL...
-
Page 20: Charging The Battery
CHARGING THE BATTERY: Using the charger and Battery guide, charging indicators, level indicators etc. 1. Open the key and charger port cover 2. Connect the charger to the battery charging port first. 3. Plug in a power source. The LED will turn RED. 4. -
Page 21: Battery And Charger Information
Plug your eBike charger directly into a wall outlet instead for best results. If required to use an extension cord, use the shortest length possible, and always check the specs to ensure it can handle your charger’s requirements. DAXYS GRIZZLY - USER MANUAL... -
Page 22: Operating Your Bike
OPERATING YOUR BIKE: Display, Buttons, Power on, gears, brakes etc. 1. Display functions 2. Control and setting functions NOTE: To enter parameters menu, long press Press to enter menu, use to set the parameters, then short press to save and return to parameter list, or long press to exit menu. - Page 23 Menu Interface Save and exit menu Button Short press functions: Metre interface Lights On/Off Menu interface Lights On/Off Long press functions: Button Short press functions: Long press functions: Metre interface Power On/Off Menu interface Power On/Off DAXYS GRIZZLY - USER MANUAL...
-
Page 24: Guide To Electric Pedal Assistance Modes
GUIDE TO ELECTRIC PEDAL ASSISTANCE MODES: Walk mode - motor powered, no pedaling required, max speed 6 km/h (Long press key on the controller. To exit either squeeze the brakes, or long press again) PAS 0 - no motor assistance PAS 1 - motor assisted, 0- 24 km/h PAS 2 - motor assisted, 25-33 km/h PAS 3 - motor assisted, 34-42 km/h... -
Page 25: Tyres
Next, take chain lube and apply a slow but steady stream to the inside of the chain as you rotate the cranks until the whole chain got lubed. DAXYS GRIZZLY - USER MANUAL... -
Page 26: Troubleshooting
TROUBLESHOOTING: Troubleshooting information, fault codes, etc Quick troubleshooting steps: 1. Make a note of the event description; 2. Switch off the system; Other than error codes, here are some other possible issues: 3. Visually check for any obvious cause; 4. Solve any easy and obvious cause, if safely possible (e.g. re-connect 1. -
Page 27: F.a.q's
In AU, an eBike must have a motor with a maximum power of 250W, assisting the eBike to a maximum speed of 25 km/h to be road-legal. If the pedal support still functions above these limitations, then the bike becomes a so-called speed pedelec. The Grizzly has a top speed of 60km/h, and cannot be used on public roads. -
Page 28: Warranty
WARRANTY: DOA: Complete replacement 12 Month Warranty*: All returns accepted excluding items that have received physical damage by the owner/end-user Warranty does not apply to any: a) Damage caused by nature or acts of God, for example, lightning strikes, tornadoes and the like; b) Negligent or incorrect use of the product;... -
Page 29: Technical Support Contact Information
TECHNICAL SUPPORT: Please contact your seller for details on authorised service centers. For further support email us at support@panmi.com.au DAXYS GRIZZLY - USER MANUAL...
