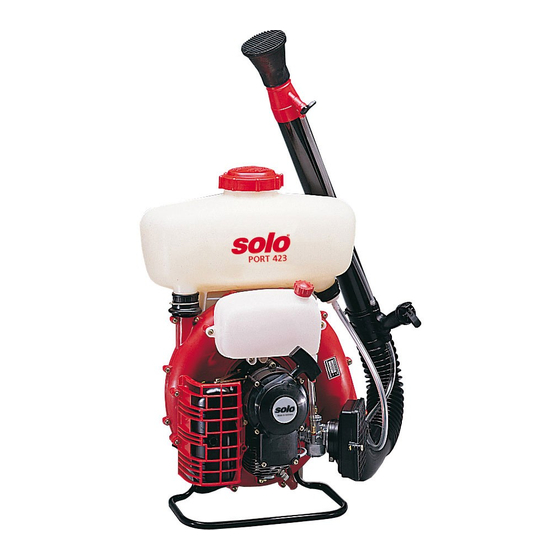

Solo Port 423 Evolution Original Instructions Manual

Mistblower
Hide thumbs Also See for Port 423 Evolution:
Table of Contents

Advertisement

Quick Links

Download this manual
Original instructions
Instruction manual
Notice originale
Instructions d'emploi
Manual original
Manual del usario
Important!
Read this instruction manual carefully before
first operation and strictly observe the safety
regulations!
Attention!
Lire attentivement ce manuel avant la première
mise en service et observer absolument les
prescriptions de sécurité!
¡Atención!
Es indispensable leer con mucha atención las
instrucciones de manejo antes de utilizarla por
primera vez. ¡Preste especial atención a las
recomendaciones de seguridad!
Port 423 Evolution / MAX
Mistblower
Atomiseur
Pulverizador
70290
en
fr
es
01/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Port 423 Evolution and is the answer not in the manual?

Questions and answers

Related Manuals for Solo Port 423 Evolution

Summary of Contents for Solo Port 423 Evolution

  • Page 1 Port 423 Evolution / MAX Mistblower Original instructions Instruction manual Atomiseur Notice originale Instructions d'emploi Manual original Pulverizador Manual del usario Important! Read this instruction manual carefully before first operation and strictly observe the safety regulations! Attention! Lire attentivement ce manuel avant la première mise en service et observer absolument les prescriptions de sécurité!
  • Page 3 - ENGLISH - Motorized mistblower Port 423 Evolution / MAX Instruction manual 1. Symbols Original instructions The following symbols are used in this manual and on the product: Caution! Prior to operating the unit, please Thoroughly read these operating read the owner’s manual carefully, and most instructions before undertaking any importantly, observe all safety rules.

  • Page 4: Safety Regulations

    • Unauthorized modification or changes made to the device. • Intervention by non-specialized persons, or improper repair attempts. • The use of unsuitable replacement parts or parts other than SOLO original parts to the extent that they cause damage. • Using unsuitable fuel or fuel that has been stored too long.
  • Page 5 4.2 General safety instructions Some parts on the machine have been removed for transport purposes. Prior to first use, the mistblower has to be completely assembled. This mistblower may only be started and used when completely assembled. Read the operating instructions carefully before placing in service and keep them in a safe place. The operating instructions must be kept available at all times wherever the device is used or stored.
  • Page 6 4.4 Operating Hints  While running, the engine produces toxic exhaust gas which is odourless and invisible. Never start or operate the machine in closed rooms. Ensure for adequate ventilation in confined areas such as ditches or dips.  No other persons should be present within a circle of 15 meters from the operator. ...

  • Page 7: Important Components

    15. Spray nozzle 16. Dosage sleeve 17. Throttle lever 18. Wide range nozzle 20. Tank ventilation 21. Fuel tap Please obtain the following practical accessories from your SOLO Dealer: Accessories Part No. Dusting Attachment Allows conversion to dusting unit.. 49233 ULV-nozzle...

  • Page 8: Assembly Of Misting Equipment

    7. Assembly of misting equipment Fig. 4 Completely assemble the mistblower before its first use. Fig. 2 Check hose connection to on/off tap and retighten cap nut if required. Shut on/off tap, fill some plain water in formula tank and check for any leakage. Note: The spray tube can be twisted and turned in the pleated hose with the handle.
  • Page 9 Fig. 6 Fig. 8 Fig. 8b Fold the carrying system up and close the Velcro. Fig. 7 Screw the hip belt to the device backplate with two screws and washers. Take the device on your back for work and close the chest strap and hip belt.

  • Page 10: Fuel Information

    When handling the spraying agents, always follow Recommendation: the safety instructions of these operating Use the "SOLO Profi 2-stroke engine oil" at a instructions (pay special attention to section 4.6) mixing ratio of oil:petrol of 1:50 (2 %). and the information provided by the manufacturer of the particular spraying agent.
  • Page 11 The strainer has a mesh size of 0.5 mm. Only use Fig. 12 original SOLO strainers, part no.: 15137 with standard mesh size. Avoid any direct contact of the filling hose and the contents of the spraying agent tank.

  • Page 12: Operation Hints

    Misting Output Guide 12. Operation hints Dosage sleeve  Before every use and before every start of the mistblower check and ensure the machine is in good and safe condition. (throttle operation, Position 1 0.32 L/min 0.17 L/min 0.33 L/min ignition switch, safety devices, shoulder strap and check for fuel leaks) Position 2 0.63 L/min...
  • Page 13 Spraying: Dual nozzle (accessories, part no.: 49137): Approach the target object with the engine at Fig. 18 idling speed. Accelerate to full engine speed, then open formula on-off tap. Wide-range nozzle (18): Fig. 16 When spraying plants and trees we recommend Remove standard nozzle (15) from the spray wand fixing the wide-range nozzle (18) onto the red and push the dual nozzle onto the spray wand.
  • Page 14 Should the actual value be too high, the metering grease to the valve stem and o-ring, than re- body may be worn or damaged. In that case, assemble. Replace o-ring if required. replace the metering body with a new one (part no.: 13008).
  • Page 15 13.5 Spark Plug Fig. 20 The correct spark plug with thermal range 145 is available under the following brands: BOSCH W8AC Champion RL86C The correct electrode gap is 0.5mm. Caution: Check the plug after every 50 operating hours and replace if electrodes are worn.

  • Page 16: Technical Specifications

    15. Technical Specifications Mistblower Port 423 Port 423 Evolution Evolution MAX Engine type SOLO single cylinder, two-cycle Displacement 72.3 Bore/Stroke 48/40 Power 3.0 kW (4,1 HP / 5700 1/min Carburetor Float Type Ignition electronically controlled magneto ignition, maintenance-free Fuel Tank Capacity Total Formula Tank Capacity approx.

  • Page 17: Made In Germany

    Made in Germany SOLO Kleinmotoren GmbH Industriestraße 9 D-71069 Sindelfingen Postfach / PO Box 60 01 52 D-71050 Sindelfingen DEUTSCHLAND / GERMANY Tel.: +49 (0)7031 301-0 Fax: +49 (0)7031 301-202 info@solo-germany.com http://solo.global/...
