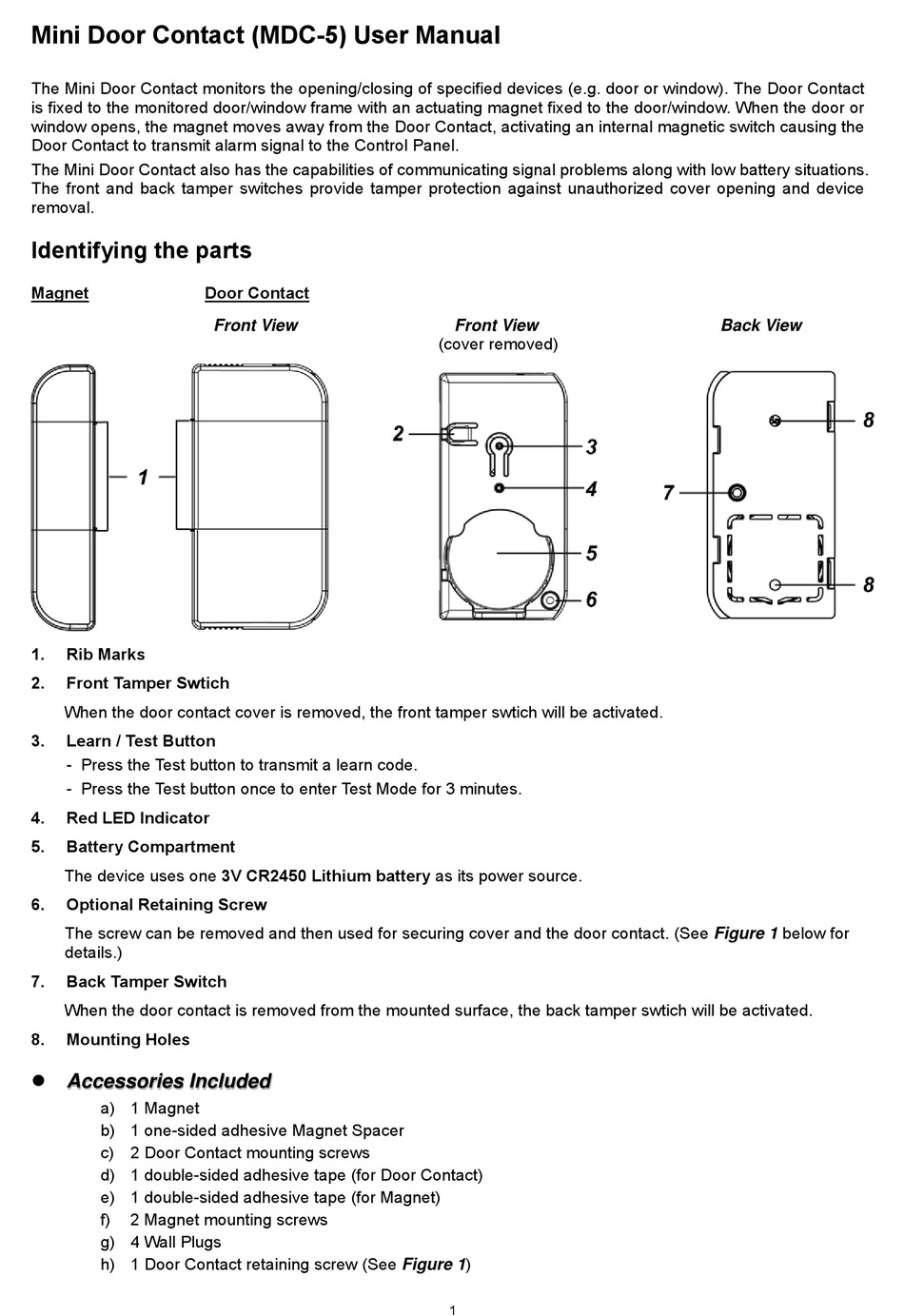

Mini Door Contact (MDC-5) User Manual
The Mini Door Contact monitors the opening/closing of specified devices (e.g. door or window). The Door Contact
is fixed to the monitored door/window frame with an actuating magnet fixed to the door/window. When the door or
window opens, the magnet moves away from the Door Contact, activating an internal magnetic switch causing the
Door Contact to transmit alarm signal to the Control Panel.
The Mini Door Contact also has the capabilities of communicating signal problems along with low battery situations.
The front and back tamper switches provide tamper protection against unauthorized cover opening and device
removal.

Identifying the parts

Magnet
1. Rib Marks
2. Front Tamper Swtich
When the door contact cover is removed, the front tamper swtich will be activated.
3. Learn / Test Button
- Press the Test button to transmit a learn code.
- Press the Test button once to enter Test Mode for 3 minutes.
4. Red LED Indicator
5. Battery Compartment
The device uses one 3V CR2450 Lithium battery as its power source.
6. Optional Retaining Screw
The screw can be removed and then used for securing cover and the door contact. (See Figure 1 below for
details.)
7. Back Tamper Switch
When the door contact is removed from the mounted surface, the back tamper swtich will be activated.
8. Mounting Holes
 Accessories Included
a) 1 Magnet
b) 1 one-sided adhesive Magnet Spacer
c) 2 Door Contact mounting screws
d) 1 double-sided adhesive tape (for Door Contact)
e) 1 double-sided adhesive tape (for Magnet)
f) 2 Magnet mounting screws
g) 4 Wall Plugs
h) 1 Door Contact retaining screw (See Figure 1)
Door Contact
Front View Front View
(cover removed)
1
Back View
