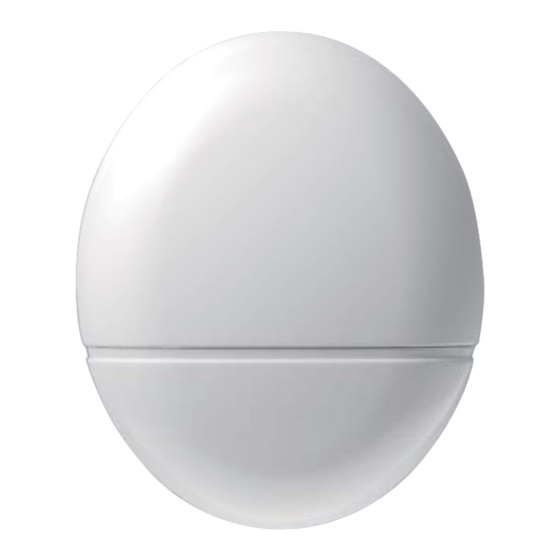

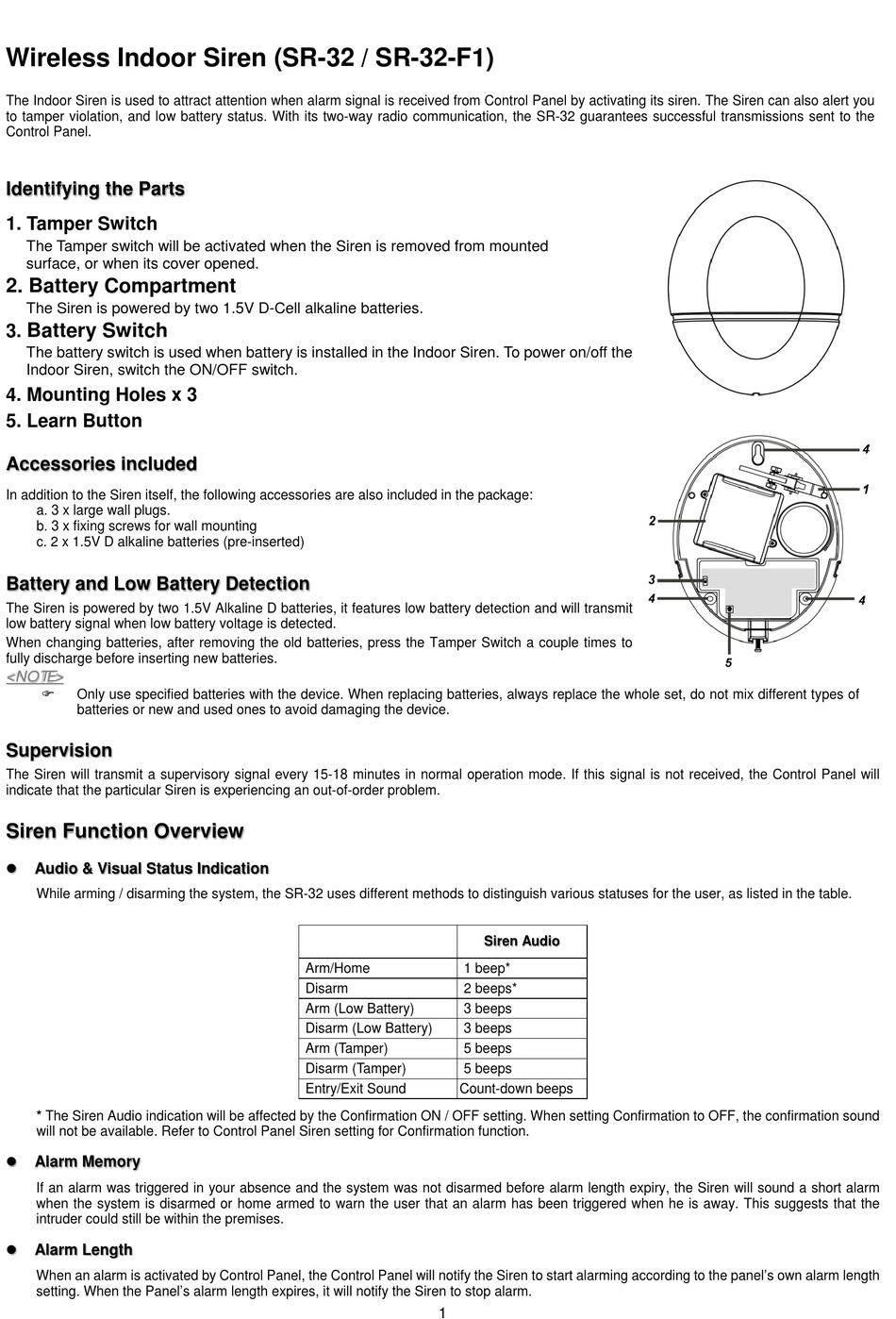

Wireless Indoor Siren (SR-32 / SR-32-F1)
The Indoor Siren is used to attract attention when alarm signal is received from Control Panel by activating its siren. The Siren can also alert you
to tamper violation, and low battery status. With its two-way radio communication, the SR-32 guarantees successful transmissions sent to the
Control Panel.

Identifying the Parts

1. Tamper Switch
The Tamper switch will be activated when the Siren is removed from mounted
surface, or when its cover opened.
2. Battery Compartment
The Siren is powered by two 1.5V D-Cell alkaline batteries.
Battery Switch
3.
The battery switch is used when battery is installed in the Indoor Siren. To power on/off the
Indoor Siren, switch the ON/OFF switch.
4. Mounting Holes x 3
5. Learn Button
Accessories included
In addition to the Siren itself, the following accessories are also included in the package:
a. 3 x large wall plugs.
b. 3 x fixing screws for wall mounting
c. 2 x 1.5V D alkaline batteries (pre-inserted)

Battery and Low Battery Detection

The Siren is powered by two 1.5V Alkaline D batteries, it features low battery detection and will transmit
low battery signal when low battery voltage is detected.
When changing batteries, after removing the old batteries, press the Tamper Switch a couple times to
fully discharge before inserting new batteries.
<NOTE>

Only use specified batteries with the device. When replacing batteries, always replace the whole set, do not mix different types of
batteries or new and used ones to avoid damaging the device.

Supervision

The Siren will transmit a supervisory signal every 15-18 minutes in normal operation mode. If this signal is not received, the Control Panel will
indicate that the particular Siren is experiencing an out-of-order problem.

Siren Function Overview


Audio & Visual Status Indication
While arming / disarming the system, the SR-32 uses different methods to distinguish various statuses for the user, as listed in the table.
* The Siren Audio indication will be affected by the Confirmation ON / OFF setting. When setting Confirmation to OFF, the confirmation sound
will not be available. Refer to Control Panel Siren setting for Confirmation function.

Alarm Memory
If an alarm was triggered in your absence and the system was not disarmed before alarm length expiry, the Siren will sound a short alarm
when the system is disarmed or home armed to warn the user that an alarm has been triggered when he is away. This suggests that the
intruder could still be within the premises.

Alarm Length
When an alarm is activated by Control Panel, the Control Panel will notify the Siren to start alarming according to the panel's own alarm length
setting. When the Panel's alarm length expires, it will notify the Siren to stop alarm.
Arm/Home 1 beep*
Disarm 2 beeps*
Arm (Low Battery) 3 beeps
Disarm (Low Battery) 3 beeps
Arm (Tamper) 5 beeps
Disarm (Tamper) 5 beeps
Entry/Exit Sound Count-down beeps
1
Siren Audio
