BX-32ZW Outdoor Bellbox

Introduction

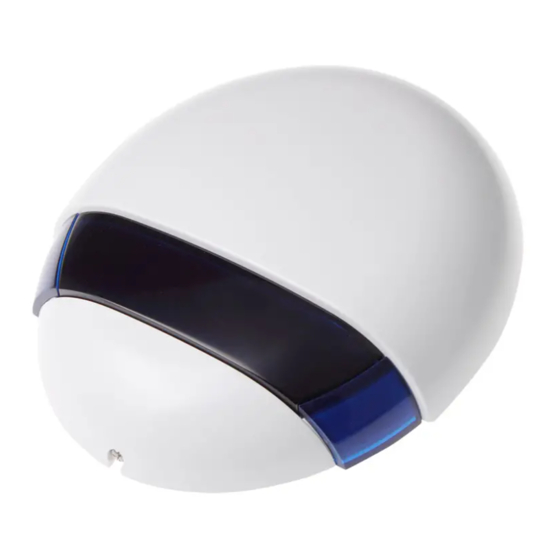

BX-32ZW is a Z-Wave Outdoor Bellbox. It is capable of raising alarm upon receiving alarm signal from
the Z-Wave network when an alarm is activated. During the alarm, the Bellbox will sound alarm with its
built-in siren and also flash the strobe light to attract attention.
The Bellbox is a Z-Wave enabled device and is fully compatible with any Z-Wave enabled network.
Z-Wave is a wireless communication protocol that uses a low-power RF radio. By taking advantage of
the Z-Wave mesh network, commands can be transmitted to their destination via intermediary "listening"
Z-Wave products.

Parts Identification

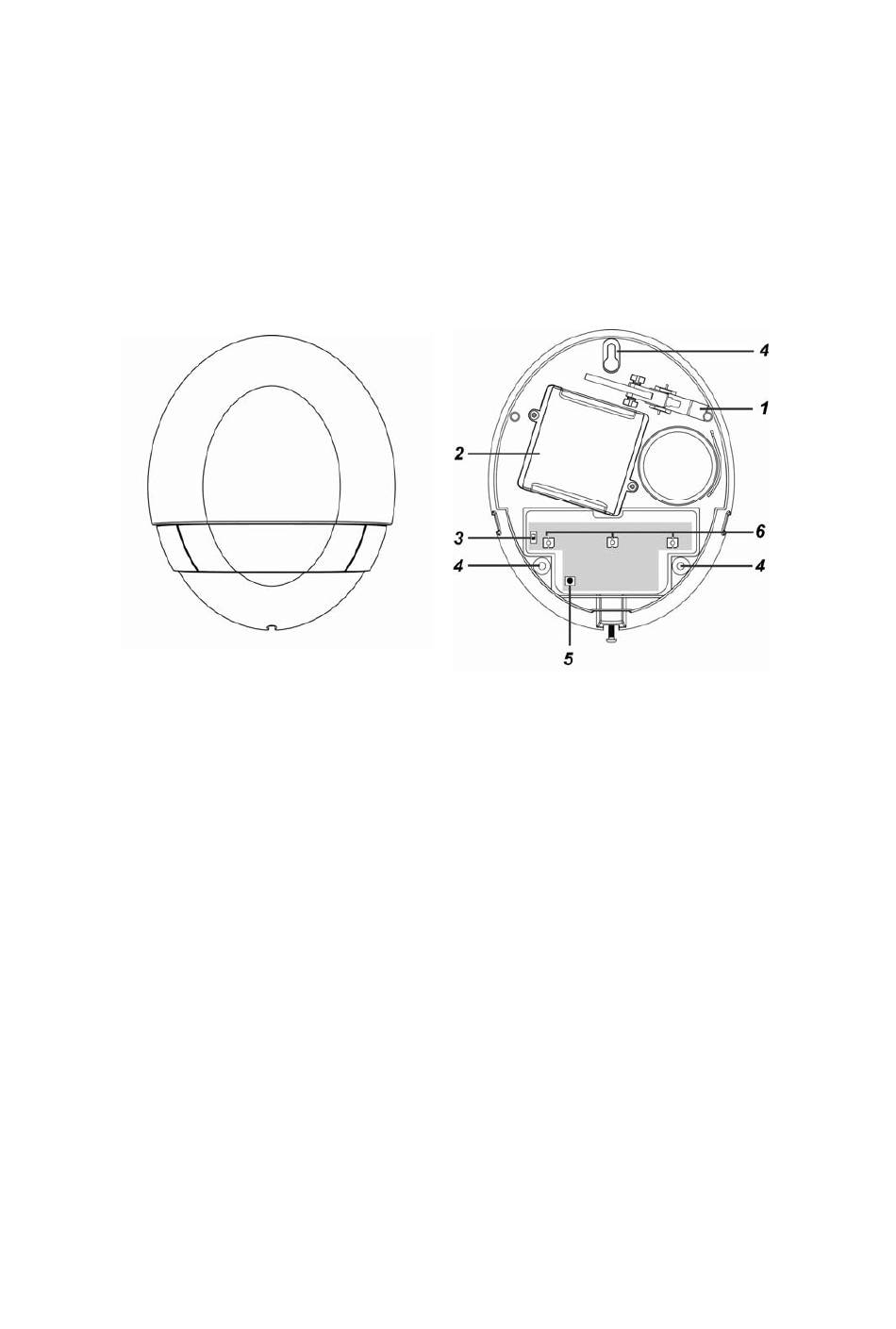

1. Tamper Switch
The Tamper switch will be activated when the Bellbox is removed from mounted surface, or it cover
opened.
2. Battery Compartment
The Bellbox is powered by two 1.5V D-Cell alkaline battery.
3. Battery Switch
The battery switch is used when battery is installed in the Outdoor Bellbox. To power on/off the
Outdoor Bellbox, switch the ON/OFF button.
4. Mounting Holes x 3
5. Function Button
- Press the button 3 times within 1.5 seconds to send a learn code.
- Press and hold the button for 10 seconds, Refer to Removing Device (Exclusion) for details.
6. LED 3 & 2 & 1 (From left to right)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BX-32ZW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Climax Technology BX-32ZW

  • Page 1 BX-32ZW Outdoor Bellbox Introduction BX-32ZW is a Z-Wave Outdoor Bellbox. It is capable of raising alarm upon receiving alarm signal from the Z-Wave network when an alarm is activated. During the alarm, the Bellbox will sound alarm with its built-in siren and also flash the strobe light to attract attention.
  • Page 2 Features The strobe light includes 3 LEDs (From right to left: LED 3-> LED 2->LED 1). Refer to below table for LED and siren beep for status indication. 1 beep All 3 LED flash once Home 1 beeps All 3 LED flash once Disarm 2 beep Sequentially flash for 1 cycle...
  • Page 3 The Bellbox must be removed from existing Z-Wave network before being included into another. There are two methods available to exclude a device. Exclusion Mode Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave gateway or control panel manual). Within 1.5 seconds, press the Function Button 3 times and the Bellbox will be removed from the Z-Wave network.
  • Page 4 < < > > The tamper switch is secured with a button at the back of the base. When the siren is pulled off from the wall, button will be released, the alarm will be activated. Ensure the button is fully depressed when the siren is mounted. If there is a gap, pack with a suitable spacing material.
  • Page 5 receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices).
