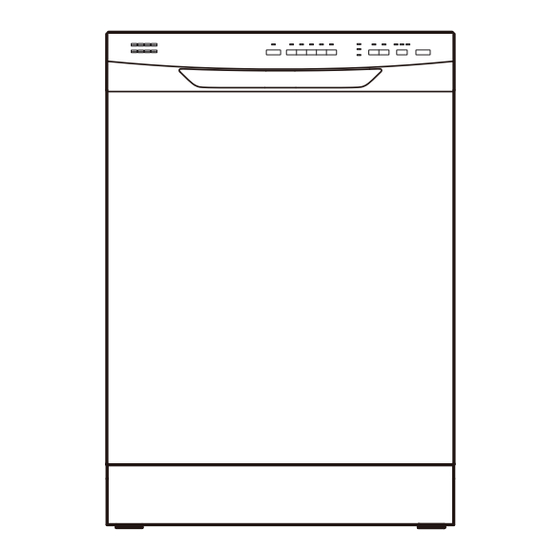

Front control dishwasher

Advertisement

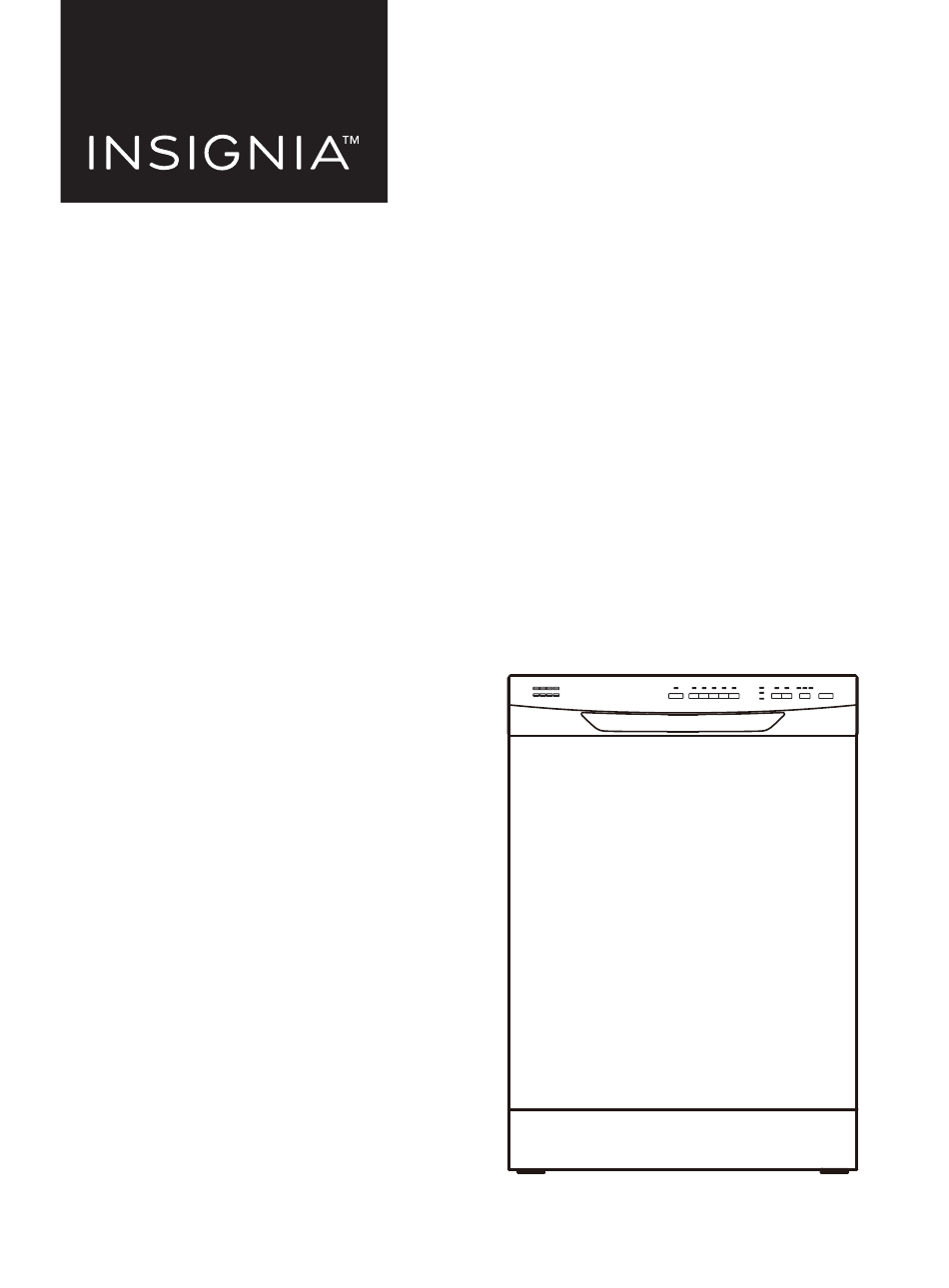

USER GUIDE
Front Control
Dishwasher
NS-DWRF2SS3/NS-DWRF2WH3
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-DWRF2SS3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Insignia NS-DWRF2SS3

  • Page 1 USER GUIDE Front Control Dishwasher NS-DWRF2SS3/NS-DWRF2WH3 Before using your new product, please read these instructions to prevent any damage.
  • Page 2: Table Of Contents

    ONE-YEAR LIMITED WARRANTY ..............19 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-DWRF2SS3 or NS-DWRF2WH3 represents the state of the art in dishwasher design and is designed for reliable and trouble-free performance.
  • Page 3: Important Safety Instructions

    Front Control Dishwasher IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your dishwasher. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your dishwasher.
  • Page 4: Features

    • Do not let children abuse, sit, or stand on the door or racks of the dishwasher. • Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using, turn on all hot water faucets and let water flow from each for several minutes.
  • Page 5: Installing And Setting Up Your Dishwasher

    Front Control Dishwasher Installing and setting up your dishwasher 1 Water supply temperature should be between 120° ~ 149° F (49° ~ 65° C). 2 Dispose of the discarded appliance and packing material properly. 3 The dishwasher must be electrically grounded or it can result in a risk of electric shock. 4 If there is any damage to the dishwasher, please contact Customer Service.
  • Page 6: Using Your Dishwasher

    Using your dishwasher Using the control panel Your dishwasher’s control panel is located on the front of the door. The door must be closed to make settings and operate the dishwasher. Power Turn the power on and off by pressing the power button. Cycles Normal Heavy...
  • Page 7: Basic Operation

    Front Control Dishwasher • 10 - Sanitize: Use to sanitize your dishes and glassware. Maintains the water temperature at 158° F (70° C) max., and is available with the Normal and Heavy cycles. Notes: • Certified residential dishwashers are not intended for licensed food establishments. •...
  • Page 8 Loading the upper rack The upper rack is designed for cups, glasses, small plates, bowls, and plastic items marked dishwasher-safe.For best results, place the items with the soiled surface facing down or toward the center.Tilt them slightly for better drainage. Note: Make sure that the loaded dishes do not interfere with the rotation of the middle spray arm, which is located just below the upper rack.You can check this by rotating the middle spray arm by hand.
  • Page 9 Front Control Dishwasher Loading the bottom rack The bottom rack is designed to accommodate plates, bowls, saucers, and cookware. Large items should be placed along the edge, with the inside facing down, so they do not interfere with the middle or lower spray arms or prevent the detergent dispenser from opening.
  • Page 10: Adding A Dish

    Fold-down tines The fold-down tines in the bottom rack make easy loading for those extra large and hard-to-fit items. The tines may be left up for normal use or folded down for more flexible loading. Fold down for more space to load large pots or pans. Adding a dish CAUTION: TO AVOID BURN INJURY: Open the door slowly and wait until the spray arms and wash action stop.
  • Page 11: Filling The Rinse Aid Dispenser

    Front Control Dishwasher The amount of detergent required depends on the water hardness. Refer to the following table for the recommended amount. Cycle Soft Water Medium Hard Water Hard Water (9-12 Very Hard Water (over (0-3 grains) (4-8 grains) grains) 12 grains) Normal 2 tsp.
  • Page 12: Improving Performance

    Improving performance Using rinse aid Rinse aid greatly improves drying and reduces water spots and filming. Without rinse aid, your dishes and dishwasher interior will have excessive moisture. In addition, the heated dry option will not perform as well without rinse aid. The rinse aid dispenser, located next to the detergent cup, automatically releases a measured amount of rinse aid during the last rinse.
  • Page 13: Maintaining Your Dishwasher

    Front Control Dishwasher Maintaining your dishwasher CAUTION: TO AVOID BURN INJURY: Allow the heating element to cool before attempting to clean the interior of your dishwasher. Cleaning the stainless steel panel Clean the stainless steel door and plastic handle regularly with a soft cloth and standard household cleaner to remove dirt and debris monthly.
  • Page 14: Cleaning The Door And Tub Gaskets

    4 Take out the plastic and fabric filter. 5 Flush the filters by holding them under running water. 6 Replace the fabric filter. 7 Replace the fine filter. 8 Replace the cylinder filter and lock into place. 9 Replace the bottom rack. Cleaning the door and tub gaskets Clean the door gasket with a damp cloth to remove food particles regularly.
  • Page 15: Cleaning The Air Gap

    Front Control Dishwasher The inside of the dishwasher is self-cleaning under normal use. If needed, the tub gasket can be cleaned with a damp cloth. Use a brush to clean the opening in the end of the gasket. Tub gasket Cleaning the air gap An air gap is an external plumbing device that is not actually part of your dishwasher.
  • Page 16: Troubleshooting

    Troubleshooting Refer to this table to correct minor issues before calling for service. Error codes CODE MEANING POSSIBLE CAUSE POSSIBLE SOLUTION Rinse light flashes Either the water • Faucet is not opened • Make sure that the water is turned on and dishwasher flow is insufficient, •...
  • Page 17 Front Control Dishwasher PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The dishes are not The water pressure is too low. Make sure that the water pressure is above 20 psi. clean enough Use your dishwasher when water demand is low. The inlet water temperature is too low. Make sure that the dishwasher is connected to a hot water supply.
  • Page 18: Specifications

    PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The dishwasher leaks Excessive suds caused by using the wrong Make sure that you use only detergents approved for type of detergent. automatic dishwashers. The dishwasher is not level. Level the dishwasher (refer to the Installation Manual).
  • Page 19: One-Year Limited Warranty

    During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 20 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2022 Best Buy. All rights reserved.
