NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 1 Wednesday, January 24, 2018 11:02 AM
USER GUIDE
Top Control
Dishwasher
NS-DWH1SS9/NS-DWH1WH9
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading

Related Manuals for Insignia NS-DWH1WH9

Summary of Contents for Insignia NS-DWH1WH9

  • Page 1 Final size: 8.27 × 11.69 inches (210 × 297 mm) FINAL FOR PRINT NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 1 Wednesday, January 24, 2018 11:02 AM USER GUIDE Top Control Dishwasher NS-DWH1SS9/NS-DWH1WH9 Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Table Of Contents

    NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 2 Wednesday, January 24, 2018 11:02 AM Contents Introduction ..................3 IMPORTANT SAFETY INSTRUCTIONS .

  • Page 3: Introduction

    NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 3 Wednesday, January 24, 2018 11:02 AM NS-DWH1SS9/NS-DWH1WH9 Top Control Dishwasher Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-DWH1SS9/NS-DWH1WH9 represents the state of the art in dishwasher design and is designed for reliable and trouble-free performance. IMPORTANT SAFETY INSTRUCTIONS CAUTION...

  • Page 4: Save These Instructions

    NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 4 Wednesday, January 24, 2018 11:02 AM Top Control Dishwasher • Do not touch the heating element during or immediately after use, especially if the sanitize option has been selected. • Do not let children abuse, sit, or stand on the door or the racks of the dishwasher. •...

  • Page 5: Package Contents

    NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 5 Wednesday, January 24, 2018 11:02 AM NS-DWH1SS9/NS-DWH1WH9 Package contents • Dishwasher • Hose • Hose clamp • Top mounting clips (2) • Wood screws (4) • User Guide • Installation Guide Note: You need to purchase the installation kit in order to install your dishwasher.

  • Page 6: Setting Up Your Dishwasher

    NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 6 Wednesday, January 24, 2018 11:02 AM Top Control Dishwasher Setting up your dishwasher For complete instructions on installing and setting up your dishwasher, see the included Installation Guide. Finding a suitable location • The dishwasher must be installed so that the drain hose is no more than 10 feet (3.01 m) in length, for proper drainage. •...

  • Page 7: Using Your Dishwasher

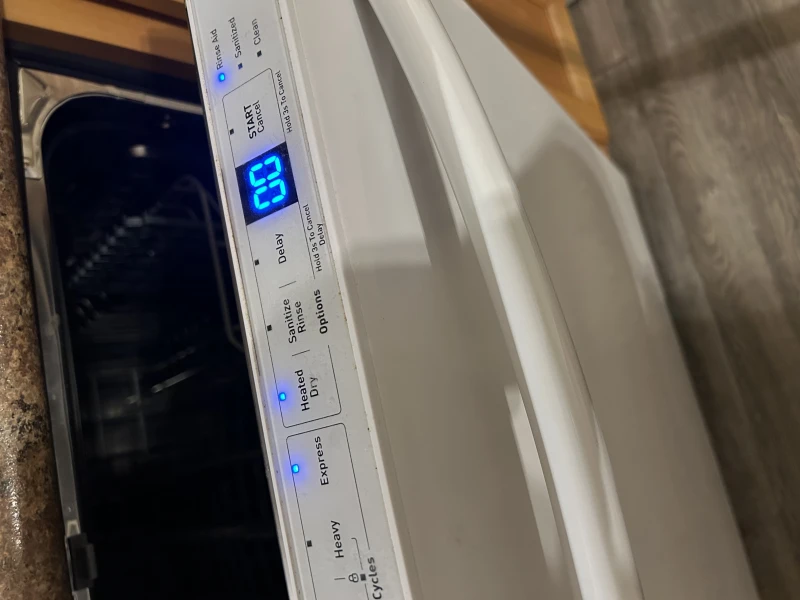

    NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 7 Wednesday, January 24, 2018 11:02 AM NS-DWH1SS9/NS-DWH1WH9 Using your dishwasher Using the control panel Your dishwasher’s control panel is located on the top edge of the door. The door must be opened to make settings and operate the dishwasher.

  • Page 8: Using The Child Lock

    NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 8 Wednesday, January 24, 2018 11:02 AM Top Control Dishwasher • Display—Shows the remaining hours and minutes of the current cycle, delay hours remaining, and error codes (see "Error codes" on page 15“). Note: If the remaining time on the display suddenly increases or decreases by several minutes, it means that the Smart Sensor has checked the soil level or the water needs to be heated to reach the required temperature.
  • Page 9 NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 9 Wednesday, January 24, 2018 11:02 AM NS-DWH1SS9/NS-DWH1WH9 Loading the upper rack The upper rack is designed for cups, glasses, small plates, bowls, and plastic items marked dishwasher-safe.For best results, place the items with the soiled surface facing down or toward the center.Tilt them slightly for better drainage.

  • Page 10: Adding A Dish

    NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 10 Wednesday, January 24, 2018 11:02 AM Top Control Dishwasher Adding a dish CAUTION: TO AVOID BURN INJURY: Open the door slowly and wait until the spray arms and wash action stop. Hot water may splash out of dishwasher.

  • Page 11: Factors Affecting Performance

    NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 11 Wednesday, January 24, 2018 11:02 AM NS-DWH1SS9/NS-DWH1WH9 2 Add rinse aid until the liquid touches the indicated fill level. Do not overfill since this can cause over-sudsing. Wipe up any spills with a damp cloth. The dispenser holds enough for 35 to 140 washes, depending on the dial setting.

  • Page 12: Maintaining Your Dishwasher

    NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 12 Wednesday, January 24, 2018 11:02 AM Top Control Dishwasher Maintaining your dishwasher CAUTION: TO AVOID BURN INJURY: Allow the heating element to cool before attempting to clean the interior of your dishwasher. Cleaning the stainless steel panel Clean the stainless steel door and handle regularly with a soft cloth and standard household cleaner to remove the debris.
  • Page 13 NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 13 Wednesday, January 24, 2018 11:02 AM NS-DWH1SS9/NS-DWH1WH9 4 Take out the fabric filter. 5 Flush the filters by holding them under running water. 6 Replace the fabric filter. 7 Replace the fine filter. 8 Replace the cylinder filter.

  • Page 14: Cleaning The Door And Tub Gaskets

    NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 14 Wednesday, January 24, 2018 11:02 AM Top Control Dishwasher Cleaning the door and tub gaskets Clean the door gasket with a damp cloth to remove food particles regularly. The inside of the dishwasher is self-cleaning under normal use. If needed, the tub gasket can be cleaned with a damp cloth. Use a brush to clean the opening in the end of the gasket.

  • Page 15: Troubleshooting

    NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 15 Wednesday, January 24, 2018 11:02 AM NS-DWH1SS9/NS-DWH1WH9 Troubleshooting Refer to this table to correct minor issues before calling for service. Error codes CODE MEANING POSSIBLE CAUSE • The water faucet is not opened Longer inlet time •...
  • Page 16 NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 16 Wednesday, January 24, 2018 11:02 AM Top Control Dishwasher PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The rinse aid dispenser is Fill the rinse aid dispenser. empty or the setting is too Increase the rinse aid setting. low. The dishes are not drying Dishes are loaded Reload the dishwasher as shown in "Preparing and...

  • Page 17: Specifications

    NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 17 Wednesday, January 24, 2018 11:02 AM NS-DWH1SS9/NS-DWH1WH9 Specifications Capacity Max 14 place settings Dimensions (W × D × H) 23.9 × 26.5 × 33.7 in. (606 × 674 × 857 mm) Weight 86.6 lbs. (39.3 kg)

  • Page 18: One-Year Limited Warranty

    During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 19 NS-DWH1SS9_WH9_17-0938_User MAN_V1_ENG.fm Page 19 Wednesday, January 24, 2018 11:02 AM NS-DWH1SS9/NS-DWH1WH9 www.insigniaproducts.com...
  • Page 20 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2018 Best Buy. All rights reserved.
