Summary of Contents for dispomed ModuFlex NRB

  • Page 1 Printed in Canada...

  • Page 2: Table Of Contents

    Assembled View With Optional Accessories . . . 13 Moduflex NRB with 3 patients circuits . . . . . . . 14 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Order Part Numbers .

  • Page 3: User Responsibility

    Dispomed regional service center . • This product, or any of its parts, should not be repaired other than in accordance with written instructions provided by Dispomed and by Dispomed trained personnel . • The product may not be altered without prior written approval from Dispomed .

  • Page 4: Standard And Optional Features

    De façon à répondre aux besoins des vétérinaires travaillant avec les petits animaux, ou aux centres de recherche avec des petits rongeurs ou encore ceux qui utilisent un circuit ouvert (Bain), Dispomed a développé le Moduflex Compact NRB . STANDARD FEATURES 0 .1 to 4 LPM O...

  • Page 5: Receiving , Assembly And Instructions

    RECEIVING AND ASSEMBLY INSTRUCTIONS Your Moduflex NRB anesthesia machine requires some assembly before use . RECEIVING In order to reduce the possibility of damage to a minimum during shipping, certain components have been detached from the unit . These components are packed separately within the shipping crate .
  • Page 6 RECEIVING, ASSEMBLY INSTRUCTIONS CONTINUED Remove the spider base from the box and Remove the accessories from the bag . slide the tapered end of the black post onto it . 805-0975-800...
  • Page 7 RECEIVING, ASSEMBLY INSTRUCTIONS CONTINUED Remove the head assembly from the inner Install the oxygen supply hose to the rear of box and insert into the top of the post (there the machine . is a large hole under the head assembly manifold) and tighten the head assembly by securing the screw onto the post using the key supplied .
  • Page 8 RECEIVING, ASSEMBLY INSTRUCTIONS CONTINUED Connect the other end of the oxygen tube to 50 p .s .i . (3 bars) oxygen supply . 805-0975-800...

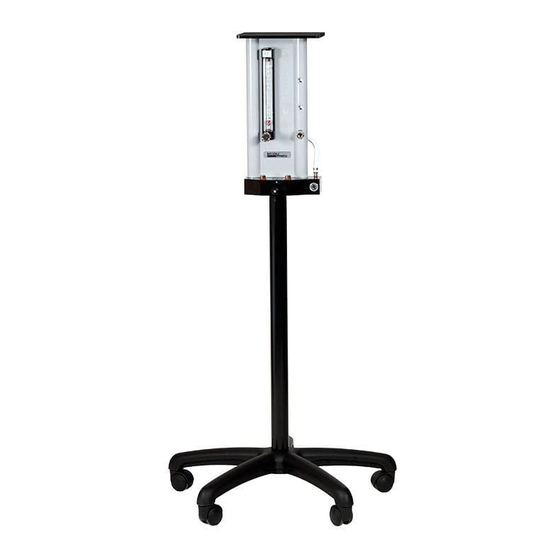

  • Page 9: Assembled View

    ASSEMBLED VIEWS Flowmeter Flush valve Black Post Spider Base 805-0975-800...

  • Page 10: Optional Accessories Assembly Instructions

    OPTIONAL ACCESSORIES ASSEMBLY INSTRUCTIONS VAPORIZER SCAVENGER INTERFACE Mount the vaporizer on the unit as Install the scavenger interface as per illustrated . Once mounted lock it in place interface instructions . with the vaporizer locking mechanism . During surgery the unused gas should be evacuated outside of the building to avoid it being inhaled by your employees and patients .
  • Page 11 OPTIONAL ACCESSORIES ASSEMBLY INSTRUCTIONS MODUFLEX BAIN E-CYLINDER HOLDER CYLINDER HOLDER Install Bain circuit adaptor as illustrated . Installation of dual cylinder holder . A Bain type open circuit on an anesthesia machine The cylinder holder can be helpful in many gives you better control during surgery .
  • Page 12 OPTIONAL ACCESSORIES ASSEMBLY INSTRUCTIONS WALL-MOUNT Install wallmount adaptor as illustrated . IMPORTANT : Always refer to the user manual of the option you are installing for more detailed instructions . 805-0975-800...

  • Page 13: Assembled View With Optional Accessories

    ASSEMBLED VIEW WITH OPTIONAL ACCESSORIES 805-0975-800...

  • Page 14: Moduflex Nrb With 3 Patients Circuits

    MODUFLEX NRB WITH 3 PATIENTS CIRCUITS Caution : when equipped with 3 fresh gas outlet, the bottom one must always be used, the 2 upper ones have check valves incorporated to prevent flow when not in use . Primary Output...

  • Page 15: Warranty

    DISPOMED WARRANTY Dispomed Ltd . guarantees that the Moduflex Any product which proves to be defective in Compact anesthesia machine is free from workmanship or material will, at Dispomed’s manufacturing defects for a period of five discretion, either be repaired or replaced .
  • Page 16 REPLACEMENT PART NUMBERS Flowmeter shield 930-0100-110 Quick connect 850-LC10004 845-S113 845-S114 845-S106 Flowmeter valve 930-0105-000 845-S010 Preassembled flush cartridge 975-0300-275 Fresh gas elbow 850-0030-000 805-0975-800...
  • Page 17 REPLACEMENT PART NUMBERS Quick Connect 850-LC10004 Fresh gas elbow 850-0030-000 805-0975-800...
  • Page 18 Manufactured by Dispomed ltd 745 Nazaire-Laurin Joliette (QC) Canada J6E 0L6 T : 1-800-363-1746 (Canada and U.S.A only) T : 1-450-759-9395 Fax : 1-450-759-8181 info@dispomed.com www.dispomed.com...
