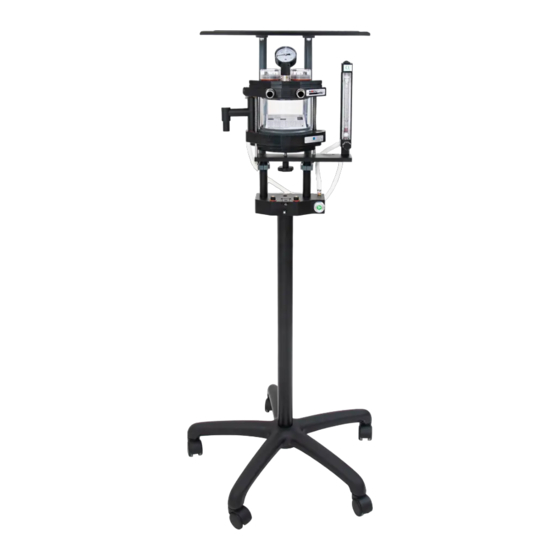

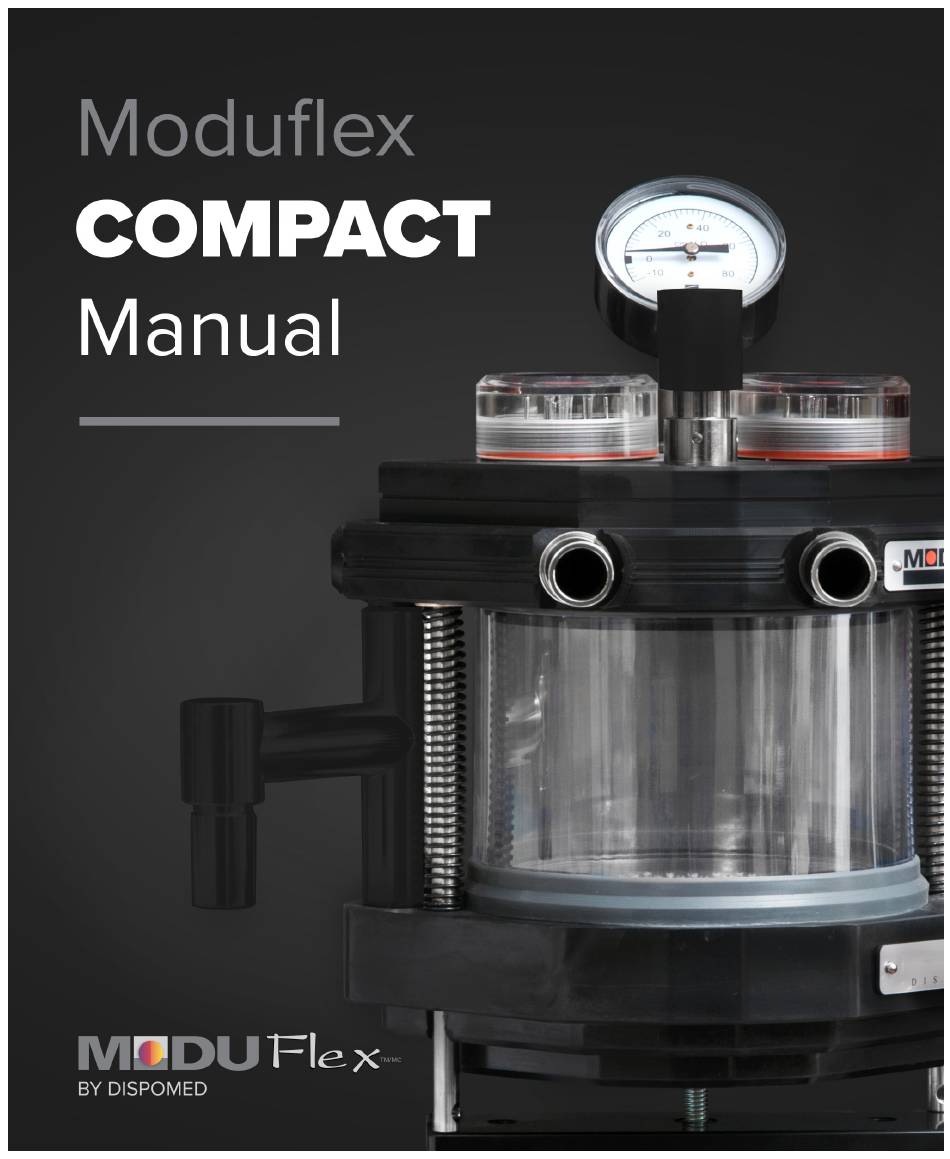

dispomed Moduflex COMPACT Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Moduflex COMPACT and is the answer not in the manual?

Questions and answers

Related Manuals for dispomed Moduflex COMPACT

Summary of Contents for dispomed Moduflex COMPACT

  • Page 2: Table Of Contents

    Moduflex Compact . . . . . . . . . . . . . . . . . . .

  • Page 3: User Responsibility

    Parts that are broken, missing, plainly worn, distorted or • contaminated should be replaced immediately . Should a repair or replacement become necessary, Dispomed • recommends placing a request by phone or in writing to the nearest Dispomed regional service center .

  • Page 4: Standard And Optional Features

    • Bain circuit adaptor • 0-1 LPM O2 flowmeter • Up to 2 flowmeters can be installed • Circuit pressure alarm • Shelf assembly • Wall mount unit • DISPOMED Ltd. / 1 800 363-1746 / info@dispomed.com / www.dispomed.com 805-0975-030...

  • Page 5: Receiving , Assembly And Instructions

    RECEIVING AND ASSEMBLY TM/MC INSTRUCTIONS Your Moduflex Compact anesthesia machine re- quires some assembly before use . RECEIVING In order to reduce the possibility of damage to a minimum during shipping, certain components have been detached from the unit . These com- ponents are packed separately within the ship- ping crate .
  • Page 6 (there is a large hole under the head assembly manifold) and tighten the head assembly by securing the screw onto the post using the key supplied . DISPOMED Ltd. / 1 800 363-1746 / info@dispomed.com / www.dispomed.com 805-0975-030...
  • Page 7 RECEIVING, ASSEMBLY TM/MC INSTRUCTIONS CONTINUED Remove the accessories from the bag . Install a breathing bag on the rotary bag mount of the absorber . 805-0975-030...
  • Page 8 Fill the canister with absorbent using loose-fill granules . (Caution: do not overfill the canister; leave approximately ¼” (5  mm) from the top empty.) Reinstall the canister and tighten the sealing screw . DISPOMED Ltd. / 1 800 363-1746 / info@dispomed.com / www.dispomed.com 805-0975-030...
  • Page 9 RECEIVING, ASSEMBLY TM/MC INSTRUCTIONS CONTINUED Install the oxygen supply hose to the rear of the Connect the other end of the oxygen tube to 50 machine . p .s .i . (3 bars) oxygen supply . 805-0975-030...

  • Page 10: Assembled View

    ASSEMBLED TM/MC VIEWS 1 Absorber container Flowmeter Flush valve Post Base DISPOMED Ltd. / 1 800 363-1746 / info@dispomed.com / www.dispomed.com 805-0975-030...

  • Page 11: Optional Accessories Assembly Instructions

    OPTIONAL ACCESSORIES TM/MC ASSEMBLY INSTRUCTIONS VAPORIZER SCAVENGER INTERFACE Insert the vaporizer into the bracket . Secure Install the universal bracket (not included) at the evaporator in place with the locking mecha- the desired height on the anesthesia machine nism . post .
  • Page 12 IMPORTANT: Always refer to the user manual of the closed position, which could cause pulmonary option you are installing for more detailed instruc- tions . trauma to the animal . DISPOMED Ltd. / 1 800 363-1746 / info@dispomed.com / www.dispomed.com 805-0975-030...
  • Page 13 OPTIONAL ACCESSORIES TM/MC ASSEMBLY INSTRUCTIONS CYLINDER HOLDER WALL MOUNT Installation of dual cylinder holders . Screw the wall bracket to the reinforced wall* . Insert the wall arm to the wall bracket, then The cylinder holder can be helpful in many situ- insert the anesthesia machine .
  • Page 14 Place the shelf on the two installed brackets and screw together . IMPORTANT: Always refer to the user manual of the option you are installing for more detailed instructions . DISPOMED Ltd. / 1 800 363-1746 / info@dispomed.com / www.dispomed.com 805-0975-030...

  • Page 15: Assembled View With Optional Accessories

    ASSEMBLED VIEW TM/MC WITH OPTIONAL ACCESSORIES Shelf 975-0700-700 p .14 Reusable Rebreathing Bag 940-0200-020 p .7 Bain Circuit Adaptor 965-0500-000 p .12 Vaporizer Patient Circuit Alarm 990-VI5P-SVEEZ p .11 987-0010-000 p .12 Cylinder Holder 975-0300-400 p .13 Y Patient Circuit 940-3704-800 p .8 Semi-active Scavenger Interface 985-0035-000 p .11...
  • Page 16 Obstruct the patient’s circuit outlet with a plug gas outlet of the anesthesia machine . or your thumb . Open flowmeter to approximately 200 ml . Close the gas evacuation valve . DISPOMED Ltd. / 1 800 363-1746 / info@dispomed.com / www.dispomed.com 805-0975-030...
  • Page 17 DAILY LEAK TM/MC CHECKS PROCEDURES Press on the oxygen flush button and hold Check the manometer . The pressure must until the pressure on the manometer indicates not drop (but it can increase) . If the pressure approximately 30 cm H2O . drops, replace the patient circuit and the bag and try again .

  • Page 18: Moduflex Compact

    MODUFLEX COMPACT TM/MC ANESTHESIA MACHINE DISPOMED Ltd. / 1 800 363-1746 / info@dispomed.com / www.dispomed.com 805-0975-030...

  • Page 19: Daily Leak Check Procedure

    ANNUAL TM/MC MAINTENANCE Prerequisite: Preventative maintenance kit # 975-0900-900 980-0300-180 The maintenance kit contains all the necessary parts to per- form the annual maintenance . 845-S227 Refer to this technical draw- ing the parts are identified . It is important to perform the daily leak check procedure (page 17) once the mainte- 845-S019...

  • Page 20: Consumable Materials List

    18 .9 liters : # 905-8862-000 1 liter: # 940-0200-010 2 liters: # 940-0200-020 3 liters: # 940-0200-030 GAS EVACUATION KRYTOX TUBING 7g : # 850-0052-000 152 .4cm / 5’ : # 985-0065-000 DISPOMED Ltd. / 1 800 363-1746 / info@dispomed.com / www.dispomed.com 805-0975-030...

  • Page 21: Warranty

    . to such damage, injury or loss, the product SERVICE AND INFORMATION CENTER was: Dispomed Ltd is proud to offer its customers Damaged, misused or misapplied; • an online or telephone service to answer Repaired, altered or modified by a any questions or concerns regarding its •...
  • Page 22 Pressure gauge -20 +100 CM Rotary bag mount 900-6050-000 980-0300-040 Dome Gas evacuation valve 980-0300-155 985-0050-000 Flowmeter glass 930-0100-110 Flowmeter Soda lime container cartridge 980-0300-080 930-0105-000 Flush cartridge 975-0300-275 DISPOMED Ltd. / 1 800 363-1746 / info@dispomed.com / www.dispomed.com 805-0975-030...
  • Page 23 REPLACEMENT TM/MC PART NUMBERS Quick Connect 850-LC10004 Fresh gas elbow 850-0030-000 805-0975-030...
  • Page 24 TM/MC Manufactured by Dispomed ltd Thank you for purchasing a Dispomed product. If you have any questions, please feel free to contact customer service . 745 Nazaire-Laurin Joliette (QC) Canada J6E 0L6 T . 1-800-363-1746 (Canada and U .S .A only) T .
