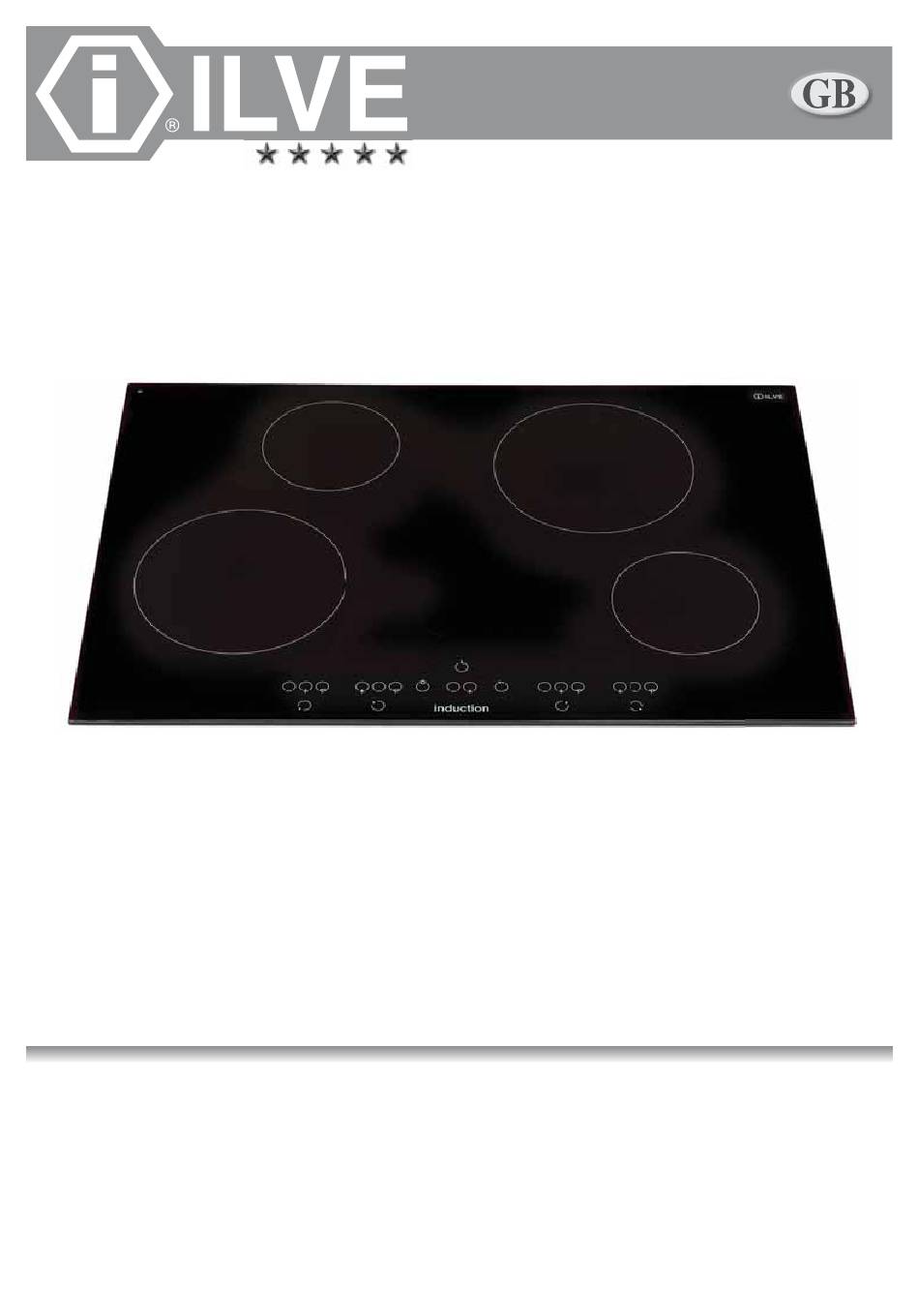

- Page 1 INDUCTION HOB INDUCTION HOB KHVI75TC KHVI75TC Installation and users instruction cod. I/301/00/28 05-2015...
-
Page 2: Table Of Contents
Index Description ..................3 Important safety warning ............4 General description ..............7 Ventilation ....................... 7 First switch-on ......................7 Control description ............... 8 Basic functions ......................8 Control knob key ...................... 8 Switching the hob off and on ..................9 Select the power level of a zone ................. -
Page 3: Description
Description Zone Diameter Ø (mm) Min. diameter pot Ø (mm) Power (watt) 1500 1200 Booster (watt) 2000 1600 Maximum power (wattt) 7200... -
Page 4: Important Safety Warning
Important safety warning READ CAREFULLY BEFORE USING • Only qualifi ed technicians should install the appliance. The techni- cian will not be held responsible for any damages caused by electri- cal malfunctions. • The hob must be installed in the appropriate inset. •... - Page 5 Important safety warning • WARNING: during and after use, the hob’s surface will be very hot. • Make sure that the power cable does not come into contact with the glass or a pot. • Magnetized objects such as credit cards, fl oppy disks, and calcula- tors should not be placed near the appliance when it is being used.
- Page 6 Important safety warning • If there is a drawer or a panel under the hob, this must be at least 2 cm from the lower part of the hob to ensure proper ventilation. • Do not place infl ammable objects inside the draw located under the hob.
-
Page 7: General Description
General description Ventilation Ventilation of the hob is completely automatic. The cooling fan for the electronics located under the hob works at slow speed up to the temperature level of the electronics. When the hob is used for a long time the speed of the cooling fan increases. -
Page 8: Control Description
Control description Dispaly description Displayed Description value Zero - The cooking zone is turned on Level of power - Select the cooking level Presence of pot - Absence of pot or unsuitable pot Excess power - The pre-set power level has been exceeded(<7200W) Error - Cooking zone anomaly Residual heat - The cooking zone is hot Booster - Excess power in the cooking zone... -
Page 9: Switching The Hob Off And On
Control description Switching the hob off and on The hob comes on by pressing the on/off switch for one second. An acoustic signal and the appearance of “0” on the two lateral display (one for each cooking zone) indicate that it is on. The appliance will switch off, in the event that once on, no commands are given for 10 seconds. -
Page 10: Hob Power Regulation
Control description Keyboard lock Selecting the keyboard lock command for one second, acts to either activate or disconnect the keyboard. If the led that corresponds to the command is lit up, this means that the keyboard is locked. The keyboard lock may be activated when the four cooking zones are on, or when the hob is off. -
Page 11: Advice When Cooking
Advice when cooking Pots Suitable materials: steel, enamelled steel, cast iron, ferromagnetic steel, aluminium with ferromagnetic bot- tom. Unsuitable materials: aluminium and steel without a ferromagnetic bottom, copper, ceramics, porcelain, glass, brass. In order to verify compatibility of a pot, place a pot containing a minimum amount of water on the cooking zone. Setting the knob at “9”, the water should boil in just a few seconds. -
Page 12: Maintenance And Cleaning
Maintenance and cleaning • Switch the appliance off before cleaning it. • Do not clean the glass while it is still hot; you could burn yourself. • Remove small stains with a damp cloth and then fi nish off with a dry cloth. •... -
Page 13: Installation
Installation Respect for the environment Packaging material is ecological and can be recycled. The appliance contains noble metals. Current regulations apply to recycling. When the time comes to scrap your appliance, you should utilize the various options for disposal provided by your dealer and/or by your local authorities;... -
Page 14: Electrical Connection
Installation Electrical connection Installation of the induction hob should be performed by specialized personnel and carried out in compliance with current regulations. Make sure that the parts in tension underneath the hob are protected. The outline for the electrical connection is indicated on the label near the terminal board. In case of direct connection to the network it will be necessary to interpose an omnipolar switch with a minimum opening between the contacts of 3 mm. -
Page 15: Note
Note... - Page 16 Note...
