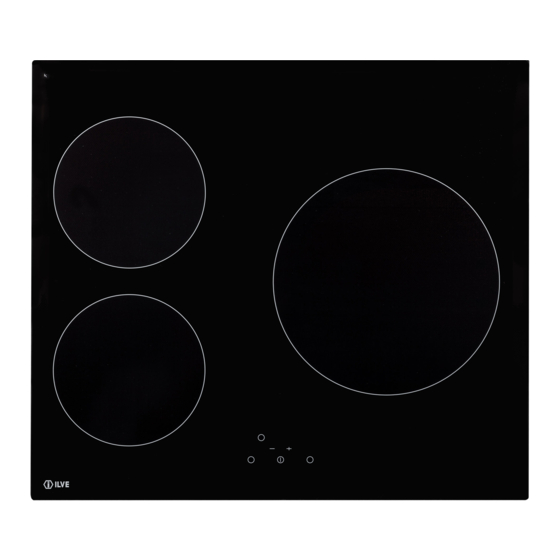

- Page 1 INSTRUCTION MANUAL FOR INDUCTION HOBS MODELS: ILD603B & ILD603W...
-
Page 3: Table Of Contents
Dear customer, Thank you for having chosen our induction ceramic hob. In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for a later consulting. SUMMARY SAFETY ............................... -
Page 4: Safety
SAFETY Precautions before using Unpack all the materials. The installation and connecting of the appliance have to be done by approved specialists. The manufacturer can not be responsible for damage caused by building-in or connecting errors. To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface. -
Page 5: Precautions Not To Damage The Appliance
Never cover the appliance with a cloth or a protection sheet. This is supposed to become very hot and catch fire. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 6: Precautions In Case Of Appliance Failure
Precautions in case of appliance failure If a defect is noticed, switch on the appliance and turn off the electrical supplying. If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service. ... -
Page 7: Description Of The Appliance
Type Zones Diameter Booster Power* Power Power* detection Front left 180 mm 1400 W 1850 W 100 mm ILD603B 5550 W Rear left 180 mm 1400 W 1850 W 100 mm ILD603W Right 270 mm 1850 W 2100 W 110 mm... -
Page 8: Ventilation
Ventilation The cooling system is fully automatic. The cooling fan starts with a low speed when the calories brought out by the electronic system reach a certain level. The ventilation starts his high speed when the hob is intensively used. The cooling fan reduces his speed and stops automatically when the electronic circuit is cooled enough. -
Page 9: Pan Detection
Pan detection The pan detection ensures a perfect safety. The induction doesn’t work: If there is no pan on the heating zone or if this pan is not adapted to the induction. In this case it is impossible to increase the power and the display shows [ U ]. This symbol disappears when a pan is put on the heating zone. -
Page 10: Control Panel Locking
To stop the cooking time : Action Control panel Display Zone selection Press key [ O ] [ 0 ] To select « Timer » Press simultaneously [ - ] and [ + ] The remaining time To stop the « Timer » Press key [ - ] [ 00 ] then stops If several timers are activated repeat the process. -
Page 11: Cooking Advices
COOKING ADVICES Pan quality Adapted materials : steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom. Not adapted materials : aluminium and stainless-steel without ferromagnetic bottom, cupper, brass, glass, ceramic, porcelain. The manufacturers specify if their products are compatible induction. To check if pans are compatibles : ... -
Page 12: Examples Of Cooking Power Setting
Examples of cooking power setting (the values below are indicative) 1 to 2 Melting Sauces, butter, chocolate, gelatine Reheating Dishes prepared beforehand 2 to 3 Simmering Rice, pudding, sugar syrup Defrosting Dried vegetables, fish, frozen products 3 to 4 Steam Vegetables, fish, meat 4 to 5 Water... -
Page 13: Environment Preservation
One or all cooking zone cut-off : The safety system functioned. You forgot to cut-off the cooking zone for a long time. One or more sensitive keys are covered. The pan is empty and its bottom overheated. ... -
Page 14: Installation Instructions
Fitting - installing: The cut out sizes are: Reference Cut-size ILD603B 560 x 490 mm ILD603W Ensure that there is a distance of 50 mm between the hob and the wall or sides. The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed with plenty of space on either side. - Page 15 A separation panel at least 20mm from the bottom of the cooktop must be included during installation to prevent access to the underside of the appliance. This panel can be made of any non-combustible rigid material. If the hob is going to be installed on the top of an oven, precautions must be taken to guarantee an installation in accordance with current accident prevention standards.
-
Page 16: Electrical Connection
ELECTRICAL CONNECTION The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously. Protection against the parts under tension must be ensured after the building-in. ... - Page 20 21028-0...
