Leviton OSWHB-I Install Manual

PK-93596-10-00-0A
WARNINGS AND CAUTIONS:
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Sensors must be mounted on a vibration free surface.
• All sensors must be mounted at least 6 feet away from air vents.
• Do not touch the surface of the lens. Clean outer surface with a damp cloth only.
Tools needed to install your Sensor:
Slotted/Phillips Screwdriver Electrical Tape
Pliers Pencil
Cutters
Parts Included List:
Sensor (1)
#8-32 x 1/2" Screw (2)
#8-32 x 1-1/2" Screw (2)
#8-32 Washer and Nut (2)
DESCRIPTION
The Occupancy Sensor is a low-voltage infrared sensor that works with the OSP xx
Series and CN100 power pack to automatically control lighting. The sensor turns the
lights on and keeps them on whenever occupancy is detected and will turn them off after
the 'delayed-off time' has expired.
The sensor continually analyzes and adjusts to changing conditions. The sensor uses
the latest microprocessor-based technology which permits it to continually adjust and
optimize its performance.
Infrared motion detection gives higher false triggering immunity that yields a sensor with
excellent performance.
INSTALLING YOUR OCCUPANCY SENSOR
√
NOTE: Use check boxes when Steps are completed.
WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER
Step 1
at circuit breaker or fuse and test that power is off before wiring!
OFF ON
OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
Preparing and connecting wires:
Step 2
1/2"
Cut
(1.3 cm)
(if necessary)
Strip Gage (measure
bare wire here
Typical Installations:
Step 3
Listed are 2 typical installation options (A and B). Choose one that best suits
your needs. Other methods of installation may be possible but they have not
been described here. Note that the wall sensor can be wall mounted or ceiling
mounted simply by rotating the neck. This gives greater flexibility in attaining
the desired coverage.
A. Wall or Ceiling Installation Using Screws (Mounting Option A):
NOTE: You may use the mounting screws, nuts and washers included, or screws in
combination with commercially available wall anchors.
1. Select location for mounting of sensor for your application (refer to
Mounting Location Diagram).
2. Make a hole in the wallboard or ceiling large enough to pass the wire
connections and wire nuts through (approximately 1" diameter).
3. Drill holes for mounting screws using mounting bracket as template.
Infrared Wall Mounted Occupancy Sensor
Cat. Nos. OSWHB-I, OSWLR-I, OSWWV-I
To be used with 24VDC OSP xx Series and CN100 Power Pack Class II Low-Voltage Wiring
INSTALLATION INSTRUCTIONS
Catalog No.
OSWHB-I0W
OSWLR-I0W
OSWWV-I0W
Step 3 cont'd
4. Install the mounting bracket of the wall sensor to the wallboard or ceiling
using the included screws, nuts and washers.
5. Pass wires through the base cover/neck assembly (refer to Mounting
Option Diagram A).
6. Class II Wiring: Connect low-Voltage wires from Power Pack to Sensor per
WIRING DIAGRAM as follows: Twist strands of each lead tightly and, with
circuit conductors, push firmly into appropriate wire connector. Screw
connectors on clockwise making sure that no bare conductor shows below
the wire connectors. Secure each connector with electrical tape.
7. Push wire connections through the center hole of the back cover and into the
wall or ceiling.
8. Snap neck and base cover onto mounting bracket in the desired orientation.
9. Push wires through the hole and begin to fasten the plastic nut around the
back of the sensor body. Move the sensor body to the desired orientation and
then continue to tighten the nut around the sensor body.
10. Restore power at circuit breaker or fuse to Power Pack. INSTALLATION IS
COMPLETE.

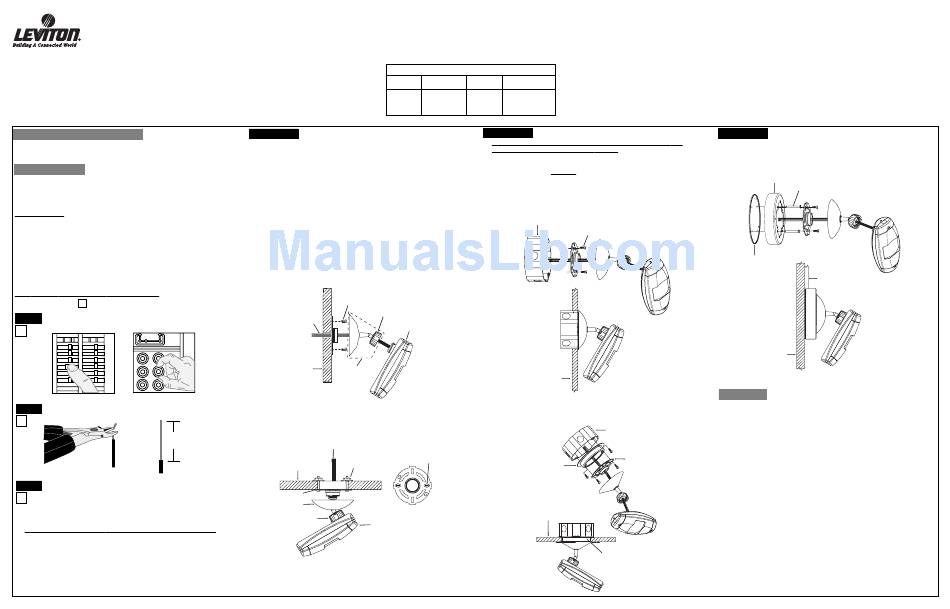

Mounting Option Diagram A
Occupancy Sensor Mounted to Wallboard Using Screws
Mounting Screws
(2 places)
Plastic Nut
Low-Voltage
Wires
Sensor
Wallboard Base Cover/
Neck Assembly
Occupancy Sensor Mounted to Wallboard or
Drop Ceiling Using Screws, Nuts and Washers
Low-Voltage
Wires
Screw, Nut and
Mounting Screws
Washer
(2 places)
(2 places)
Drop Ceiling
Mounting Base
Base Cover
Mounting Base
(top view)
Plastic Nut
Sensor
CATALOG ITEMS
Current
Description Consumption
Coverage
High Bay
20mA 55 ft. mounted at 30 ft
Long Range
20mA 100 ft. mounted at 10 ft.
Wide View 20mA 2500 sq. ft.
Step 3 cont'd
B. Wall or Ceiling Using Junction Box or Surface Mount Raceway
Installation (refer to Mounting Diagrams):
NOTE: You may use the mounting screws, nuts and washers included, or screws in
combination with commercially available wall anchors.
NOTE: Listed below are suggested JUNCTION BOX installation applications which
require mounting to conduit in one of the following ways:
Mounting Option Diagram B
Occupancy Sensor Mounted to Octagon
Box Installed Flush to Wallboard
Octagon Box
4" x 1 1/2" deep
Mounting Screws (2 places)
Wallboard
Occupancy Sensor Mounted to Octagon
Box Installed Flush to Wallboard Ceiling or Drop Ceiling
Octagon Box
4" 1 1/2" deep
4" Octagon
Raised Cover
Wallboard Ceiling
4" Octagon
Raised Cover
FCC COMPLIANCE STATEMENT:
T his device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
This device must not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Step 3 cont'd
Occupancy Sensor Mounted to Wallboard
Using Round Fixture with Raceway
Wire Mold Round Fixture
Box Cat. No. 5738
(for raceway mount)
Mounting Screws for Wiire Mold Fixture (2 places)
Wire Mold
Back Cover
Wallboard
OPERATION
Motion detection by the infrared sensor will turn on the lights as well as keep them
on. When motion is not detected, the lights will turn off after the delayed-off time.
• Delayed-Off time – The sensor is designed to turn the lights off if no motion is
detected after a specified time. This length of time is called the delayed-off time
and is set using the timer (Black) knob on the sensor. The adapting patterns will
modify the delayed-off time to fit the parameters of each installation based on
environmental conditions and occupancy patterns.
• Walk-through Mode – The walk-through feature is useful when a room is
momentarily occupied. With this feature, the sensor will turn the lights off shortly
Mounting Base
after the person leaves the room.
The walk-through feature works as follows: When a person enters the room, the
lights will turn on. If the person leaves the room before the default walk-through
time-out of 2.5 minutes, the sensor will turn the lights off. If the person stays in the
room for longer than 2.5 minutes, the sensor will proceed to the standard
operation.
• LED Operation – There are two LED indicators that will flash when motion is
detected. The LED flash can be disabled using the LED disable switch setting
(refer to Table 2). Red flash indicates motion detection by infrared technology.
Wire Mold Raceway
