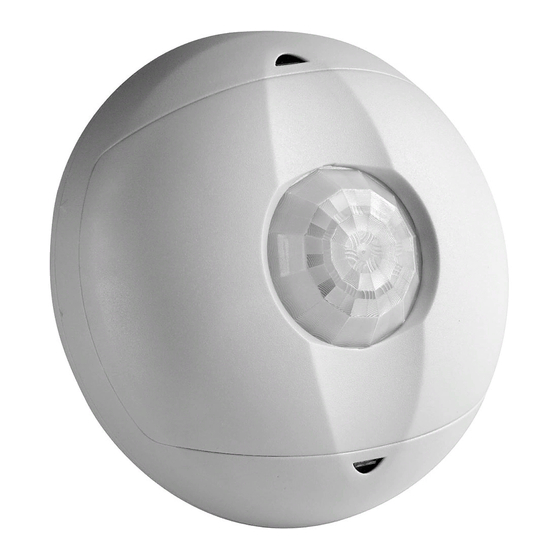

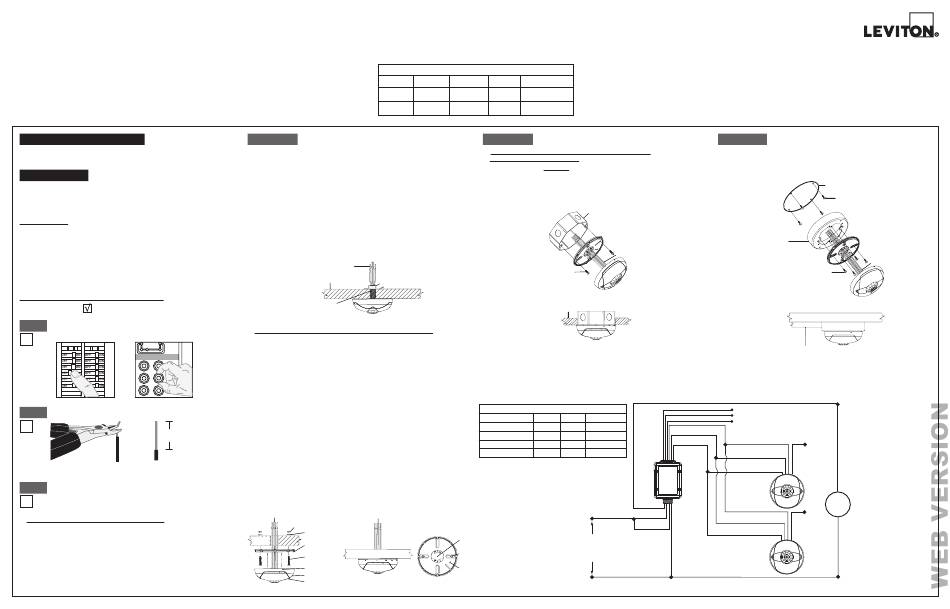

Infrared ceiling mounted occupancy sensor

Advertisement

Quick Links

WARNINGS AND CAUTIONS
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that power is off before wiring!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
• Sensors must be mounted on a vibration free surface.
• All sensors must be mounted at least 6 feet away from air vents.
• Do not touch the surface of the lens. Clean outer surface with a damp cloth only.
Tools needed to install your Sensor
Slotted/Phillips
Screwdriver
Electrical Tape
Pliers
Pencil
Cutters
Parts Included List
Sensor (1)
Threaded Rod (1) and Hex Nut (1)
#8-32 x 1/2" Screw (2)
Half Mask (1)
#8-32 x 1-1/2" Screw (2)
360° Perforated Mask (1)
#8-32 Washer and Nut (2)
Plastic Washer (1)
DESCRIPTION
The Occupancy Sensor is a low-voltage infrared sensor that works with the
OSPxx Series and CN100 power pack to automatically control lighting. The sensor
turns the lights on and keeps them on whenever occupancy is detected and will turn
them off after the 'delayed-off time' has expired.
The sensor continually analyzes and adjusts to changing conditions. The sensor uses
the latest microprocessor-based technology which permits it to continually adjust and
optimize its performance.
Infrared motion detection gives higher false triggering immunity that yields a sensor
with excellent performance.
INSTALLING YOUR OCCUPANCY SENSOR
NOTE: Use check boxes
when Steps are completed.
WARNING:
TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF
Step 1
POWER at circuit breaker or fuse and test that power is off before wiring!
Preparing and connecting wires:
Step 2
Strip Gage
1/2"
(measure bare
(1.3 cm)
wire here)
Cut
(if necessary)
Typical Installations:
Step 3
Listed are 3 typical installation options (A, B, and C). Choose one that
best suits your needs. Other methods of installation may be possible but
they have not been described here.
A. Drop Ceiling Installation (Mounting Option A):
NOTE: Use the threaded rod included.
1. Select location for mounting of sensor and proper masking for your application
(refer to Mounting Location Diagram).
2. Use the supplied threaded rod or other methods to make a hole (1/2" to 1") in the ceiling
tile just large enough to pass the body of the threaded rod through.
3. Insert the sensor wires through the flared end of the threaded rod. Position the threaded
rod to the base of the sensor.
4. Insert the flared end of the threaded rod into the opening in the bottom of the sensor
and twist to lock into place.
Infrared Ceiling Mounted Occupancy Sensor
Cat. No. OSCØ4-I and OSC15-I
To be used with 24VDC OSPxx Series and CN100 Power Pack Class II Low-Voltage Wiring
INSTALLATION INSTRUCTIONS
Cat. No.
Description
High
OSC04-I0W
Density
Extended
OSC15-I0W
Range
Step 3 cont'd
5. Push the wires into the hole in the ceiling tile and insert the threaded rod until the
sensor is flush with the tile.
6. Insert wires through the hole in the included washer, then place the included washer
over the rod and screw on the included hex nut.
7. Class II Wiring: Connect low-Voltage wires from Power Pack to Sensor per WIRING
DIAGRAM as follows: Twist strands of each lead tightly and, with circuit conductors,
push firmly into appropriate wire connector. Screw connectors on clockwise making
sure that no bare conductor shows below the wire connectors. Secure each connector
with electrical tape.
8. Rotate the sensor to the desired orientation. Note that the sensor base and back cover
are keyed. To lock the device in place, ensure that the arrows are not aligned.
9. Restore power at circuit breaker or fuse to Power Pack.
INSTALLATION IS COMPLETE.
Mounting Option Diagram A
Occupancy Sensor Mounting to Drop Ceiling Using Threaded Rod
Low-Voltage Wires
Drop Ceiling
1" thick maximum
Nut
Washer
Threaded Rod
NOTE: Wires threaded through
the Threaded Rod
B. Wallboard or Drop Ceiling Installation (Mounting Option B):
NOTE: You may use the mounting screws, nuts and washers included, or screws in
combination with commercially available wall anchors.
1. Select location for mounting of sensor and proper masking for your application
(refer to Mounting Location Diagram).
2. Make a hole in the ceiling tile or wallboard large enough to pass the wire connections
and wire nuts through (approximately 1" diameter).
3. Remove the back cover of the sensor. Hold the back cover and body of the sensor and
rotate until the two arrows line up and pull apart.
4. Install back cover of the ceiling sensor to the wallboard or drop ceiling using the
included screws, nuts and washers, or screws in combination with commercially
available wall anchors.
5. Class II Wiring: Connect low-Voltage wires from Power Pack to Sensor per WIRING
DIAGRAM as follows: Twist strands of each lead tightly and, with circuit conductors,
push firmly into appropriate wire connector. Screw connectors on clockwise making
sure that no bare conductor shows below the wire connectors. Secure each connector
with electrical tape.
6. Push wire connections through the center hole of the back cover and into the ceiling.
7. Secure the sensor body to the back cover by aligning the arrows. Lock it by turning the
sensor such that the arrows do not line up.
8. Rotate the sensor to the desired orientation.
9. Restore power at circuit breaker or fuse to Power Pack.
INSTALLATION IS COMPLETE.
Mounting Option Diagram B
Occupancy Sensor Mounted to Wallboard or Drop Ceiling Using Screws
Low-Voltage Wires
Low-Voltage Wires
Nut (2 places)
Washer (2 places)
Wallboard
Sensor Back
Ceiling
Cover
Mounting
Wallboard Ceiling
Screws
(2 places)
Keylock Arrow
Sensor Base
Back Cover shown mounted
Sensor Front Cover
on ceiling with screws
CATALOG ITEMS
FCC COMPLIANCE STATEMENT:
Current
Suggested
Consumption
Coverage
Mounting Location
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
Mount in corner/
20mA
450 sq. ft.
(1) This device must not cause harmful interference, and (2) This device must accept any interference received,
over doorway
including interference that may cause undesired operation.
Mount in center of
20mA
1500 sq. ft.
room/area
Step 3 cont'd
C. Junction Box or Surface Mount Raceway Installation
(refer to Mounting Diagrams):
NOTE: Listed below are suggested JUNCTION BOX installation applications which
require mounting to conduit in one of the following three ways:
Occupancy Sensor Mounted to Octagon
Box Installed Flush to Wallboard Ceiling
Octagon Box
4" x 1-1/2" deep
Low-Voltage
Wires
#8-32 Screws
(2 places)
Wallboard or
Drop Ceiling
TABLE 2: WIRE DESIGNATIONS
Name
Color
Gage
Temp/Voltage
Power (+24 V)
Red
24
200° C/ 600V
DC Return
Black
24
200° C/ 600V
Occupancy
Blue
24
200° C/ 600V
Occupancy/Photocell
Gray
24
200° C/ 600V
Hot (Black)
Back Cover open center to
route Low-Voltage Wires
Line
120/277/347 VAC
Mounting Screw
60Hz
Back Cover internal
surface shown
Neutral (White)
Step 3 cont'd
Occupancy Sensor Mounted to Round Fixture
with Raceway for Wallboard ibstallation
Wire Mold Round Fixture
Box Cat. No. V5738
(for raceway mount)
Mounting Screws
(4 places)
Wallboard Ceiling
Wire Mold Raceway
(use applicable fittings)
Wiring Diagram: Multiple Sensor, Single Power Pack
OSPxx Series
Power Pack
Sensor
NC - Brown
To HVAC
Common-Green
NO-Brown/White
Red (24VCD)
Black
Gray
*
Red
Blue
(Control)
Black
Blue
Blue
Red
Blue
*
Gray
Black
Black
Blue
White
PK-93583-10-00-0F
Wire Mold Back Cover
Back Cover Screws
(4 places)
Low-Voltage Wires
*NOTE: When using
the Photocell function,
System
connect the Gray wire of
the Sensor to the Blue
wire of the Power Pack.
DO NOT use the Blue wire
of the Sensor.
Black
NOTE: Ensure to cap wire
that is not being used.
Load
White
