CONTROL PANEL OVERVIEW

4.1
START Switch: The Start switch initiates the catalyst baking cycle. This switch is a
push-release momentary action switch. When activated, a timer is set to run for five
(5) hours. During this time the oven heats to a minimum of180°C and bakes the
catalyst. When the timer has completed the heating cycle, the element is deactivated
and the oven is allowed to cool.
4.2
HEATING light: This red pilot light is marked HEATING and indicates the baking
phase of the cycle is in progress. This light turns ON when the START switch is
activated and remains ON until the oven temperature cools to approximately 40°C.
4.3
Cycle Completed light: this green pilot light is marked CYCLE COMPLETED and
indicates when the baking cycle is complete and the catalyst is cool enough to be
safely removed from the oven.

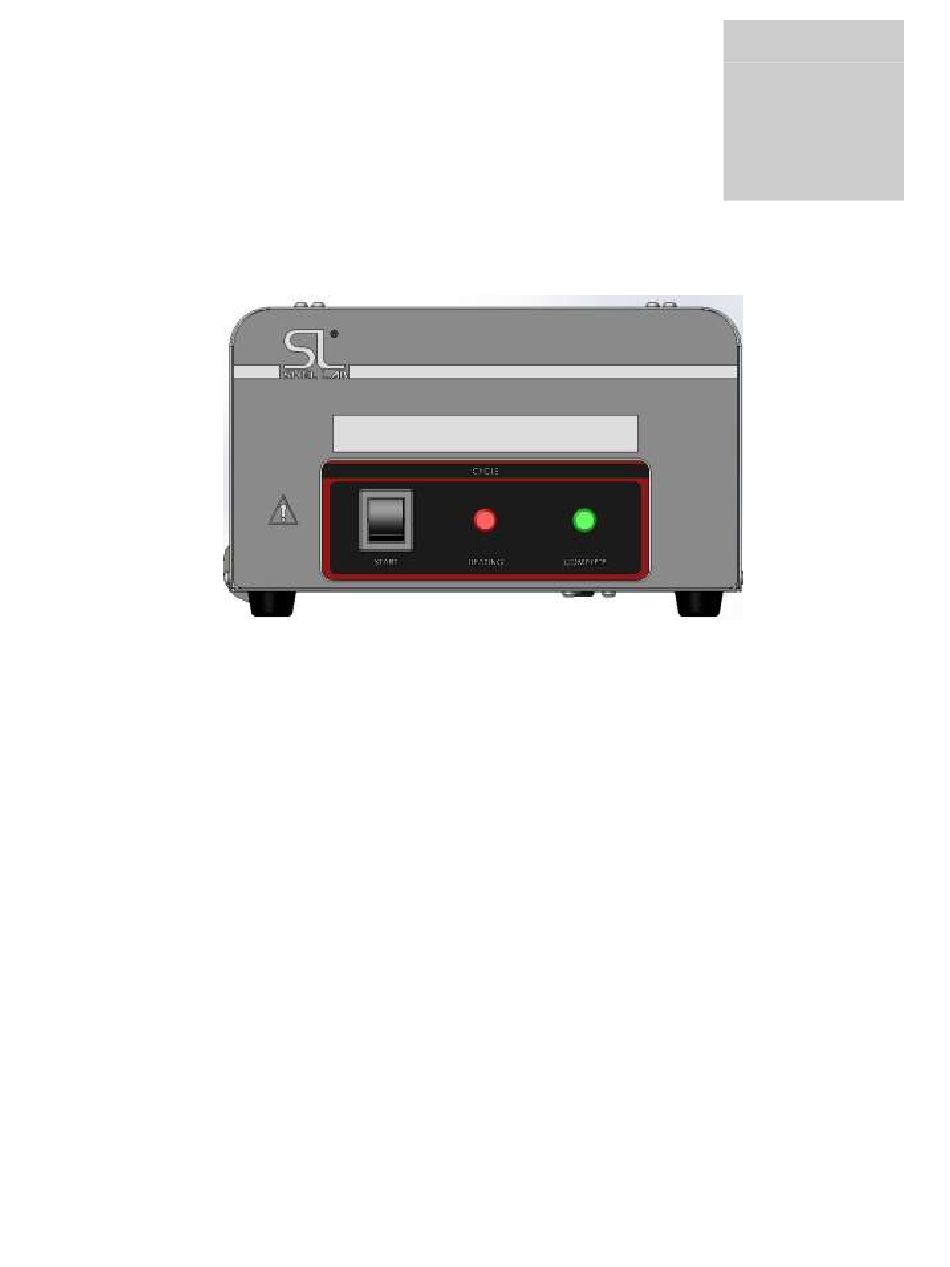

Figure 1
4
Section
6
