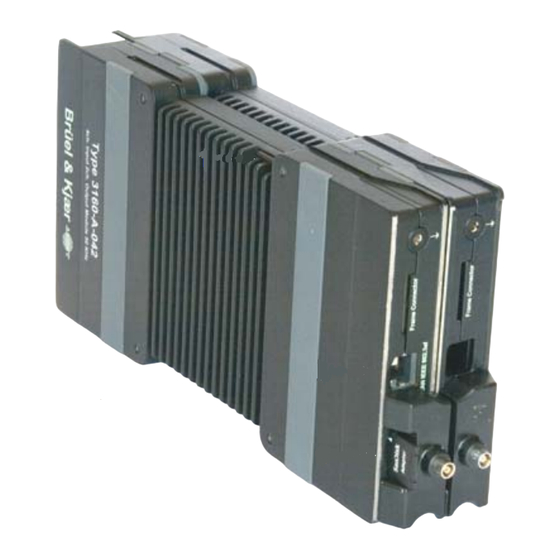

BRUEL & KJAER LAN-XI Notar BZ-7848-A Quick Start Manual
  1. Manuals
  2. Brands
  3. BRUEL & KJAER Manuals
  4. Measuring Instruments
  5. LAN-XI Notar BZ-7848-A
  6. Quick start manual

BRUEL & KJAER LAN-XI Notar BZ-7848-A Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Start Guide
LAN-XI Notar™ BZ-7848-A
BR 1754–13

Advertisement

Table of Contents
loading

Related Manuals for BRUEL & KJAER LAN-XI Notar BZ-7848-A

Summary of Contents for BRUEL & KJAER LAN-XI Notar BZ-7848-A

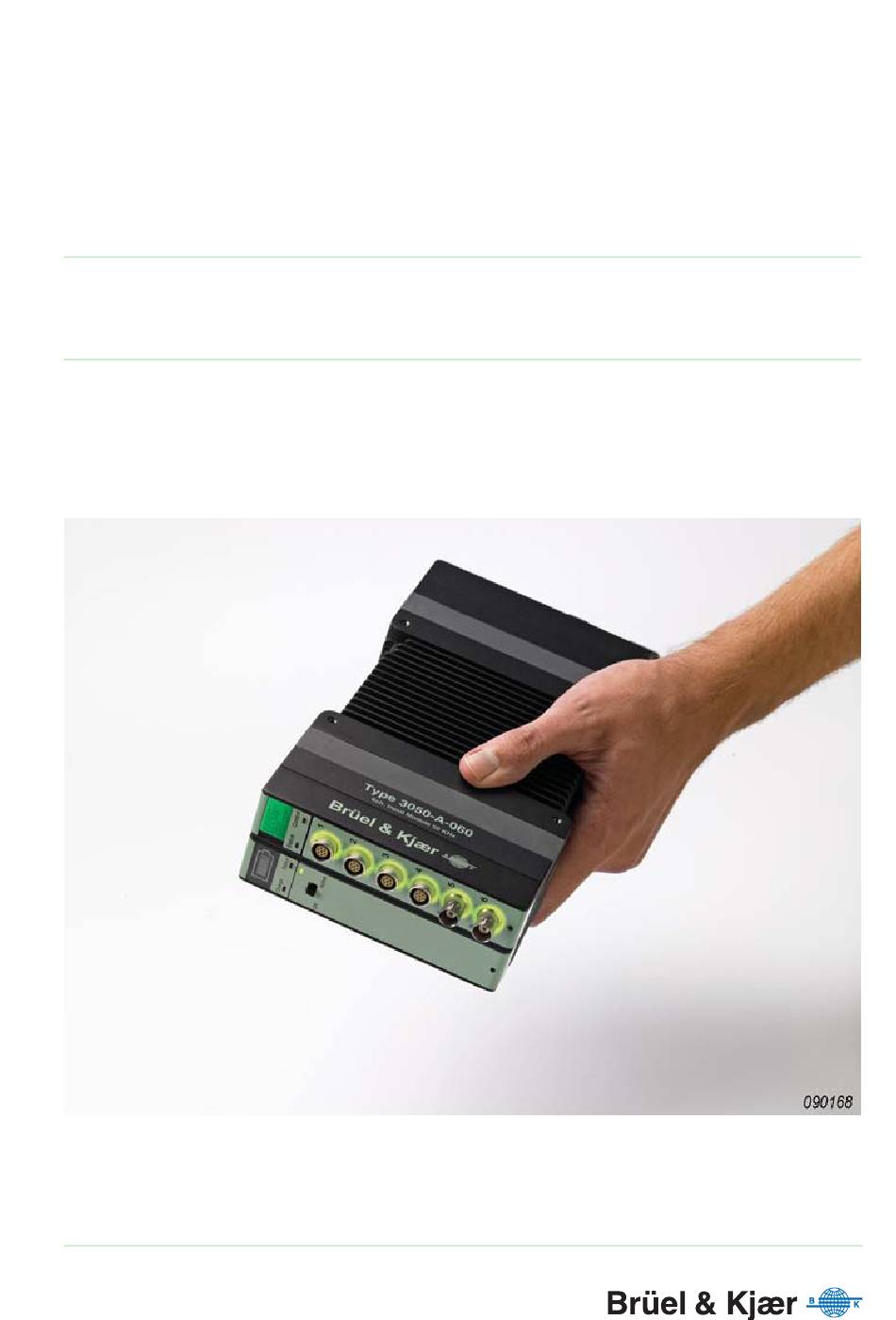

  • Page 1 Quick Start Guide LAN-XI Notar™ BZ-7848-A BR 1754–13...

  • Page 2: Table Of Contents

    Table of Contents Installation – Single Module..................3 Connection and Setup .................... 4 Connecting a LAN-XI Module to a Network ............4 Connection of LAN-XI Module Directly to PC ........... 5 Setup of LAN-XI Notar ..................6 LAN-XI Software Updates ..................6 Using LAN-XI Notar ....................

  • Page 3: Installation - Single Module

    Installation – Single Module 090122/1 1) If the system includes optional Battery Module for LAN-XI Type 2831-A, connect it to the right-hand side (looking from the back) of the LAN-XI module using the included hex wrench and the four captive screws. Shown: Hex Wrench QX-1315 , 2 mm.

  • Page 4: Connection And Setup

    Control button for 5 seconds while the cursor is on ‘LAN reset’ in the display menu. Included with LAN-XI Module Types 3050, 3052, 3053, 3056, 3160 and 3161 † Included with Battery Module for LAN-XI Type 2831-A ‡ Included with LAN-XI Notar BZ-7848-A...

  • Page 5: Connection Of Lan-Xi Module Directly To Pc

    When the front-end is a DHCP client, simply connect it to the network and network settings will be supplied by the DHCP server. Using a Static IP To assign the module a static IP, first connect the module directly to the computer or through a DHCP network as explained above.

  • Page 6: Setup Of Lan-Xi Notar

    PC tray if the notification icon is switched on, and (b) on the module, when it displays the IP address 0.0.0.0. 2) Connect the PC and LAN-XI module with a standard LAN cable and wait until an IP address is obtained. The message that the PC may give about having limited or no connectivity (c) is an indication that the connection is working.
  • Page 7 1) Connect to the module’s home page by typing the IP address from the front of the module into your web browser. 2) Click Downloads. 3) Select LAN-XI under Step 1 and LAN-XI Software Updates under Step 2. 4) Right-click on the latest Firmware.lxi and download the binary firmware to any location on your PC.
  • Page 8 6) Click Browse... and navigate to the file. 7) Click Start update.

  • Page 9: Using Lan-Xi Notar

    Using LAN-XI Notar 1) Open front-end’s page from browser click Recorder in the menu. 2) Click Create new>> in the recordings window. 3) Name the recording, set up the parameters and click Next>>. 4) Start recording either by clicking Start on the Status Control module’s web page (4b)

  • Page 10: Installing A Lan-Xi Notar License

    Installing a LAN-XI Notar License Installing a License 1) Insert the CD-ROM or connect the USB Memory Stick that came as part of the BZ-7848-A package. 2) Open the license.txt file in any word processing or text editor and copy the text string. 3) Connect to the module’s home page and click Recorder in the menu to enter the recorder.

  • Page 11: Using Power Over Ethernet (Poe)

    Using Power over Ethernet (PoE) LAN-XI modules can receive power over their ethernet cables from PoE switches, such as UA-0265, 10-port Gigabit Managed Switch with PTP and PoE (8 ports), ® or from PoE injectors, such as the ZyXEL PoE-12 Power over Ethernet injector shown.
  • Page 12 HEADQUARTERS: Brüel & Kjær Sound & Vibration Measurement A/S DK-2850 Nærum · Denmark Telephone: +45 7741 2000 · Fax: +45 4580 1405 · www.bksv.com · info@bksv.com Local representatives and service organisations worldwide...
