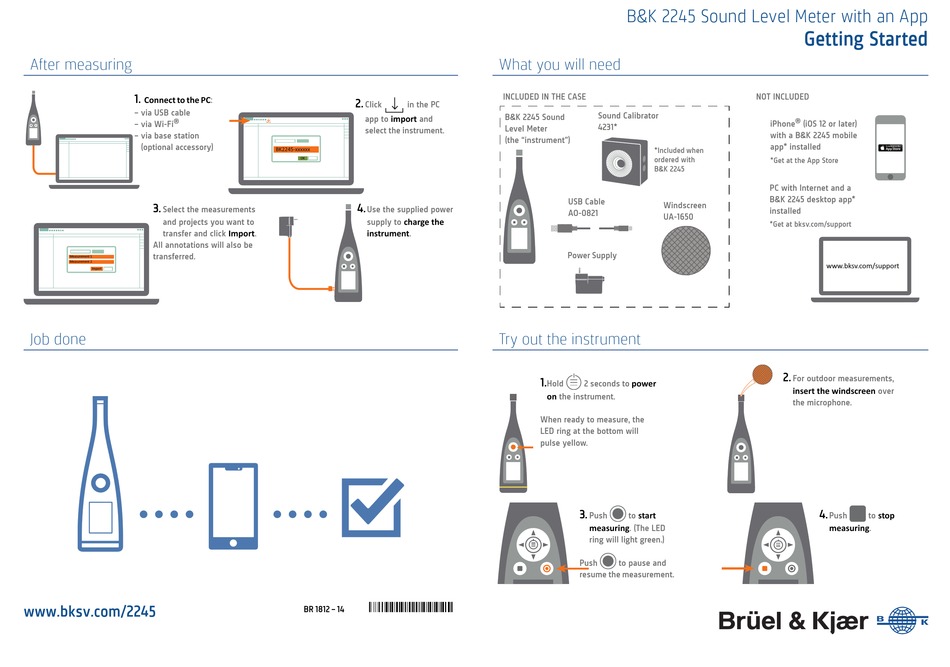

BRUEL & KJAER B&K 2245 Getting Started

After measuring
1.
Connect to the PC:
– via USB cable
®
– via Wi-Fi
– via base station
(optional accessory)
3.
Select the measurements
and projects you want to
transfer and click Import.
All annotations will also be
transferred.
Measurement 1
Measurement 2
Import
Job done
www.bksv.com/2245
2.
Click in the PC
import
app to and
select the instrument.
BK2245-xxxxxx
OK
4.
Use the supplied power
charge the
supply to
instrument.
ËBR-1812----Î
BR 1812 – 14

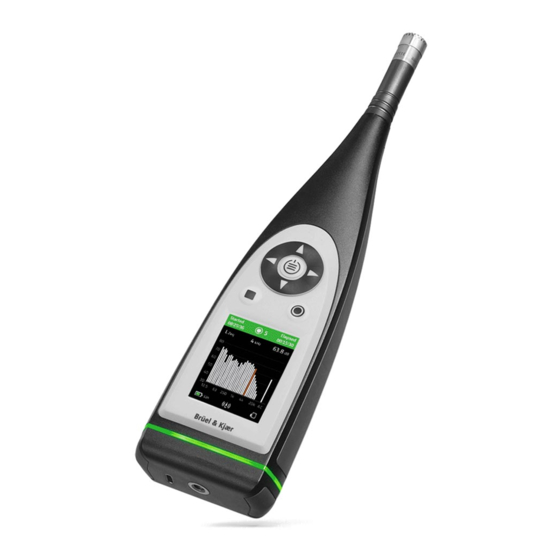

B&K 2245 Sound Level Meter with an App
What you will need
INCLUDED IN THE CASE
Sound Calibrator
B&K 2245 Sound
4231*
Level Meter
(the "instrument")
*Included when
ordered with
B&K 2245
USB Cable
Windscreen
AO-0821
UA-1650
Power Supply
Try out the instrument
1.
Hold 2 seconds to power
on the instrument.
When ready to measure, the
LED ring at the bottom will
pulse yellow.
3.
start
Push to
measuring. (The LED
ring will light green.)
Push to pause and
resume the measurement.
Getting Started
NOT INCLUDED
®
iPhone (iOS 12 or later)
with a B&K 2245 mobile
app* installed
*Get at the App Store
PC with Internet and a
B&K 2245 desktop app*
installed
*Get at bksv.com/support
www.bksv.com/support
2.
For outdoor measurements,
insert the windscreen
over
the microphone.
4.
stop
Push to
measuring.
