Network Check - LevelOne WBR-6001 User Manual

Network Check

1. Please make sure your PC can get IP address automatically so the WBR-6001 can communicate
with your PC during configuration.
•
Select "Control Panel" > "Network Connections".
•
Right click the "Local Area Connection" and choose "Properties".
•
Select the TCP/IP protocol for your network card.
•

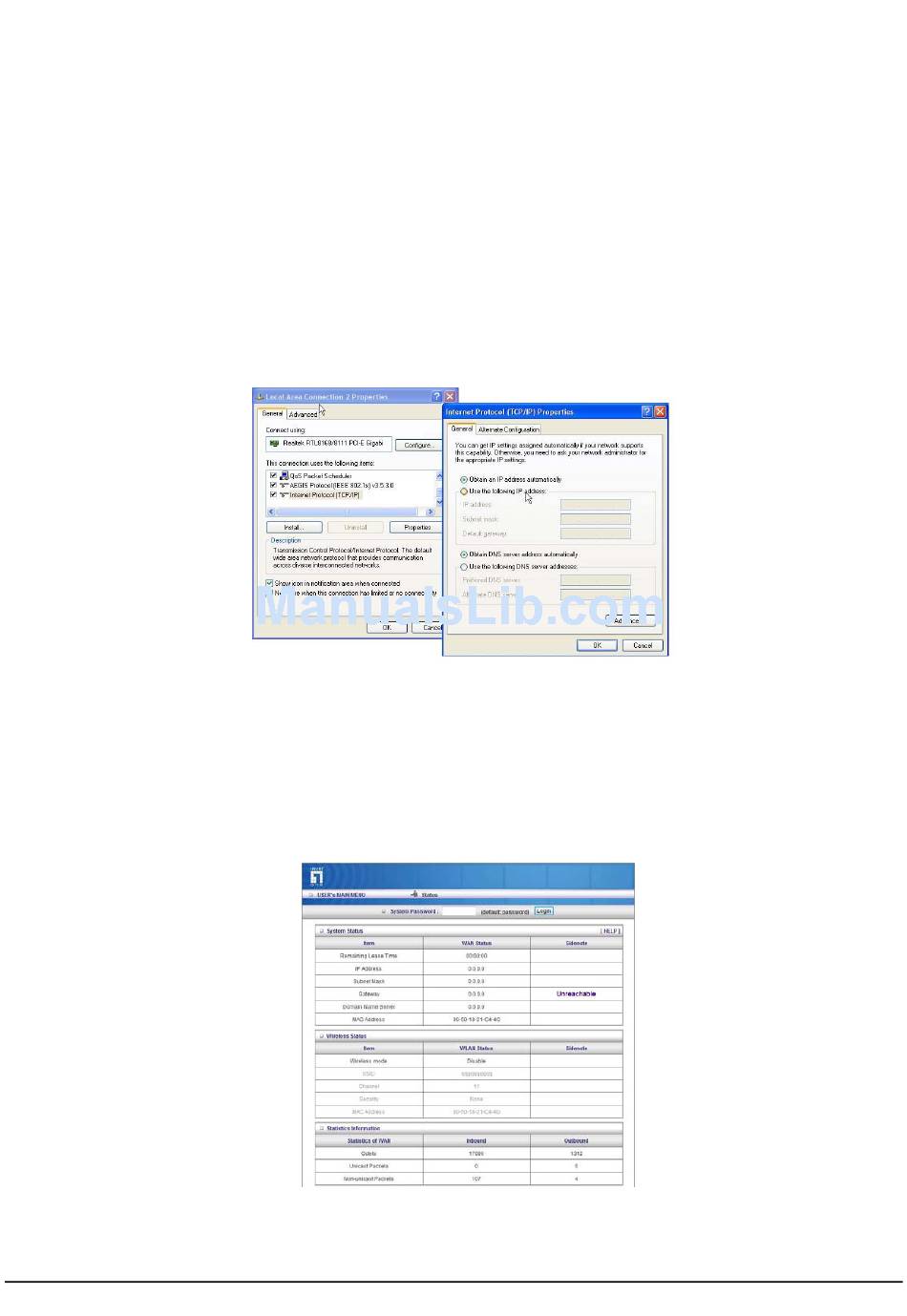

Click on the Properties button. You should then see the following screen and make sure you
have selected "Obtain IP address automatically"
2. Reboot computer to make sure you have received the IP address correctly.
3. Start your Web browser. In the Address box, enter WBR-6001's default IP Address:
4. When prompted, use the following default password to login.
http://192.168.0.1
8
Password: password
