Instructions
GH833 Direct
Immersion Kit
Part No. 287843
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
Refer to GH833 operation manual. Before attempting
to install kit, follow Pressure Relief Procedure,
page 4.
311279
311283
311484
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2006, Graco Inc. is registered to I.S. EN ISO 9001
- For installation of tower/bracket. -
311493A

Advertisement

Table of Contents
loading

Related Manuals for Graco GH833

Summary of Contents for Graco GH833

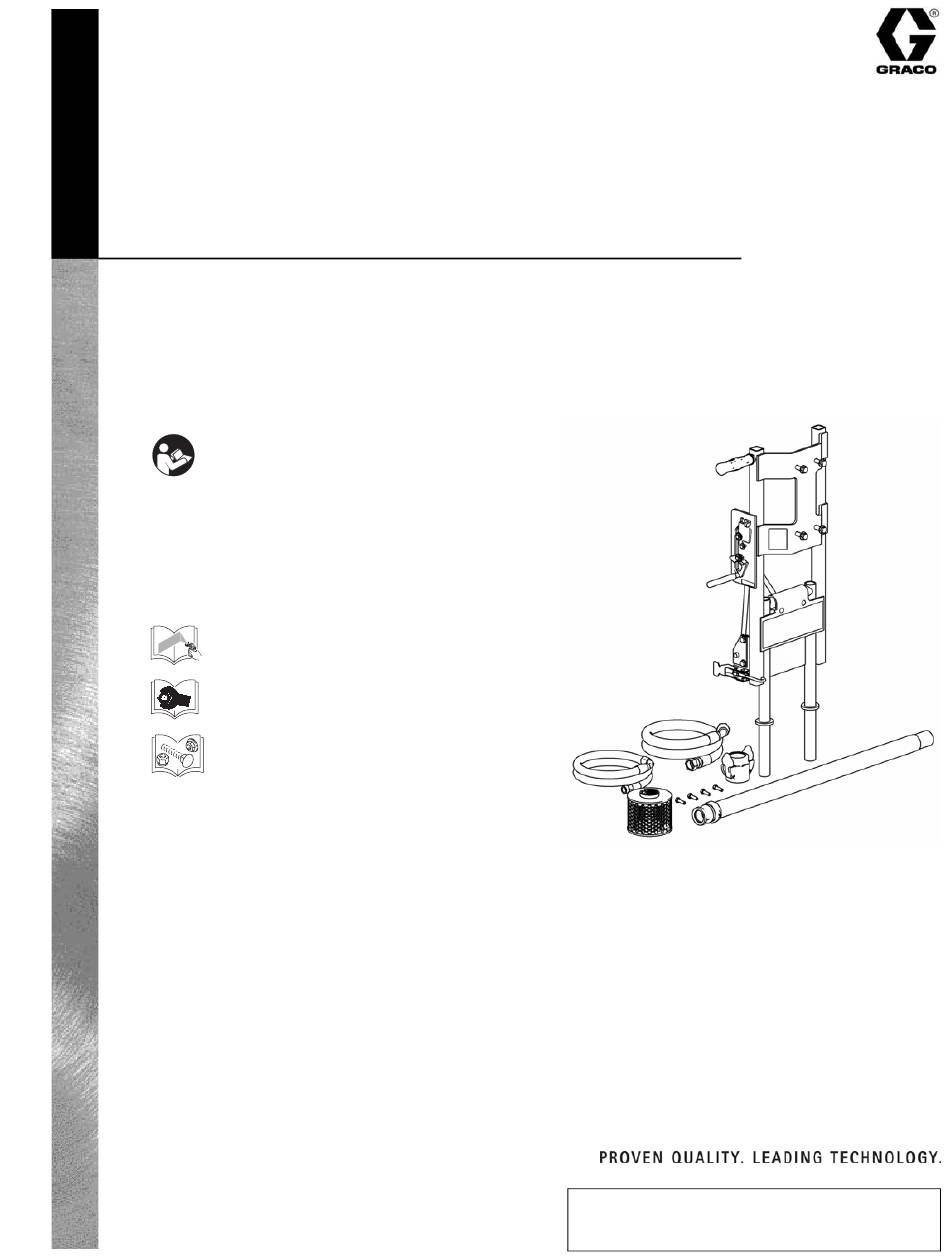

  • Page 1 Save these instructions. Refer to GH833 operation manual. Before attempting to install kit, follow Pressure Relief Procedure, page 4. 311279 311283 311484 Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441 Copyright 2006, Graco Inc. is registered to I.S. EN ISO 9001...

  • Page 2: Fixed Mounting (Optional)

    Fixed Mounting (optional) To prevent damaging the unit when transporting it in 4. Insert plugs in upper frame handle tubes. a truck or on a trailer, Graco recommends fixed mounting to the vehicle. upper frame handle tubes Repositioning Handle Before you can secure the unit to a truck or trailer bed, you must reposition the handle.

  • Page 3: Securing Unit To Vehicle Bed

    Securing Unit to Vehicle Bed For fixed mounting, fasten U-bolts over sprayer frame as 1. Reposition handle, steps 1-5, page 2. indicated in the following illustration. 2. Place U-bolts over sprayer frame and through holes in vehicle bed. Place a washer and nut over bolt end.

  • Page 4: General Information

    General Information Pressure Relief Procedure Trigger Lock Always engage the trigger lock when you stop spraying to prevent the gun from being accidentally triggered by hand or if dropped or bumped. 1. Engage trigger lock. 2. Set pump valve OFF. 3.
  • Page 5 Removing Hydraulic Head and Pump 5. Remove (4) mounting bolts on pump assembly and set assembly out of the way. BURN HAZARD pump Equipment surfaces and fluid that’s heated can assembly become very hot during operation. To avoid severe burns, do not touch hot fluid or equipment. Wait until equipment/fluid has cooled completely.
  • Page 6 Installing Direct Immersion Kit 4. Torque bolts to 400 +/- 10 in-lbs (33.3 ft. lbs). 1. Install tower/bracket into frame holes. tower bracket frame 5. Install new, longer hydraulic lines (19, 20) from kit. holes Pumping motion could result in bracket pulling out of frame and cause serious injury.
  • Page 7 Using Direct Immersion 3. Position 55 gallon drum under pump assembly. MOVING PARTS HAZARD pump Moving parts can pinch or amputate fingers and other assembly body parts. • Keep clear of moving parts. • Do not operate equipment with protective guards or covers removed.
  • Page 8 9. Lock tower/bracket in place. 7. Instal intake tube (24). Lock camlocks (22) to hold tube securely in place. 10. Ready to use. 8. Lower tube into 55 gallon drum. Changing Drums 1. Tilt tower/bracket back and clamp securely in first position.
  • Page 9 5. Lower tube into 55 gallon drum. 3. Move unit and align new drum under pump assembly. 6. Lock tower/bracket in place. pump assembly drum 7. Ready to use. 4. Install intake tube (24). Lock camlocks (22) to hold tube securely in place. 311493A...

  • Page 10: Transporting Unit

    Transporting Unit 3. Lock in place. CAUTION Do not transport unit with head in vertical position. When transporting unit securely tie down in vehicle or follow instructions for fixed mounting to vehicle, page 1. Unlock tower/bracket. 2nd position 2. Tip tower/bracket back 90° to 2nd position for transporting.
  • Page 11 Parts Parts Part No. Description Part No. Description 113796 SCREW, flanged, hex hd 287897 SUPPORT, frame 114251 SCREW, cap, hex hd 287896 FRAME, 55 gallon lift 15H265 HOSE, coupled 188622 SPACER 15H268 HOSE, coupled 116630 SCREW 120307 FITTING, hose adapter 102040 NUT, lock, hex 120308 FITTING, hose adapter 15H478 PLATE, retainer...
  • Page 12 Parts 9 10 All written and visual data contained in this document reflects the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice. MM 311493 Graco Headquarters: Minneapolis International Offices: Belgium, China, Japan, Korea GRACO INC.
