Operation, Parts

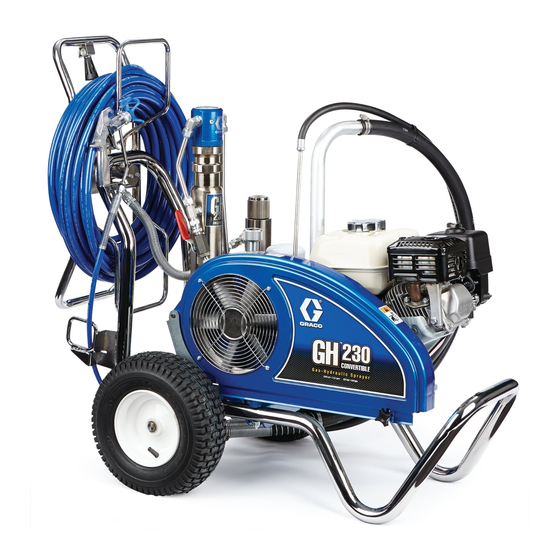

DH230/GH
™
Hydraulic Sprayers
For professional use only.
Not approved for use in explosive atmosphere or hazardous locations.
For portable airless spraying of architectural paints and coatings.
3300 psi (22.8 MPa, 228 bar) Maximum Working Pressure
See page 3 for model information, including maximum working pressure and approvals.

Important Safety Instructions

Read all warnings and instructions in this manual and in related manuals.
Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
311861
GH130/200 Gun
311254
DH230/GH230/300 Gun
\
Standard Series
Use only genuine Graco replacement parts.
The use of non-Graco replacement parts may void warranty.
130/200/230/300
Related Manuals:
ti25097a
334654
Pump
310812
Electric Motor
ProContractor Series
334558D
EN
ti25104a
