How to set up two GSW-2473 with two VLANs and a Gateway?

Scenario:
A GSW-2473 with port 1 – 10 & B GSW-2473 with port 1 – 10 VLAN 1
A GSW-2473 with port 9 – 26 & B GSW-2473 with port 9 – 26 VLAN 2
A & B GSW-2473 port 9 for interconnecting together.
Port 10: Connect to Internet
VLAN 1 members will be able to communicate on both GSW-2473 A&B
VLAN 2 members will be able to communicate on both GSW-2473 A&B
VLAN 1 &2 will be able to get on internet
Test Environment :
Switch 1 IP: 192.168.0.73
Switch 2 IP: 192.168.0.173
Please refer to set up procedure below:

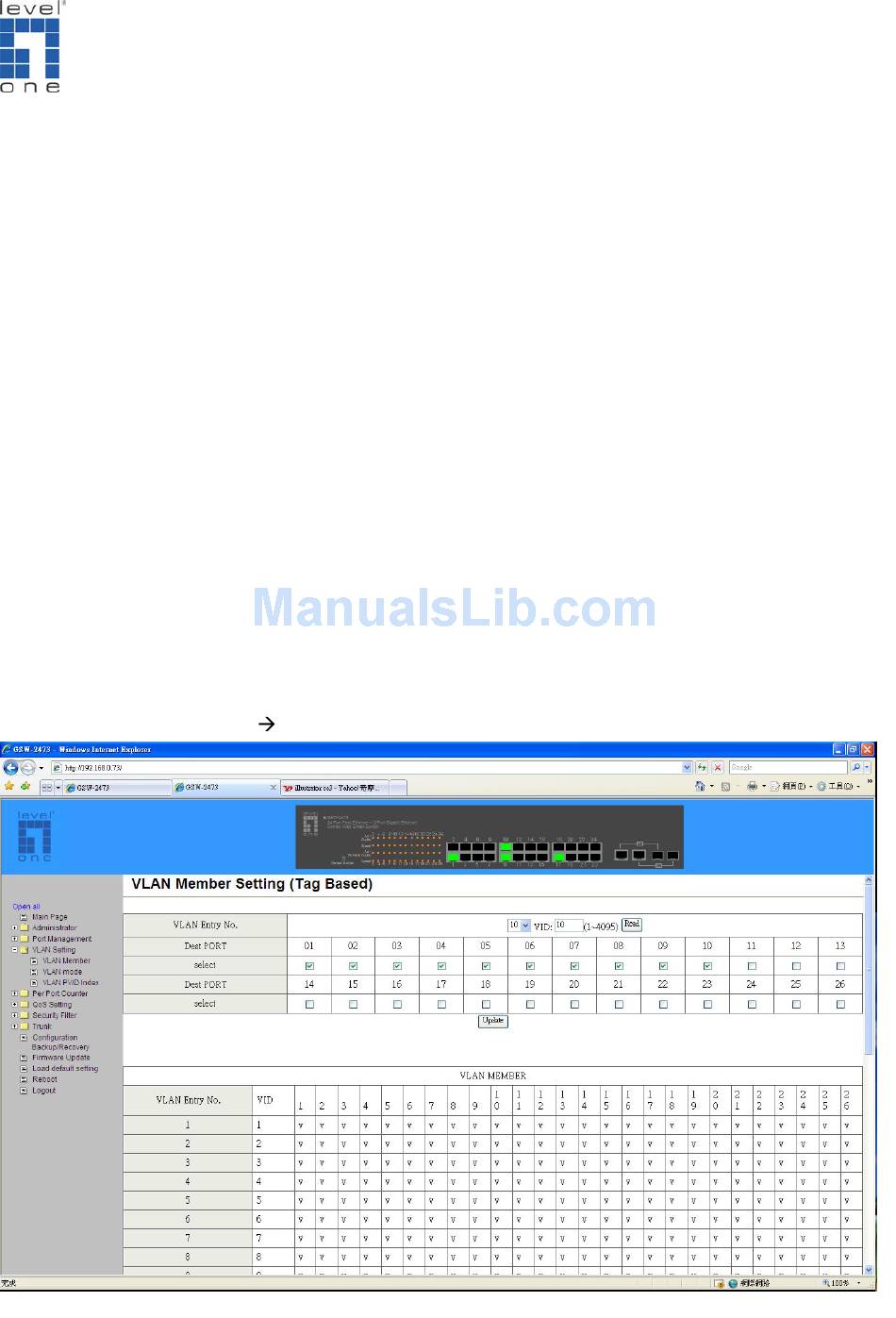

1. Switch A VLAN Member

Port 1~10 -> vlan 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSW-2473 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LevelOne GSW-2473

  • Page 1 How to set up two GSW-2473 with two VLANs and a Gateway? Scenario: A GSW-2473 with port 1 – 10 & B GSW-2473 with port 1 – 10 VLAN 1 A GSW-2473 with port 9 – 26 & B GSW-2473 with port 9 – 26 VLAN 2 A &...
  • Page 2 2. Switch A VLAN Member Port 9~26 -> vlan 2 3. Switch A VLAN mode set up Port 9 to uplink.
  • Page 3 4. Switch A VLAN PVID: Port 1~8 PVID 10 / Port 4. Switch B VLAN Member 6. Switch B VLAN Member 10 PVID 30 Port 1~10 -> vlan 1 Port 9~26 -> vlan 2 / Port 9 + 11~26 PVID 20.
  • Page 4 7. Switch B VLAN mode set up Port 9 to uplink. 8. Switch B VLAN mode Port 1~8 PVID 10 / Port 9~16 PVID 20.
