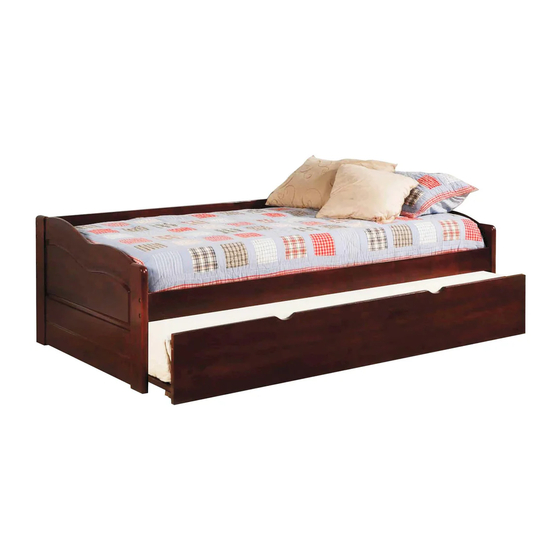

Furniture of America Sunset GF0737 Assembly Instruction

HARDWARE LIST:

A B
Allen Key (M4) = 1pc Bolt (M6 x 80mm) = 12pcs
F G
Nut = 12pcs Dowel (M12 x 50mm) = 6pcs

ITEM PARTS LIST:

1
Side Wall Panel ( Right ) = 1pc
5
Lower Front Panel = 1pc

STEP #1: ASSEMBLY UPPER BED

3 & 4
G
1 & 2 4
B
A
Connect the upper bed & horizontal rails (3 & 4) with
side wall left & right together. Then using 2 (M6 x 80
mm) bolts and tighten on each rails end. Nut (F) may
need to be adjusted with a screw driver.
GF0737 DAYBED
ASSEMBLY INSTRUCTION
C
Bolt (M6 x 30mm) = 8pcs
H
2
Side Wall Panel ( Left ) = 1pc
6
Lower Back Rail = 1pc
Before assembling the two upper bed & horizontal rails,
insert a (M12 x 40mm) dowel into the center hole of each
joint.
F
I(-)
UPPER BED
D
Wood Screw (16mm) = 12pcs
I
Castor = 6pcs
3
Upper Bed Rails = 2pcs
7
Lower Side Attached Rails = 2pcs
I(+)
E
8
E
Wood Screw (30mm) = 48pcs
Screw Driver (+/-)
Not Available
4
Upper Horizontal Rail = 1pc
8
Upper & Lower Bed Slats = 24pcs
3 Attach the bed slats to the slots using 1 (30mm)
screw on each end.
