APW5173
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For lastest product information, please visit Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA91710
© Copyright 2015 Acnodes Corp.

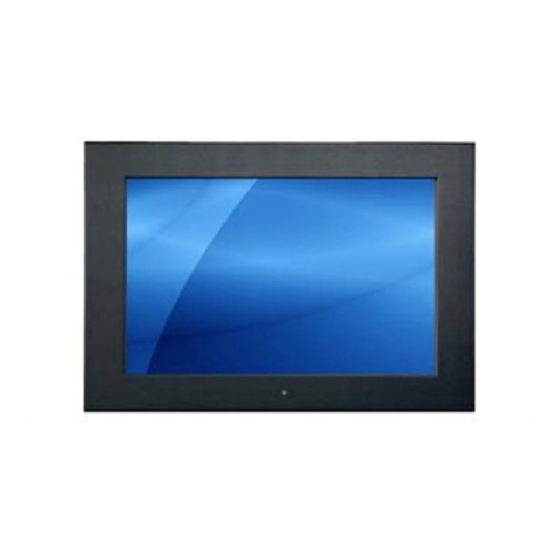

17.3" 1920 x 1080 Widescreen LCD
A l u m i n u m F r o n t B e z e l
P a n e l / V E S A M o u n t R e a d y
A
P
W
5
1
7
3
I
n
d
u
s
t
r
i
a
l
P
a
n
e
l
M
o
u
n
t
M
o
n
i
t
o
r
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Acnodes APW5173
Summary of Contents for Acnodes APW5173
-
Page 1: User Manual
P a n e l / V E S A M o u n t R e a d y User Manual All rights reserved. Product description and product specifications are subject to change without notice. For lastest product information, please visit Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA91710 Tel: 909.597.7588 Fax: 909.597.1939... - Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > APW5173 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 < Part. 3 > Specifications / OSD / Remote Controller P.6 - 7 Product Specifications P.8 - 9 On-screen Display Operation ( OSD ) P.10 - 11... -
Page 4: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 5: Part. 1 > Apw5173
< Part 1 > < 1.1 > Package Content APW5173 17” FHD LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs... -
Page 6: Structure Diagram & Dimension
(W x D x H) Weight Weight 468.5 x 57.1 x 331 mm 615 x 113 x 523 mm 5.2 kg 8 kg APW5173 18.4 x 2.2 x 13 inch 24.2 x 4.4 x 20.6 inch 11.4 lbs 17.6 lbs... - Page 7 < 1.2 > Dimension Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View...
-
Page 8: Mounting Hardware & Installation
< 1.3 > Panel Mount Installation M4*6mm screw M4*50mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■ Adjust the LCD panel with 8 x M4*50mm screws and fix it on the surface. - Page 9 < 1.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided...
-
Page 10: Product Specifications
< Part 2 > < 2.1 > Product Specifications Mechanical APW5173 Design Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA Mounting 100 x 100mm Other Mounting Panel mount Protection 3mm protective glass Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD... - Page 11 Regulatory Safety FCC & CE certified Environmental RoHS2 & REACH compliant Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 468.5 x 57.1 x 331 mm...
-
Page 12: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 13 < 2.2 > On-screen Display Operation ( OSD ) Audio Audio mode : Movie / Voice / Normal / Music mode to choose Volume : Adjust the volume of sound Bass : Set the value of bass sound Treble : Set the value of treble sound Balance : Set the balance value of treble and bass sound...
-
Page 14: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 15 < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080 955 x 716...
-
Page 16: Part. 4 > Options
< Part 3 > Options < 3.1 > Option Table Options SDI *** S-Video * + Composite ( BNC ) Audio Touchscreen MCS multi-display control DC Power MIL-type / lockable connector TV ( Analog ) * About SDI The AD board comes standard with HDMI, DVI-D, VGA, S-Video, BNC, audio inputs and RC-1 remote controller. - Page 17 < 3.2 > Options : 3G / HD / SD-SDI input Acnodes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Acnodes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
- Page 18 < 3.3 > Options : MCS More control is always good. Especially when it is necessary and easy. Acnodes provides MCS solution to control the OSD of ( Multi-display Control ) various LCD display up to 64 units. The RS-232C is used for the communication between the PC and...
-
Page 19: Av3.0 Upgrade : S-Video + Bnc & Audio
< 3.4 > AV3.0 Upgrade Options : - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) Audio Power BNC S-Video DVI-D HDMI out - in - in Video PC AV3.0 upgrade option comes with RC-1 remote controller x 1, please refer to P.17... - Page 20 How to Use RC-1 Remote Controller POWER Switches on or off the TV MUTE Turn on or off the speaker Switch to AV mode Select channels. For channel numbers 10 and above, 0- 9 enter the second digit within two seconds. V + / - Increase or decrease the speaker volume CH + / -...
-
Page 21: Resistive ( Single Point Touch )
< 3.5 > Options : Touchscreen & driver F17" USB Touchscreen Specification Model e-Resistive Technology 5-Wire Resistive Single Touch Point Input Type Finger or Stylus Resolution 2048 x 2048 Touch Point Accuracy Response Speed 15 ms ≤ 50 g Activation Force Surface Hardness Light Transmission 80% ±... - Page 22 < 3.5 > Options : Touchscreen & driver TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to finish the setup Step 4.
- Page 23 < 3.7 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - DTL - 26482 MIL - type MS3470W8-33P DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with most design flexibility possible.
-
Page 24: Tv ( Analog )
< 3.8 > Options : TV ( Analog ) Audio Power BNC S-Video HDMI out - in - in Video PC For TV option : ( 1 ) The AD board comes standard with HDMI, VGA, S-Video, BNC, audio inputs and RC-2 remote controller. - Page 25 How to Use RC-2 Remote Controller INPUT MUTE -/-- AUTO FREEZE MENU SELECT ASPECT SLEEP ENTER BACK EXIT POSITION SWAP SOURCE AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
