Matchmaster DigiMATCH 03MM-DR3004 Installation Instructions

03MM-DR3004
VHF Ch (6-12) TV Antenna Installation Instructions

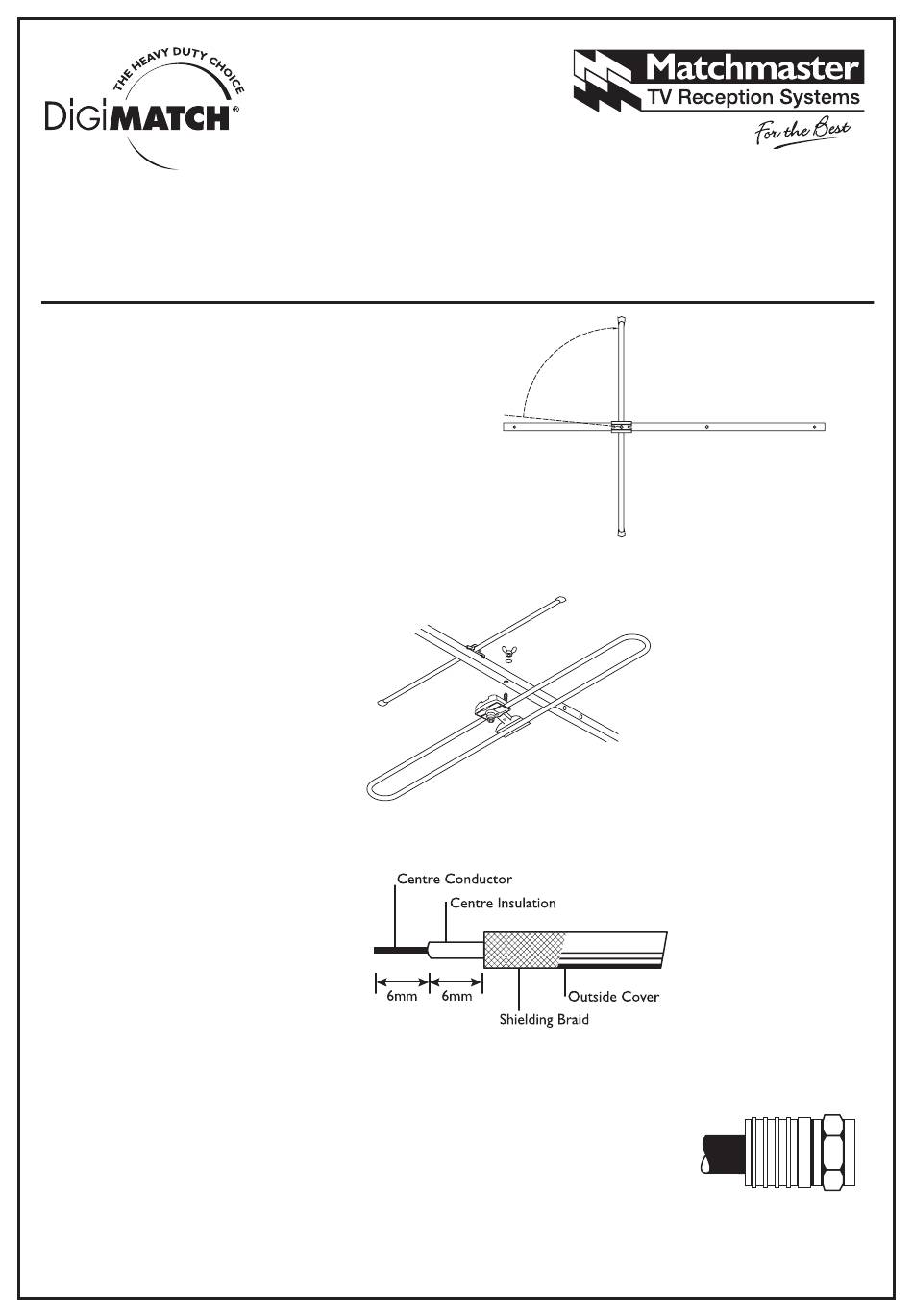

Step 1
Take the antenna boom out of the carton.
Swivel all elements 90 degrees to the boom
from the packed position till they 'snap lock'.
Step 2
Attach long loose element (900mm)
to boom using the hole at the end of
the boom behind the dipole.
Then attach the short loose element
(530mm) onto the other end of the
antenna boom.
Step 3
Strip coax cable as shown in diagram.
Step 4
Select connector provided. (Suitable for RG6 or semi airspaced cable)
Place "F" connector on back to front and twist to ensure
that all braid is flat. See diagram.
(For other cable types you will need to purchase the corresponding connector)
DR3004 1-15
