Matchmaster DigiMATCH 03MM-DR3006P Installation Instructions

03MM-DR3006P
VHF Ch (6-12) TV Antenna Installation Instructions

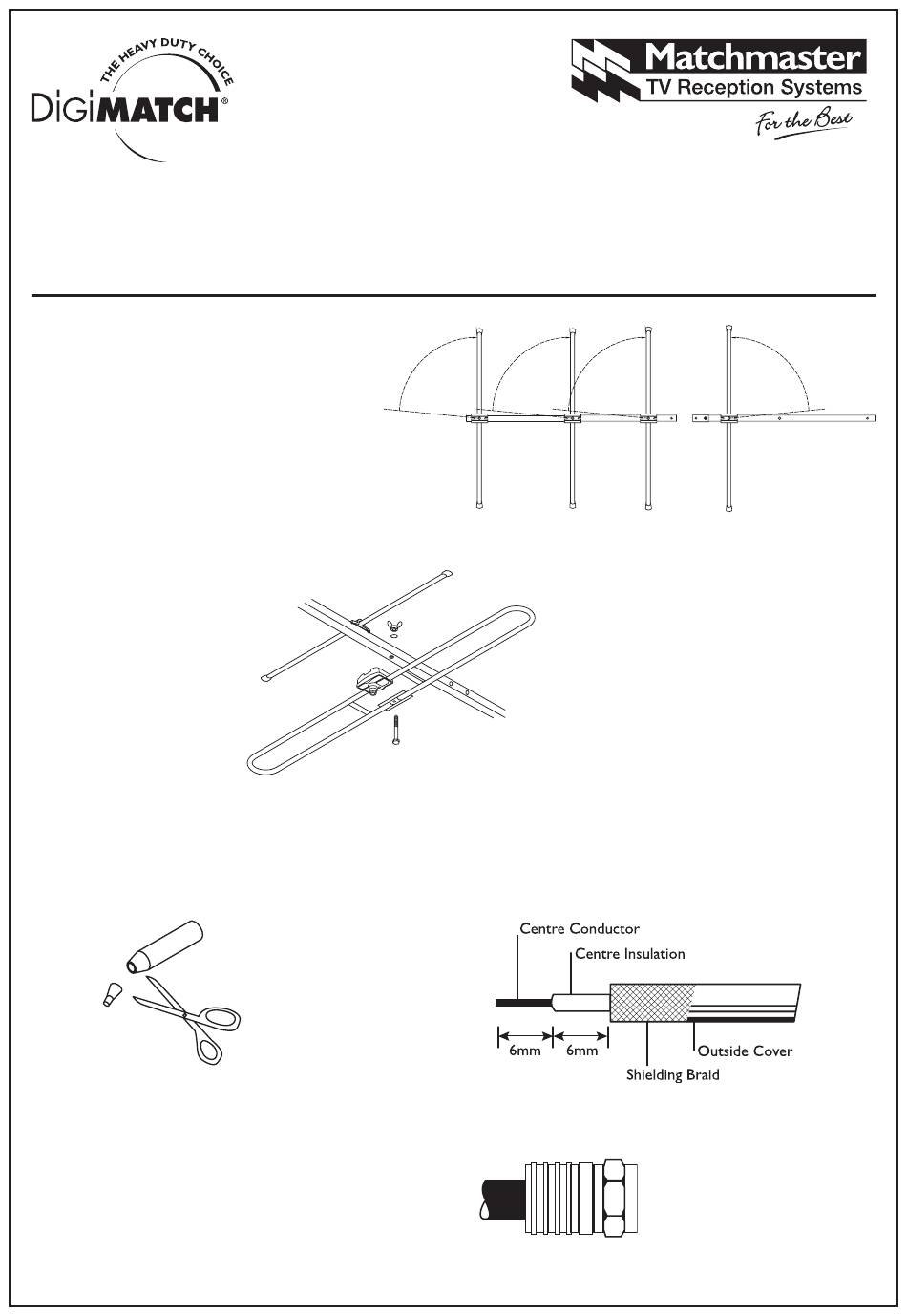

Step 1
Take both halves of the antenna out of the
carton. Swivel all attached single elements
90 degrees to the boom from the packed
position till they 'snap lock'. See diagram.
Step 2
The curved dipole needs to be
attached to the underside of the
boom at 90 degrees.
Step 4
Cut the rubber boot seal provided and slide onto
stripped cable as in diagram.
Step 6
Select connector provided.
(Suitable for RG6 or semi airspaced cable)
Place "F" connector on back to front and twist to
ensure that all braid is flat. See diagram.
(For other cable types you will need to purchase
the corresponding connector)
Step 5
Strip coax cable as shown in diagram and feed through
rubber boot seal. See diagram.
