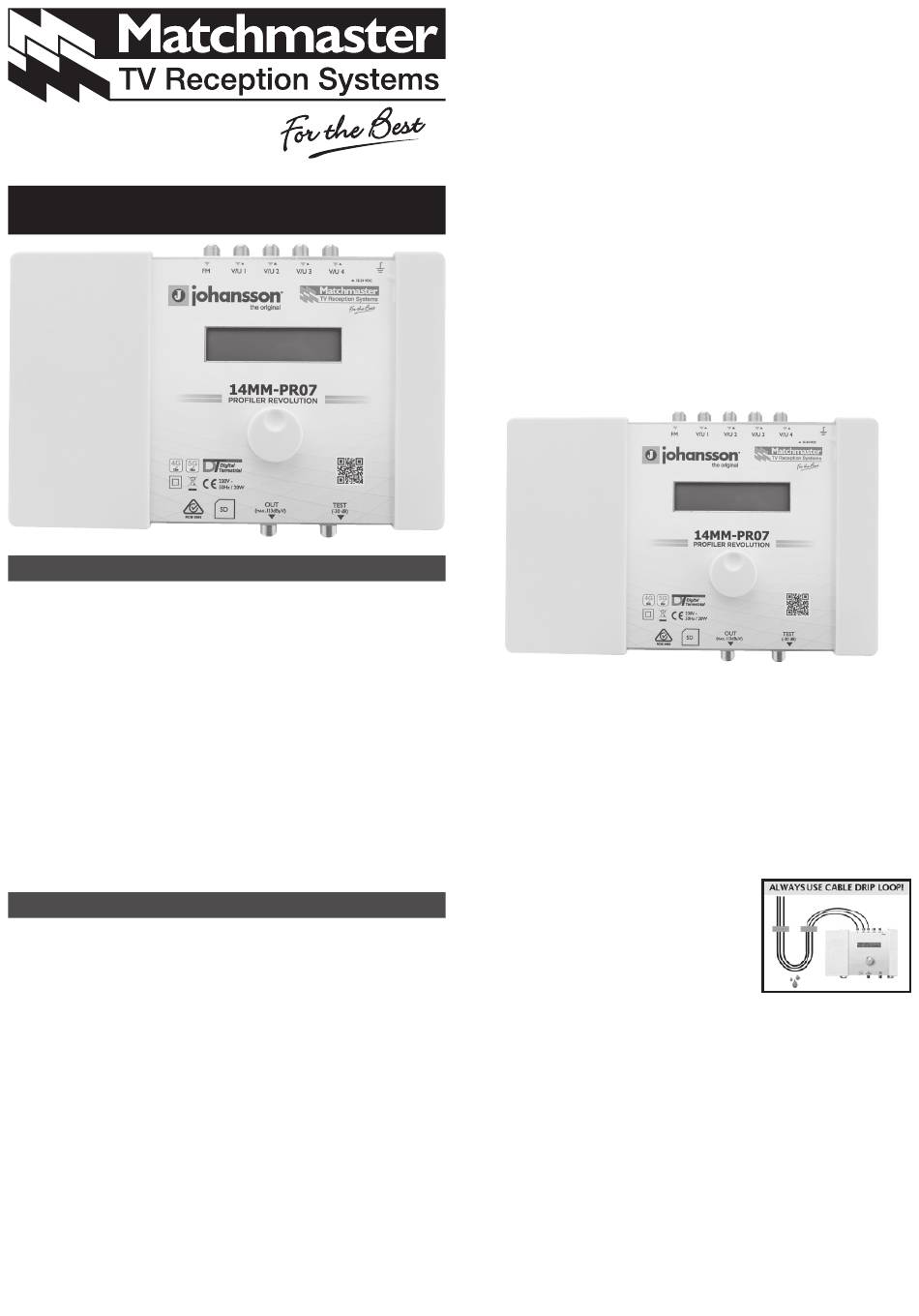

14MM-PR07
INSTRUCTION MANUAL

TABLE OF CONTENTS

No part of this manual may be copied, reproduced, transmitted, transcribed
or translated into any language without permission. Matchmaster reserves the
right to change the specifications of the hardware and software described
in these manuals at any time. Matchmaster cannot be held liable for any
damages resulting from the use of this product. Specifications are subject to
change without notice. 10/19

1. INTRODUCTION

1.1 Product description

The Johansson Profiler Revolution is an easy to use
programmable filter amplifier and converter for terrestrial
signals. The module optimizes terrestrial VHF/UHF and
FM signals from multiple inputs with the goal to provide
high quality images on your TV screen. The state-of-the-
art programmable filter amplifier has no equivalent on the
market due to its revolutionary technology:
• Can process more than 50 channels (32 filters)
• Can process S-Band output channels
• Can convert a wide selection of channels
• Sharpest filters on the market (>50dB on adjacent
channels)
• Real-time AGC on all individual filters
• Complete flexibility in assigning filters from any input.
Each channel can be frequency shifted to any other
channel in the VHF or UHF band (Flex Matrix)
• To avoid unauthorized persons changing the settings, all
Profiler products can be locked with a security code
AU SUPPORT 1800 237 425 WWW.MATCHMASTER.COM.AU
• Made in Europe, for worldwide application
• 5 inputs: FM / 4 x VHF-UHF / >50 channels
/ AGC / 12-24 V remote power
• Product dimensions (H X W X D): 165mm x 217mm x 59mm

1.2 Typical installation

The Profiler Revolution can be used to provide high quality
television images and FM signals in a wide range of projects,
both in the hospitality as in the residential market. Typical
buildings or infrastructures where the Profiler Revolution
can be used include, but are not limited to:
• Large and small hotels, hostels, bed and breakfasts,
holiday parks
• Hospitals, nursing homes, prisons, settlements
• Large and small multi-dwelling units

1.3 Package contents

• 1 Profiler Revolution (ref. 14MM-PR07)
• 1 Power Adapter Cord (180cm)

1.4 Hardware installation (217x165mm)

1
1
1
1
1
4
1
1. 5 inputs: 4 VHF/UHF and 1 FM
2
2. Grounding clamp
4
3. Use the popular Johansson button to navigate through
4
the menu
5
4. Power suppy socket
5
6. Status LED
7. SD card slot for configuration input/copy
8. Output signal
9. Test port to control the output signal quality

1.5 Mounting the Profiler Revolution

• Important: Mount the module
vertically to a wall in a well-
ventilated room and leave a
minimum space of 15 cm around
the product to guarantee maximum
ventilation of the product
• Connect an earth wire to the
grounding clamp
• Connect the power adapter cord to the power supply
socket. Check the status LED for the indication of DC
power presence
• Connect the VHF/UHF and/or FM inputs to the Profiler
Revolution
• Connect a coaxial cable to the output connector for
distribution of the signal
• Connect a network analyser to the test port to control the
signal quality
• Configure the Profiler Revolution using the rotary button,
see below
• Optionally: insert an SD card in the SD card slot to upload
the configurations of a previous module or to copy the
configuration to another module
|
NZ SUPPORT 0800 237 425 WWW.MATCHMASTER.CO.NZPAGE
1
3
5
6
7
8
9
2
|
1 OF 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the johansson 14MM-PR07 and is the answer not in the manual?

Questions and answers

Summary of Contents for Matchmaster johansson 14MM-PR07

  • Page 1 8. Output signal or translated into any language without permission. Matchmaster reserves the right to change the specifications of the hardware and software described 9. Test port to control the output signal quality in these manuals at any time. Matchmaster cannot be held liable for any damages resulting from the use of this product. Specifications are subject to 1.5 Mounting the Profiler Revolution change without notice. 10/19 • Important: Mount the module vertically to a wall in a well- 1.
  • Page 2 Push the rotary button for 2 seconds to access the menu. Some other examples: Input Settings To add CH5 and convert to CH6, select as follows: 5: 5 -> 6: 6 To add CH21-22-23 and convert to CH31-32-33, select as follows: 21: 23 -> 31:33 Tap the rotary button to enter the INPUT FM menu. Rotate the button to navigate through the submenu. PAGE 2 OF 6 AU SUPPORT 1800 237 425 WWW.MATCHMASTER.COM.AU NZ SUPPORT 0800 237 425 WWW.MATCHMASTER.CO.NZ...
  • Page 3 -750 kHz, which is an optimal setting in 95% of the Repeat the previous steps for all input channels. cases. Output Settings S-Band channels can be activated in Advanced Mode. By default, they are not activated. Define the OUTPUT LEVEL of the output signal. Range between 98dBµV and 118dBµV (default output level is See NOTE below for more explanation. 108dBµV). Check the output via a network analyser on the -30dB test port. Note: The more channels you select, the less input power you should give (e.g. 111dBµV for 10 channels). AU SUPPORT 1800 237 425 WWW.MATCHMASTER.COM.AU NZ SUPPORT 0800 237 425 WWW.MATCHMASTER.CO.NZPAGE 3 OF 6...
  • Page 4 * For 64QAM with code rate 3/4 To avoid unauthorized people changing the settings, all Profiler products can be locked with a security code. Select LOCK and SET LOCK CODE. When the lock code is set, the device will shut down. When you restart the device, you will now have to enter the correct lock code. Note: If you forgot the lock code, you can always use the value 50. This master code is fixed and cannot be changed. PAGE 4 OF 6 AU SUPPORT 1800 237 425 WWW.MATCHMASTER.COM.AU NZ SUPPORT 0800 237 425 WWW.MATCHMASTER.CO.NZ...
  • Page 5 See note below. If during this period of warranty the product proves defective, under normal use, due to defective materials or workmanship, Matchmaster, at its sole option, will repair or replace the product. Return the product to your local dealer for reparation. THE WARRANTY IS APPLIED ONLY FOR DEFECTS IN...
  • Page 6 PAGE 6 OF 6 AU SUPPORT 1800 237 425 WWW.MATCHMASTER.COM.AU NZ SUPPORT 0800 237 425 WWW.MATCHMASTER.CO.NZ...
