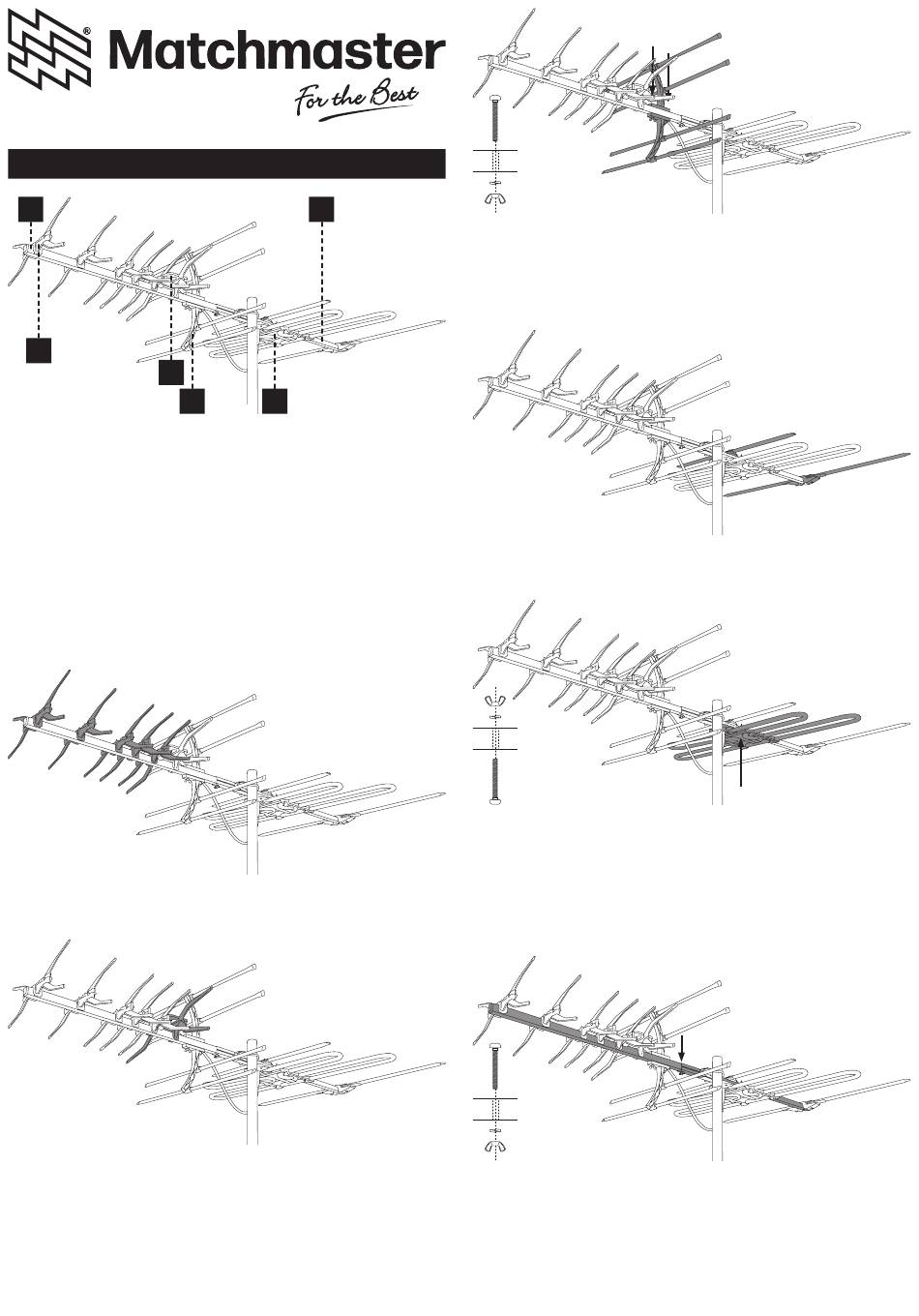

Matchmaster 01MM-DG27 Instruction Manual

01MM-DG27 INSTRUCTION MANUAL
A
C
D
A. 1x Front 609mm Boom
B. 1x Back 714mm Boom
with Joiner and
Mounting Bracket
C. 5x Snap On X Elements
D. 1x X Type Dipole Balun
E. 2x Corner Screens
F. 1x G-unit with Built-in
Balun
1x 1/4" x 1.25" Bolt
1x 1/4" x 18G Flat Washer
1x 1/4" Spring Washer
1) Snap on the five X type elements to the first five moulds
located on the front 609mm boom.
2) Click in the X type balun to the sixth mould located on
the front 609mm boom. Ensure the connection points on
the X type balun face the back of the antenna.
Page 1 of 2 | AU Support 1800 237 425 www.matchmaster.com.au
B
E F
1x 1/4" Wing Nut
1x 3/16" x 1.25" Philips Head
Bolt
2x 3/16" x 1.75" Philips Head
Bolt
3x 3/16" Spring Washer
3x 3/16" Wing Nut
1x Rubber Boot Seal
1x RG6 Twist on 'F' Type
Connector
1x 550mm 'F' Male to
'F' Male Interconnecting
Flylead
3) Install the two corner screens onto the top and
underbody of the front 609mm boom behind the X type
balun, using 3/16" x 1.75" Philips head bolts and two
pre-drilled holes. Make sure you install the spring washer
and wingnut on the underbody of the boom body.
4) Snap out the three riveted swivel lock elements on the
back 714mm boom.
5) Attach the G-unit to the back 714mm boom underbody
with the balun closer to the front of the antenna, lining up
the pre-drilled holes located on the G-unit and boom. Bolt
these two units together using the 1/4" bolt, flat washer,
spring washer and wingnut provided in the small plastic
bag. Ensure you install the flat washer, spring washer and
wingnut on top of the boom body.
6) Join the front 609mm boom to the back 714mm boom
using the 3/16" Philips head bolt, spring washer and wingnut
provided in the small plastic bag. Make sure you install the
spring washer and wingnut on the underbody of the boom
body.
NZ Support 0800 237 425 www.matchmaster.co.nz Modified 14 Jun 2024
