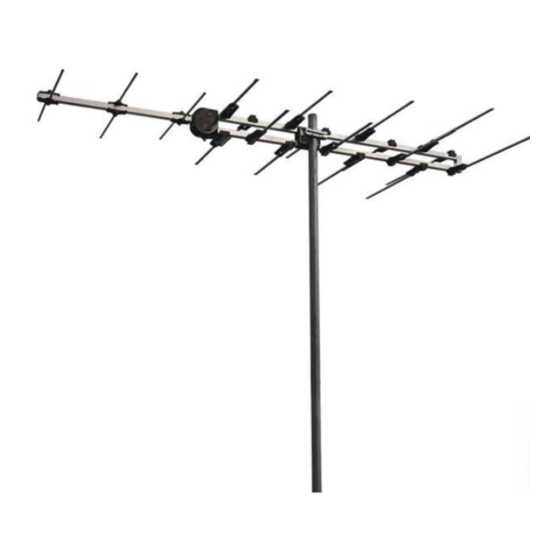

Matchmaster Digimatch 03MM-V8 Instructions

03MM-V8 and 03MM-V6
VHF Ch (6-12) 'F' Type Log Periodic Antenna Instructions

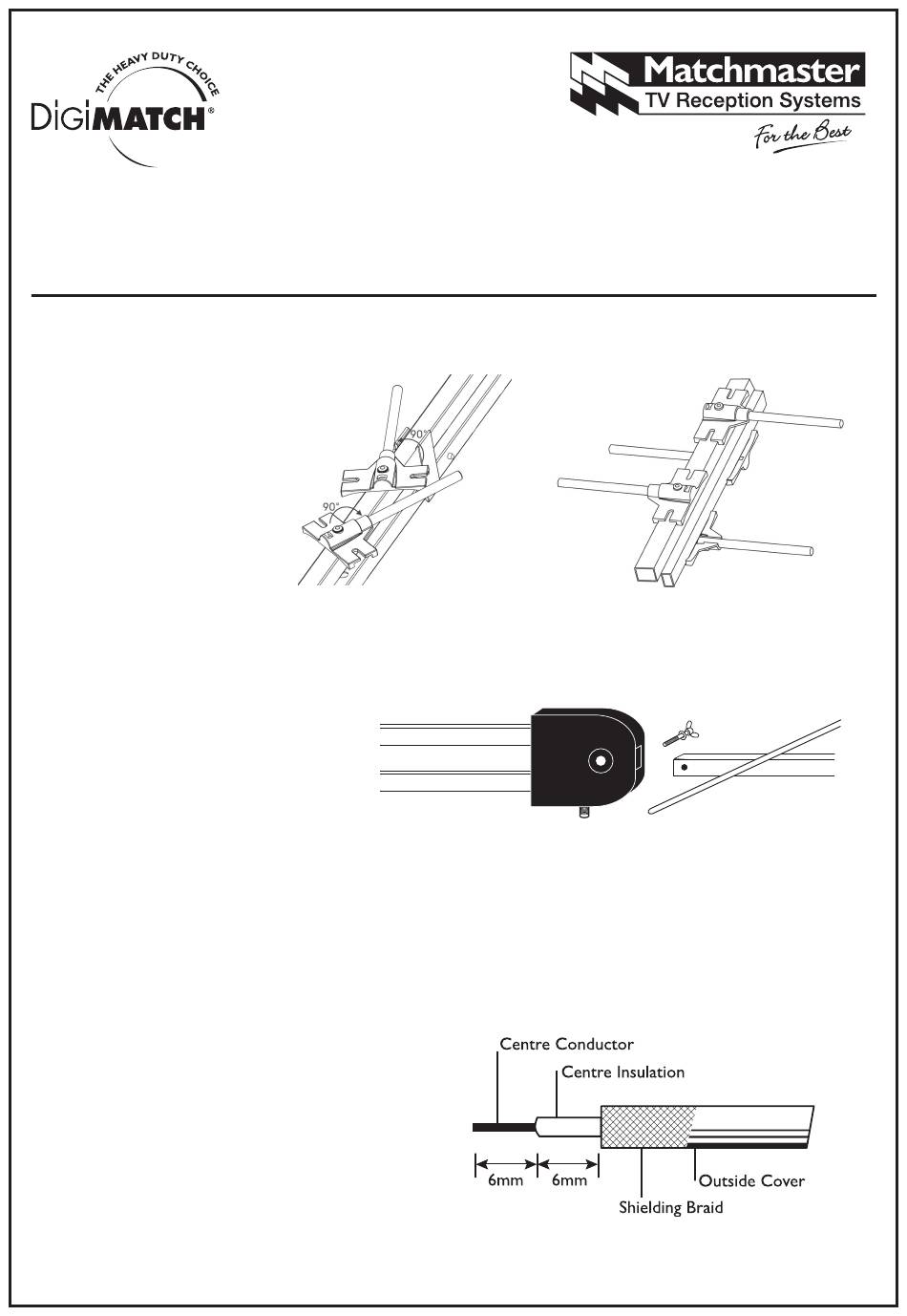

Step 1
Open elements on both booms and snap into place.
They will snap out at right angles to the boom.
Step 2
Join the two booms together.
Slide single piece boom into the square opening
in the black section holding the 'F' connection.
Ensure the 'F' connection is pointing downwards.
and the elements are on top of the single boom.
Step 3
Using the supplied twist on connector, prepare your
cable and attach connector.
Strip cable & pull braid and two layers of foil over black
jacket as illustrated. Leave bonded foil attached to
centre white piece, ensuring all braid strands are pulled
away from centre conductor.
