Matchmaster DigiMATCH 02MM-GX500 Quick Start Manual

02MM-GX500
UHF Ch (28-51) 18 Element TV Antenna with 4G Filter

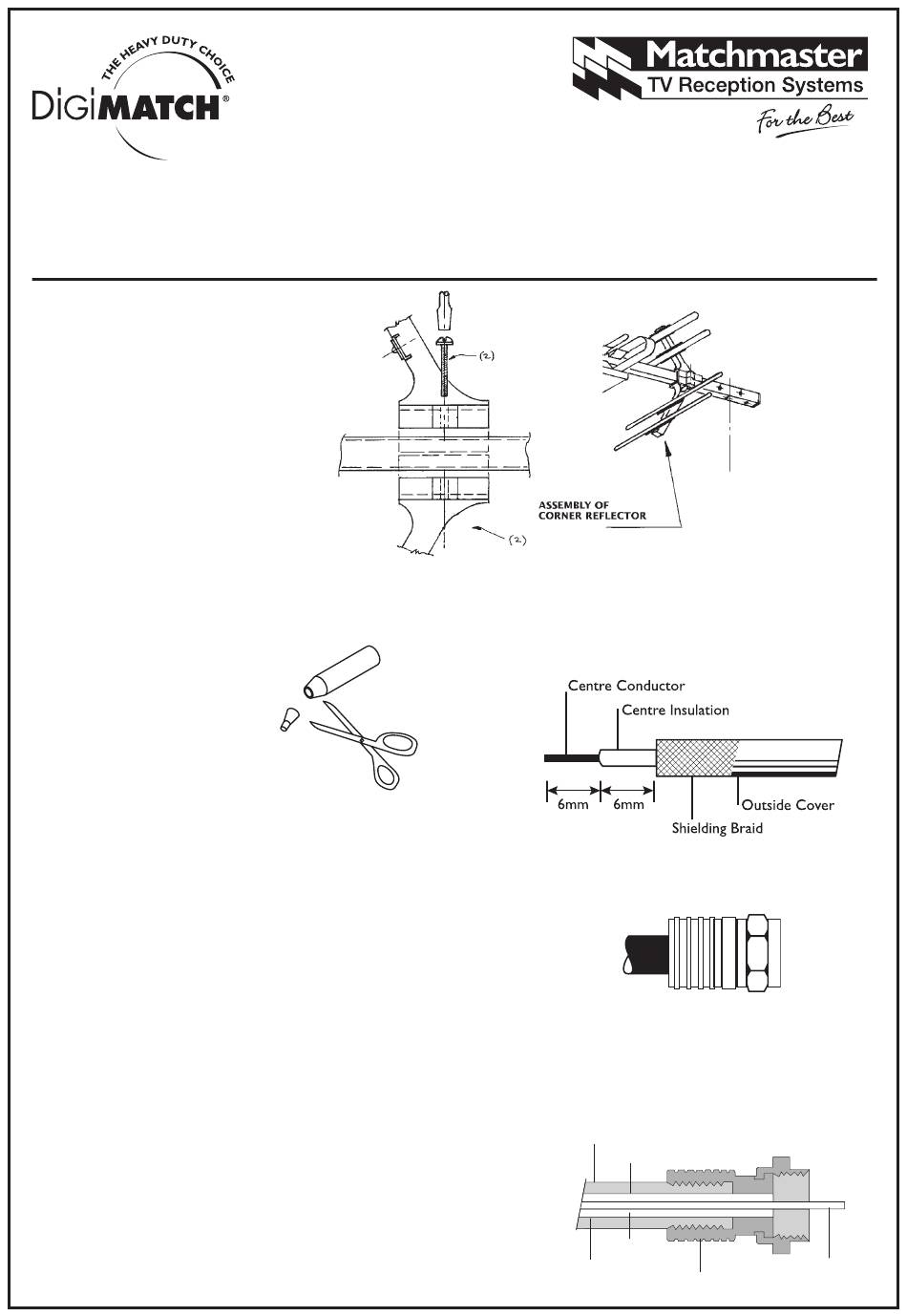

Step 1
Attach corner reflector to boom.
See diagram.
Step 2
Cut the rubber boot seal
provided and slide onto
stripped cable as in diagram.
Step 3
Select connector provided.
(Suitable for RG6 or semi airspaced cable)
Place "F" connector on back to front and twist to ensure
that all braid is flat. See diagram.
(For other cable types you will need to purchase the corresponding connector)
Step 4
Then insert cable into rear of connector and twist
connector clockwise until dielectric is flush with the bottom
nut as illustrated. Ensure that 2-3mm of centre core conductor
protrudes past the nut and that the braid makes contact
with the inner body of the connector.
Step 2A
Strip coax cable as shown in diagram
and feed through rubber boot seal.
Plastic Outer Case
Metal Braid
Dielectric
Metal Sheath
Knurled Surface
Core
Conductor
