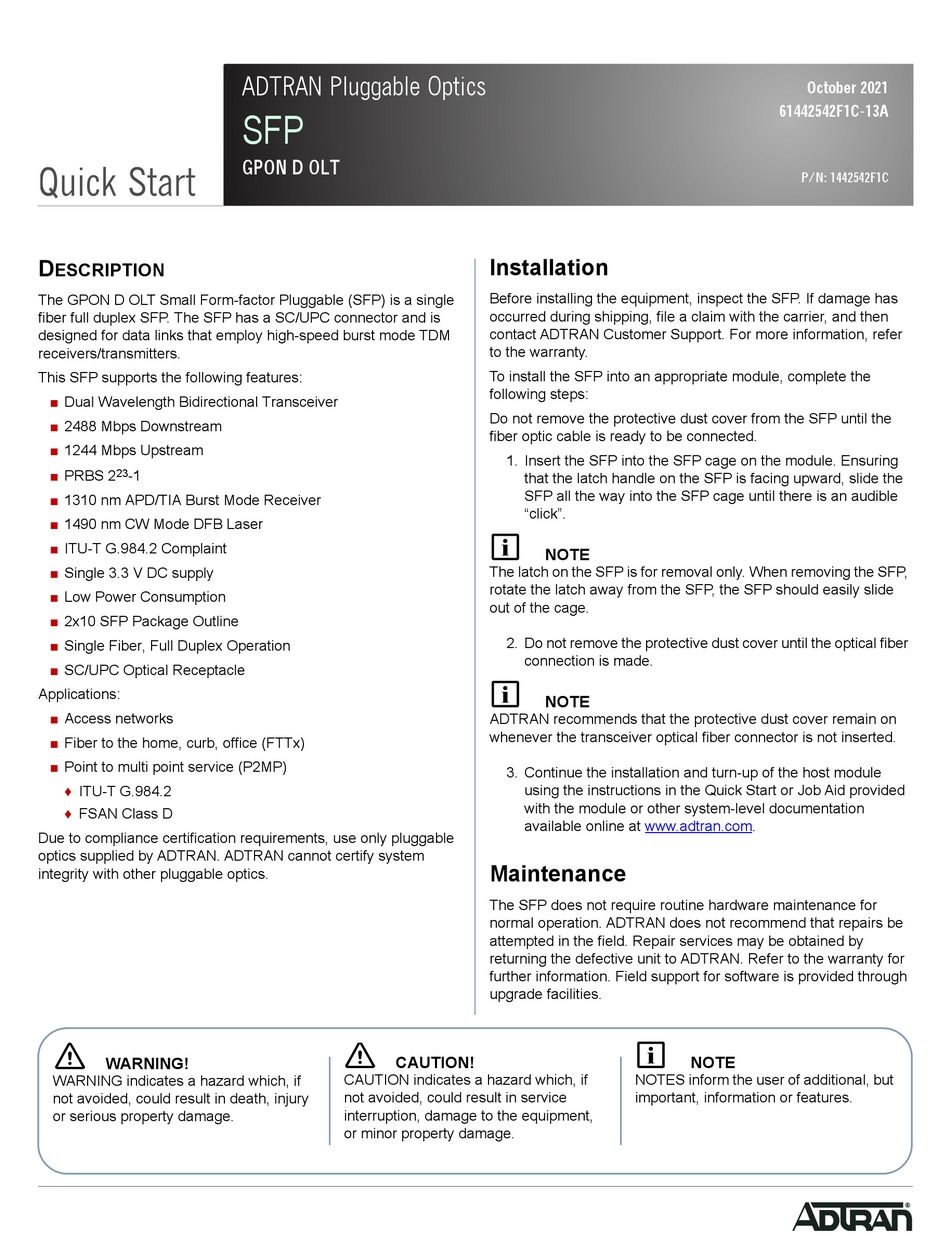

ADTRAN GPON D OLT Quick Start

Quick Start
D
ESCRIPTION

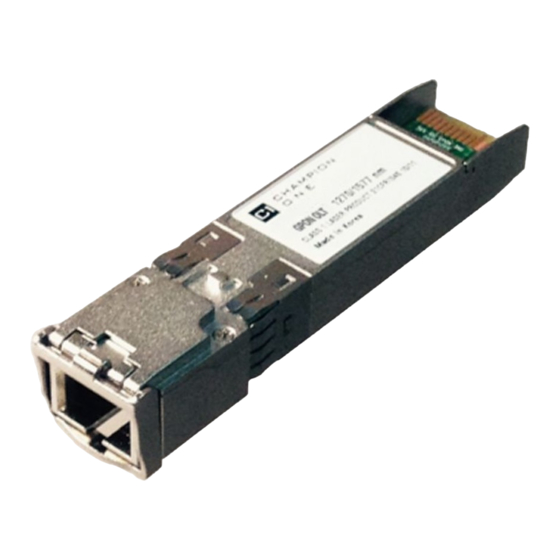

The GPON D OLT Small Form-factor Pluggable (SFP) is a single
fiber full duplex SFP. The SFP has a SC/UPC connector and is
designed for data links that employ high-speed burst mode TDM
receivers/transmitters.
This SFP supports the following features:
■ Dual Wavelength Bidirectional Transceiver
■ 2488 Mbps Downstream
■
1244 Mbps Upstream
■ PRBS 2 23 -1
■ 1310 nm APD/TIA Burst Mode Receiver
■
1490 nm CW Mode DFB Laser
■ ITU-T G.984.2 Complaint
■ Single 3.3 V DC supply
■ Low Power Consumption
■ 2x10 SFP Package Outline
■ Single Fiber, Full Duplex Operation
■ SC/UPC Optical Receptacle
Applications:
■ Access networks
■ Fiber to the home, curb, office (FTTx)
■ Point to multi point service (P2MP)
♦
ITU-T G.984.2
♦ FSAN Class D
Due to compliance certification requirements, use only pluggable
optics supplied by ADTRAN. ADTRAN cannot certify system
integrity with other pluggable optics.
f
WARNING!
WARNING indicates a hazard which, if
not avoided, could result in death, injury
or serious property damage.
ADTRAN Pluggable Optics
SFP
GPON D OLT
f
CAUTION!
CAUTION indicates a hazard which, if
not avoided, could result in service
interruption, damage to the equipment,
or minor property damage.
Installation
Before installing the equipment, inspect the SFP. If damage has
occurred during shipping, file a claim with the carrier, and then
contact ADTRAN Customer Support. For more information, refer
to the warranty.
To install the SFP into an appropriate module, complete the
following steps:
Do not remove the protective dust cover from the SFP until the
fiber optic cable is ready to be connected.
1. Insert the SFP into the SFP cage on the module. Ensuring
that the latch handle on the SFP is facing upward, slide the
SFP all the way into the SFP cage until there is an audible
"click".
g
NOTE
The latch on the SFP is for removal only. When removing the SFP,
rotate the latch away from the SFP, the SFP should easily slide
out of the cage.
2. Do not remove the protective dust cover until the optical fiber
connection is made.
g
NOTE
ADTRAN recommends that the protective dust cover remain on
whenever the transceiver optical fiber connector is not inserted.
3. Continue the installation and turn-up of the host module
using the instructions in the Quick Start or Job Aid provided
with the module or other system-level documentation
available online at www.adtran.com.
Maintenance
The SFP does not require routine hardware maintenance for
normal operation. ADTRAN does not recommend that repairs be
attempted in the field. Repair services may be obtained by
returning the defective unit to ADTRAN. Refer to the warranty for
further information. Field support for software is provided through
upgrade facilities.
g
NOTES inform the user of additional, but
important, information or features.
October 2021
61442542F1C-13A
P/N: 1442542F1C
NOTE
